Foxconn A74ML 3.0 Series User Manual

1
6

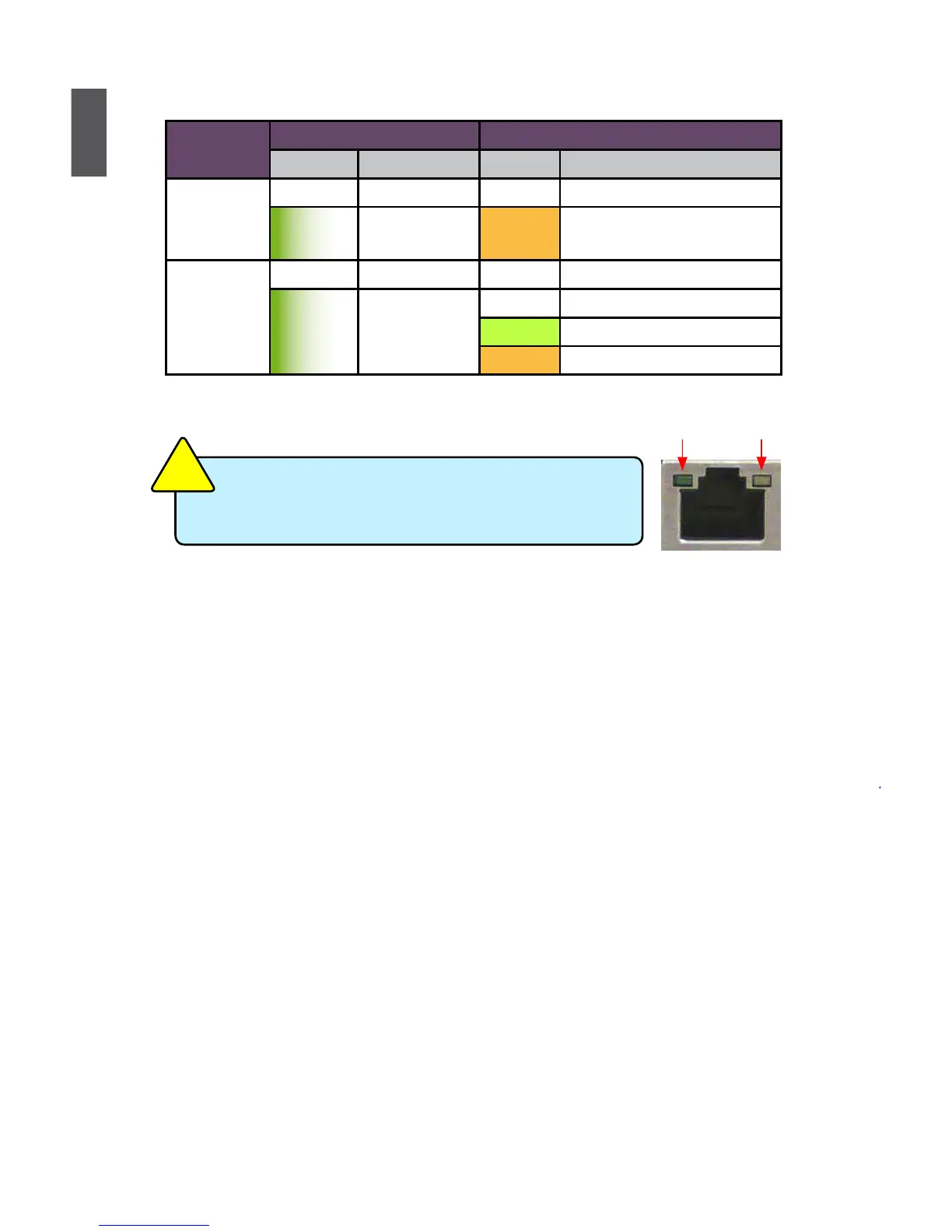

7. RJ-45 LAN Port
The Ethernet LAN port provides Internet connection at up to 10/100/1000Mb/s data rate.
Link
LED
Active
LED
LAN Type
Left: Active Right: Link
Status Description Status Description
100M
Off No Link Off No Link
Green
Blinking
Data Activity Orange 10/100Mb/s Connection
1000M
Off No Link Off No Link
Green
Blinking
Data Activity
Off 10Mb/s Connection
Green 100Mb/s Connection
Orange 1000Mb/s Connection
A74ML 3.0 supports 10/100Mb/s Ethernet.
A74ML-K 3.0 supports 10/100/1000Mb/s Ethernet.
C
A
U
T
I
O
N
!

Foxconn A74ML 3.0 Series Specifications

General

Form Factor	Micro ATX
Memory Type	DDR3
Memory Slots	2 x DIMM
Maximum Memory	8 GB
Storage Interface	4 x SATA 3Gb/s
PS/2	1 x PS/2 Keyboard, 1 x PS/2 Mouse
Video Ports	1 x VGA
Dimensions	244mm x 244mm
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Audio	Realtek ALC662 6-channel HD Audio
LAN	10/100 Ethernet
Power Pin	24-pin ATX, 4-pin ATX 12V
Expansion Slots	1 x PCIe x16, 1 x PCIe x1
