Foxconn A74ML 3.0 Series User Manual

2
16

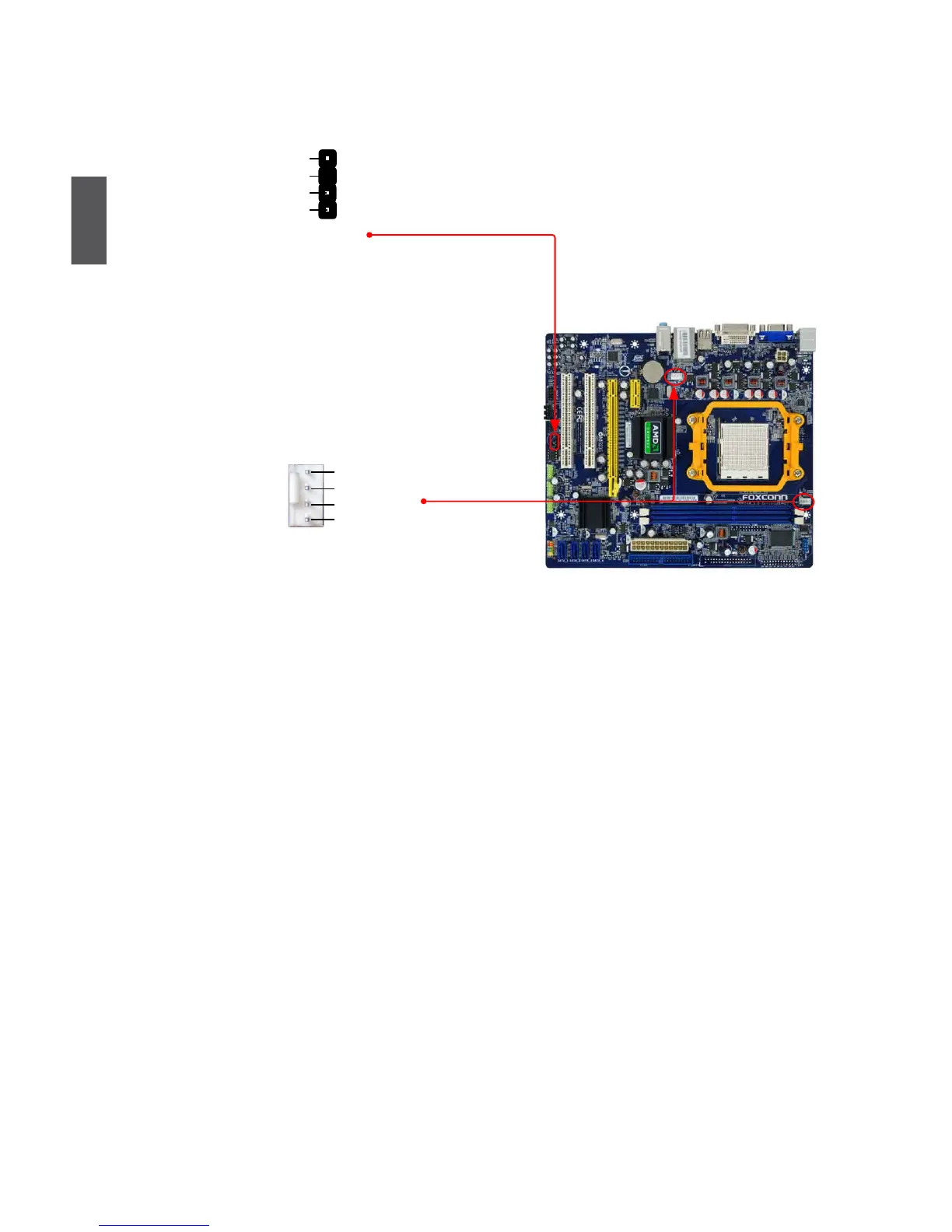

Speaker Connector : SPEAKER
The speaker connector is used to connect speaker of
the chassis.
Fan Connectors : CPU_FAN, SYS_FAN
There are two main fan headers on this motherboard.
The fan speed can be controlled and monitored in “PC
Health Status” section of the BIOS Setup. These fans
can be automatically turned off after the system enters
S3, S4 and S5 sleeping states.
1
CPU_FAN/SYS_FAN
GND
POWER
SENSE
CONTROL
NC
SPKJ
EMPTY
SPEAKER
SPKJ
1
2
3
4

Foxconn A74ML 3.0 Series Specifications

General

Form Factor	Micro ATX
Memory Type	DDR3
Memory Slots	2 x DIMM
Maximum Memory	8 GB
Storage Interface	4 x SATA 3Gb/s
PS/2	1 x PS/2 Keyboard, 1 x PS/2 Mouse
Video Ports	1 x VGA
Dimensions	244mm x 244mm
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Audio	Realtek ALC662 6-channel HD Audio
LAN	10/100 Ethernet
Power Pin	24-pin ATX, 4-pin ATX 12V
Expansion Slots	1 x PCIe x16, 1 x PCIe x1
