Foxconn A74ML 3.0 Series User Manual

4
52

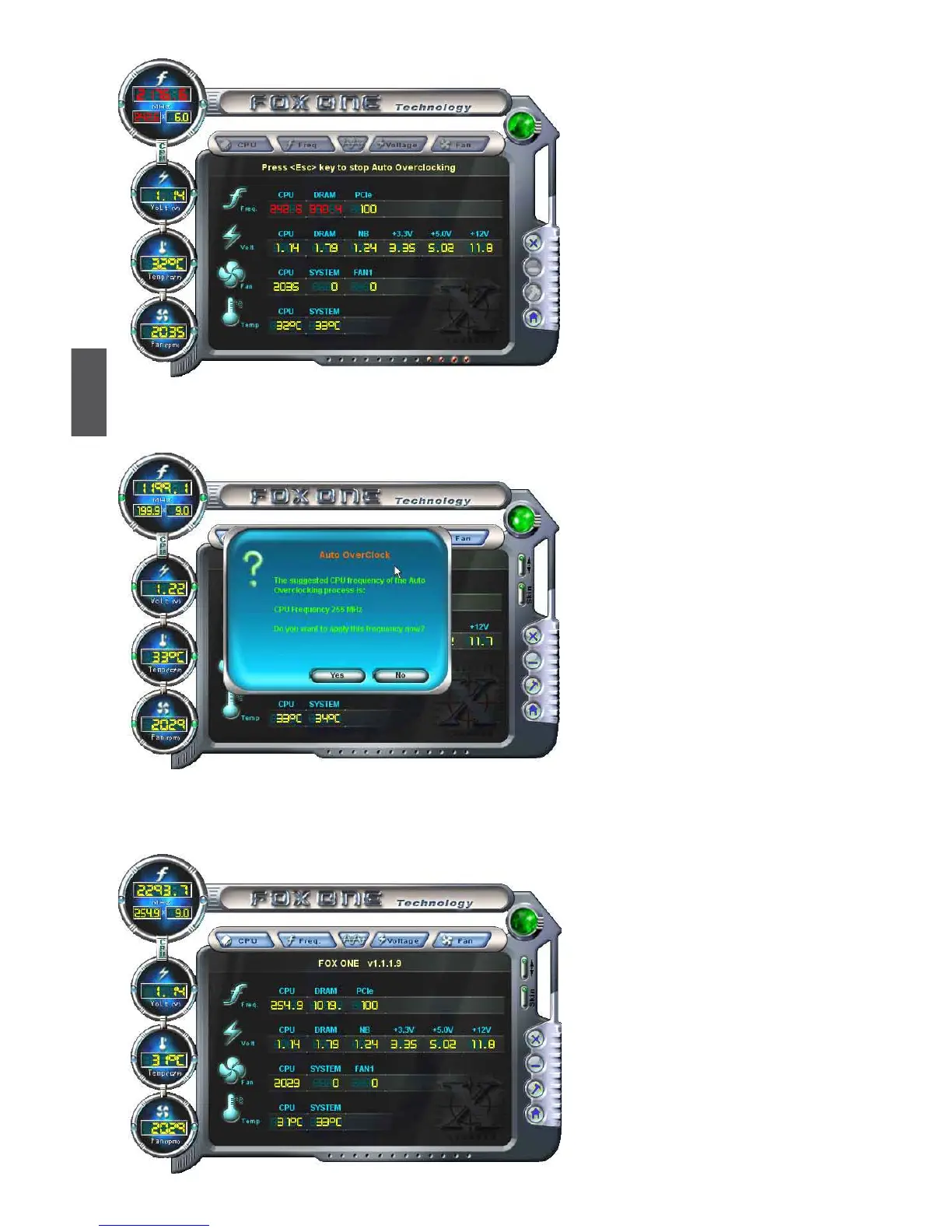

You can see the system is
raising CPU clock until the
system hangs.
Push RESET button on the front
panel of your system to restart
the computer.
Run FOX ONE program again,
it will inform you the previous
test found that 255MHz is the
recommended CPU clock for
your system.
Click Yes to apply it to your
system.
Now, your system is running at
a CPU clock of 255MHz.

Foxconn A74ML 3.0 Series Specifications

General

Form Factor	Micro ATX
Memory Type	DDR3
Memory Slots	2 x DIMM
Maximum Memory	8 GB
Storage Interface	4 x SATA 3Gb/s
PS/2	1 x PS/2 Keyboard, 1 x PS/2 Mouse
Video Ports	1 x VGA
Dimensions	244mm x 244mm
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Audio	Realtek ALC662 6-channel HD Audio
LAN	10/100 Ethernet
Power Pin	24-pin ATX, 4-pin ATX 12V
Expansion Slots	1 x PCIe x16, 1 x PCIe x1
