Foxconn A74ML 3.0 Series User Manual

4
55

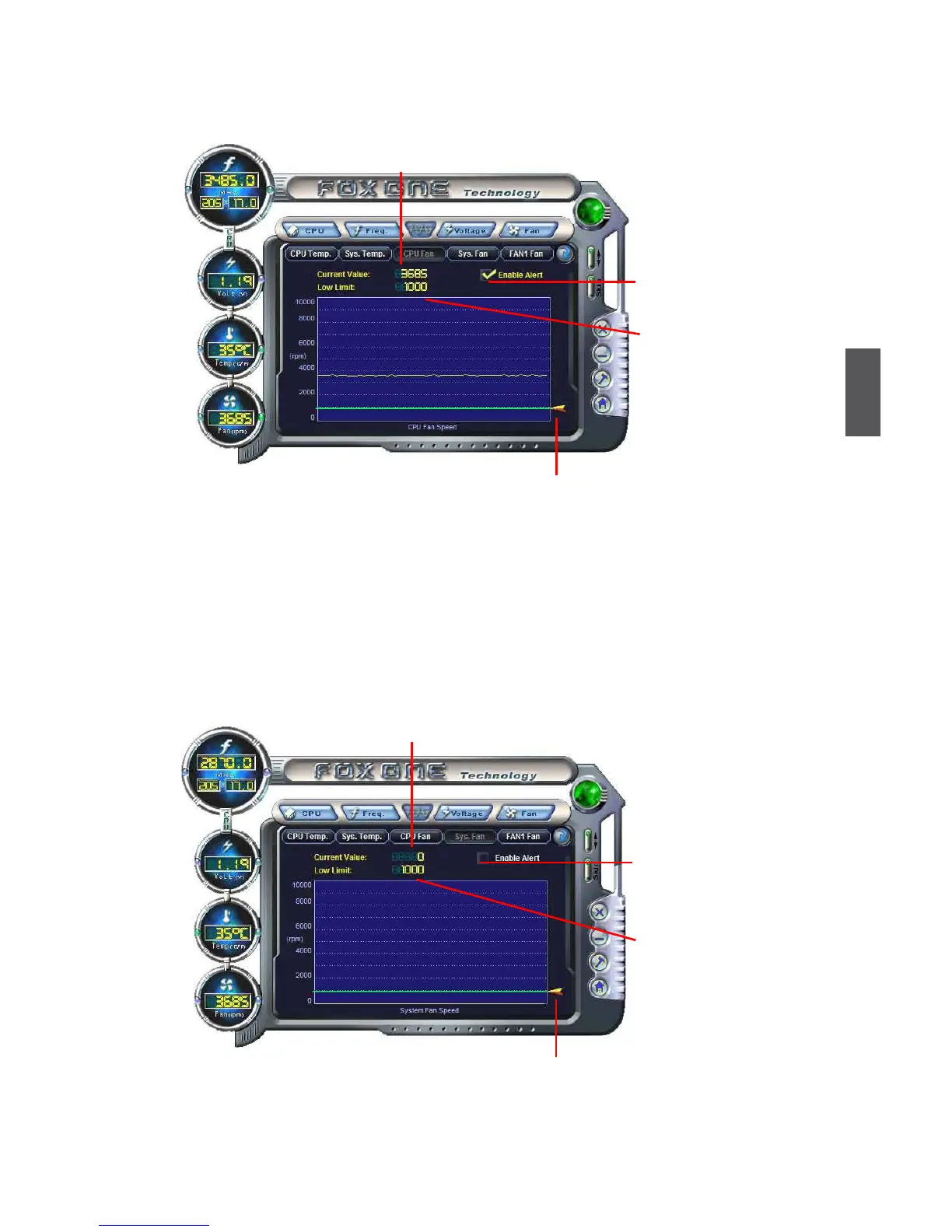

4.3 Limit Setting - CPU Fan
This page lets you to set CPU fan low limit rpm and enable the alert function.
4.4 Limit Setting - System Fan
This page lets you to set system fan low limit rpm and enable the alert function.
Set low limit rpm by
dragging the lever
Show current CPU
fan rpm value
Enable alert function
when the CPU fan runs
slower than the low
limit rpm value
Show current low limit
rpm value of CPU fan
Set low limit rpm by
dragging the lever
Show current system
fan rpm value
Enable alert function
when the system fan
runs slower than low
limit rpm value
Show current low limit
rpm value of system
fan

Foxconn A74ML 3.0 Series Specifications

General

Form Factor	Micro ATX
Memory Type	DDR3
Memory Slots	2 x DIMM
Maximum Memory	8 GB
Storage Interface	4 x SATA 3Gb/s
PS/2	1 x PS/2 Keyboard, 1 x PS/2 Mouse
Video Ports	1 x VGA
Dimensions	244mm x 244mm
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Audio	Realtek ALC662 6-channel HD Audio
LAN	10/100 Ethernet
Power Pin	24-pin ATX, 4-pin ATX 12V
Expansion Slots	1 x PCIe x16, 1 x PCIe x1
