Foxconn FlamingBlade GTI - Back Panel Connectors

6
1
1-3 Back Panel Connectors
1. PS/2 Keyboard Port
Use the uper port (purple) to connect a PS/2 keyboard.
2. USB Ports
The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices such as an
USB keyboard/mouse, USB printer, USB ash drive and etc.
3. Clear CMOS Button(Only for Flaming Blade)
Onboard Clear CMOS button is located directly on the motherboard PCB, so you can easily clear
CMOS after failed overclocking attempts.
External SATA
Ports
USB Ports
LAN Ports
PS/2 Keyboard Port
Optical
S/PDIF Out
1 7
Audio PortsUSB Ports
Line Out
Microphone In
Subwoofer
Rear Speaker
Side Speaker
Line In
5
2
2
64

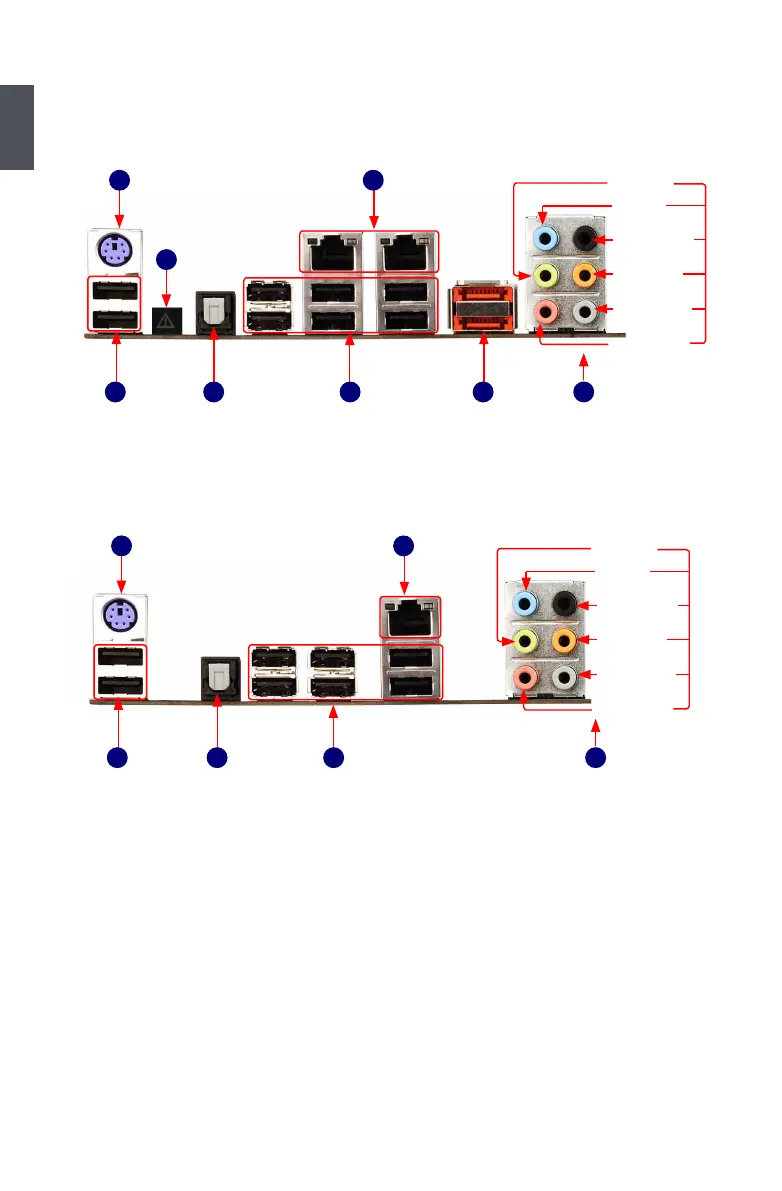

Back Panel of Flaming Blade
Back Panel of Flaming Blade GTI
USB Ports
LAN Port
PS/2 Keyboard Port
Optical
S/PDIF Out
1 7
Audio PortsUSB Ports
Line Out
Microphone In
Subwoofer
Rear Speaker
Side Speaker
Line In
2
2
64
Clear CMOS
Button
3
