19
2

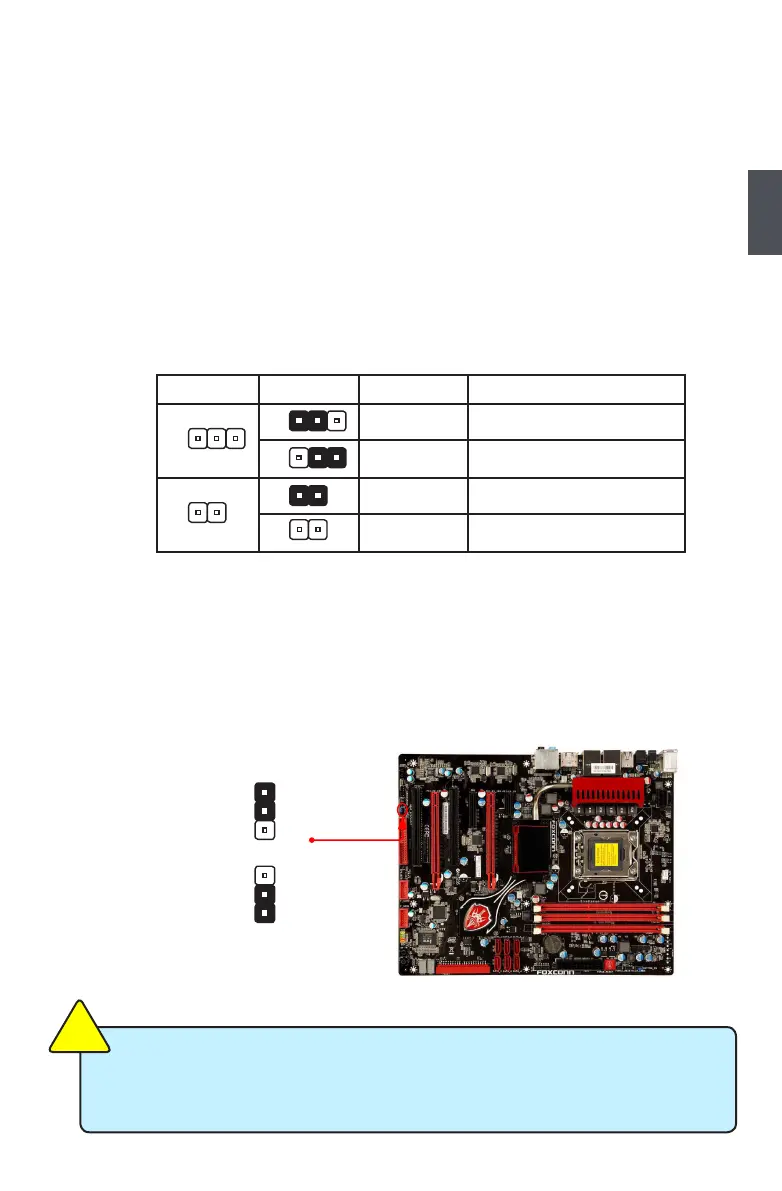

2-5 Jumpers
For some features needed, users can change the jumper settings on this motherboard to modify them.
This section explains how to use the various functions of this motherboard by changing the jumper
settings. Users should read the following content carefully prior to modifying any jumper setting.
Description of Jumpers
1. For any jumper on this motherboard, pin 1 can be identied by the bold silkscreen next to it.
However, in this manual, pin 1 is simply labeled as “1”.
2. The following table explains different types of the jumper settings. "Closed" means placing a jumper
cap on the two pins to temporarily short them. The shorting can also be done by touching two
pins by a screwdriver for a few seconds, but using jumper cap is recommended. It can prevent
hazardous ESD (Electrical Static Discharge) problem.
Discharge Battery Jumper: VBAT_DISCHARGE
Resetting the CMOS isn’t always good enough since in more recent chipset versions some congu-
ration settings stored in the Southbridge will not be reset or deleted by a CMOS reset. Additionally
the CMOS reset can take up to several minutes depending on the board design and capacitance.
To facilitate a complete conguration reset this jumper can be used to discharge the battery. The
effect is identical to removing the battery. The result is a faster and complete CMOS and Southbridge
conguration reset.
VBAT_DISCHARGE
1
2
3
Normal
(Default)
1
2
3
VBAT_DISCHARGE
Disconnect the power cable before adjusting the jumper settings.
Do not discharge the battery while the system is turned on.
Only suggest to use the jumper if a normal CMOS reset did not work.
C
A
U
T
I
O
N
!
Jumper Diagram Denition Description
1-2 Set Pin 1 and Pin 2 closed
2-3 Set Pin 2 and Pin 3 closed
Closed Set two pins closed
Opened Set two pins opened
1
1
1
1
1
1
