2. HW Monitor

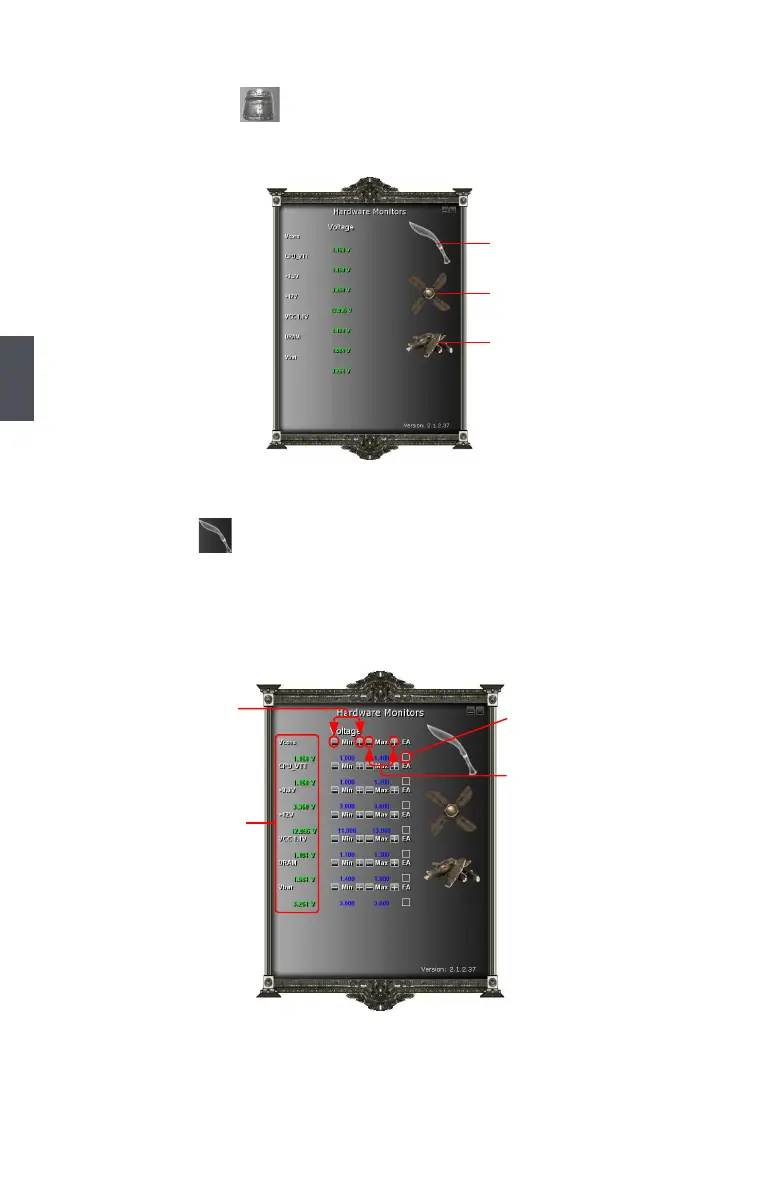

Click on "HW Monitor" icon , its panel appears. By moving the mouse on the voltage icon,
it will display voltage information. Move the mouse on fan or temperature icon will show relative
information accordingly.
2.1 HW Monitor - Voltage
Click on voltage icon to get into the voltage setting menu. It allows you to set the low/high
limits of Vcore, CPU_VTT, +3.3V, +12V, VCC 1.1V, DRAM and Vbat voltages, and to enable the
alert function. If the current voltage value is lower than the low limit or higher than the high limit,
then a buzzer sounds.
Click these
buttons to set the
low limit voltage
Click these
buttons to set the
high limit voltage
Click it to enable
the alert function
Show current
voltages
Voltage icon
Fan icon
Temperature icon
To Next Page
