Foxtech DA16 Radio Control System User Manual
©
2018 FOXTECH All Rights Reserved
9
Get Ready to Use DA16
Get to Know Your DA16

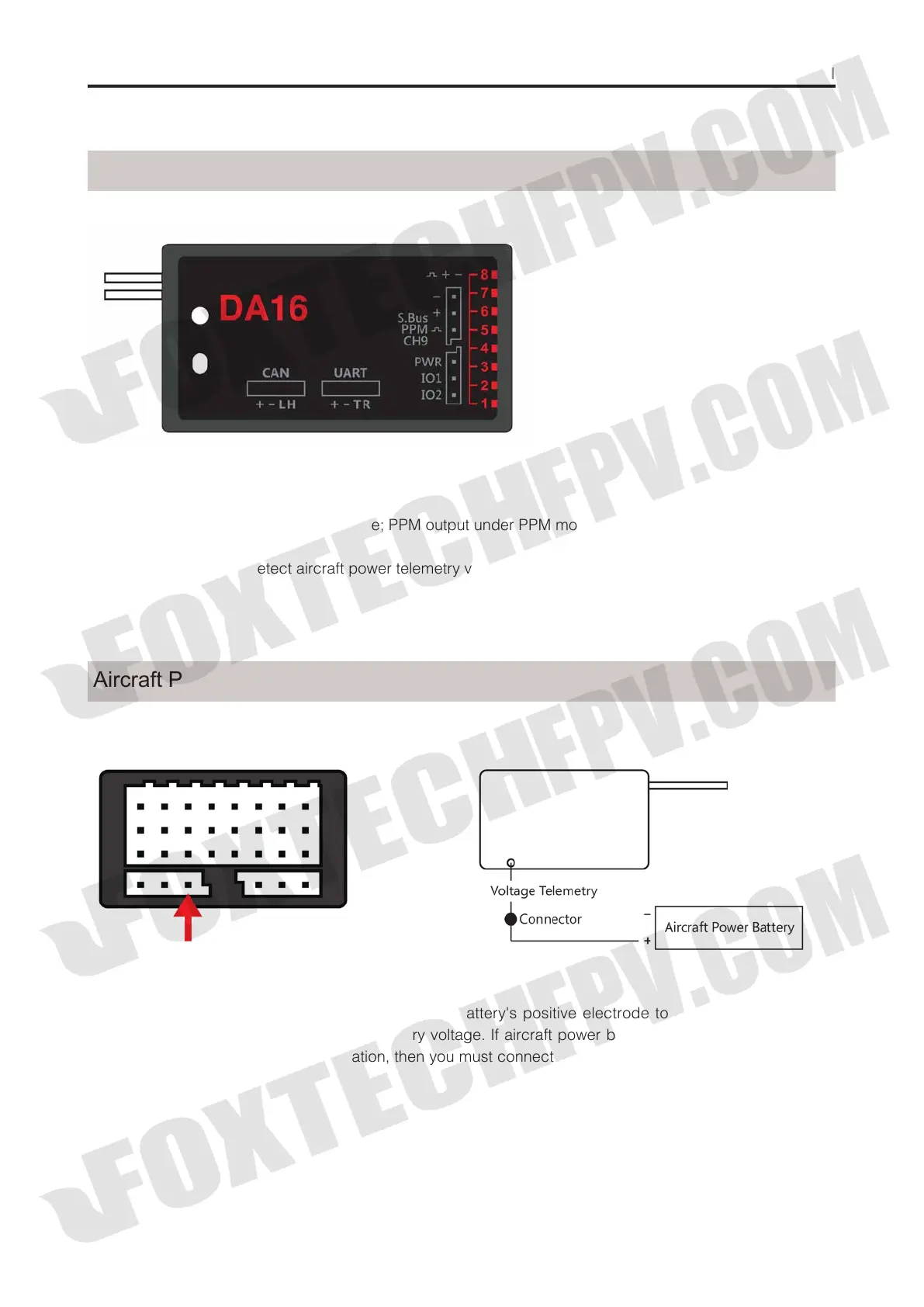

Aircraft Power Battery
Pin 1-8: PWM output for channel 1-8.
Pin 9: Channel 9 output under PWM mode; PPM output under PPM mode; SBUS output under SBUS mode.
Pin 10: Extending ports.
Pin POW: Single pin to detect aircraft power telemetry voltage. Voltage detecting range: 1-12S LiPo.
Please follow the legend to connect aircraft power battery's positive electrode to sky station's POW pin,
sky station starts to return aircraft power battery voltage. If aircraft power battery doesn't share a common
ground with flight controller and sky station, then you must connect power battery negative electrode to any
pin on sky station.
