The Effects
34
RIGHT HI LEVEL - Sets the output level of the right input highpass filter.
LEFT LOW PAN - Sets the panning of the left input lowpass filter.
LEFT HI PAN - Sets the panning of the left input highpass filter.
RIGHT LOW PAN - Sets the panning of the right input lowpass filter.
RIGHT HI PAN - Sets the panning of the right input highpass filter.
Resonator (Ultra Only)

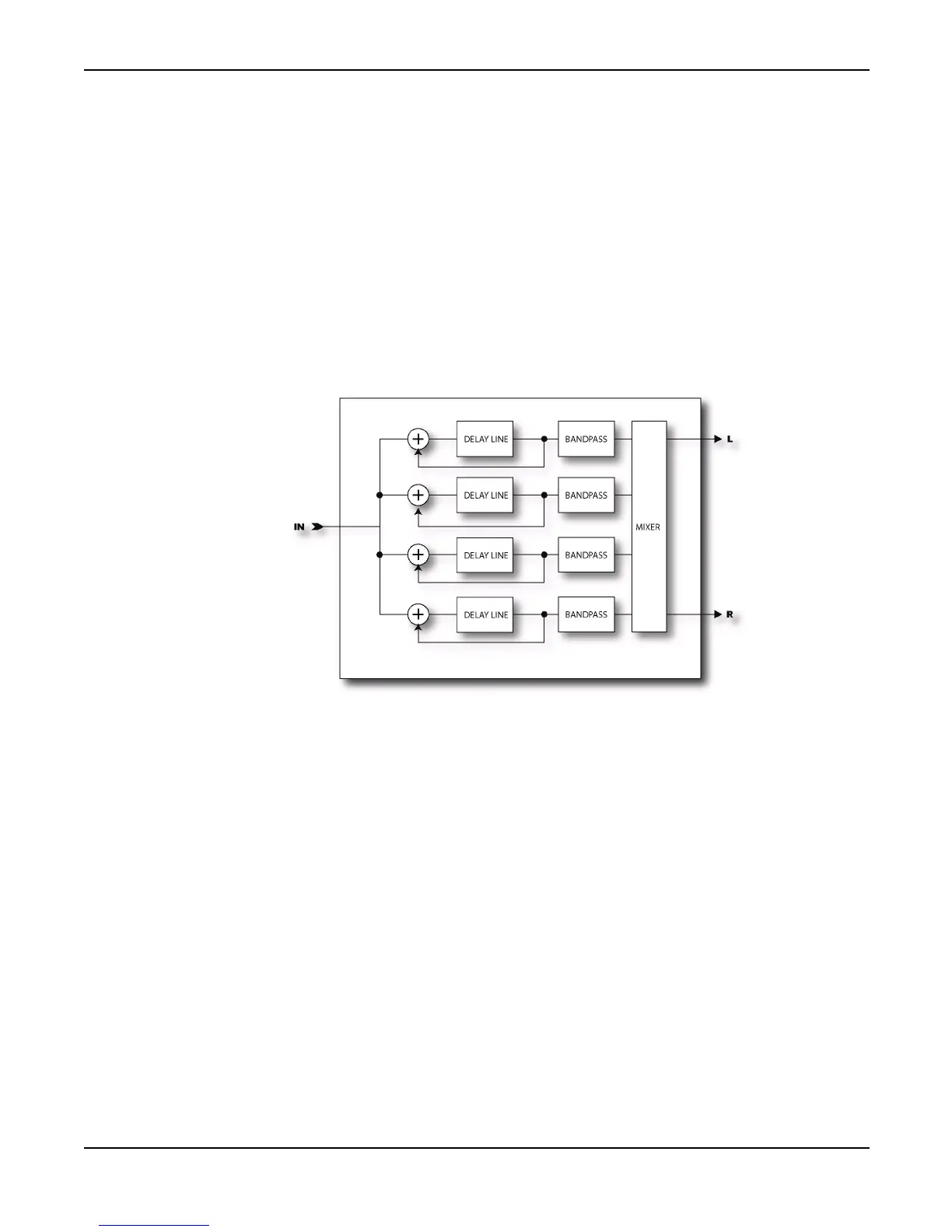

The Axe-Fx Ultra Resonator is four resonant comb filters in parallel. By tuning the comb filters a
metallic or resonant timbre can be achieved from normally non-musical signals. The Resonator
works best on transient signals like speech or percussion but can also be used to add unique
character to musical inputs.
In series with each comb filter is a bandpass filter tuned to the same frequency. The position of these
filters can be before or after the comb filters. They are shown in the after position in the diagram
above.
The Resonator can operate in one of two modes: Manual and Chordal. In manual mode control of
the filter frequencies is done manually. In chordal mode a base frequency is set and a chord type
chosen. The filter frequencies are then set to match the type of chord chosen.
Parameters
MODE - Selects between the two modes of operation: manual and chordal.
INGAIN - Sets the level into the effect. Since the filters are very resonant overload can occur. This
control can be used to reduce the levels.
