Frakco AQUA MAGIC Plus - Page 42

Page 42
1
2
3
• Operating Pressures:
20 PSI Minimum / 125 PSI Maximum
• Operating Temperatures:
40°F Minimum / 110°F Maximum
10
11
Order No. V3098 • Description: NO HARDWATERBYPASS 2INMXF NPT or
Order No. V3098BSPT • Description: NO HARDWATERBYPASS 2INMXF BSPT

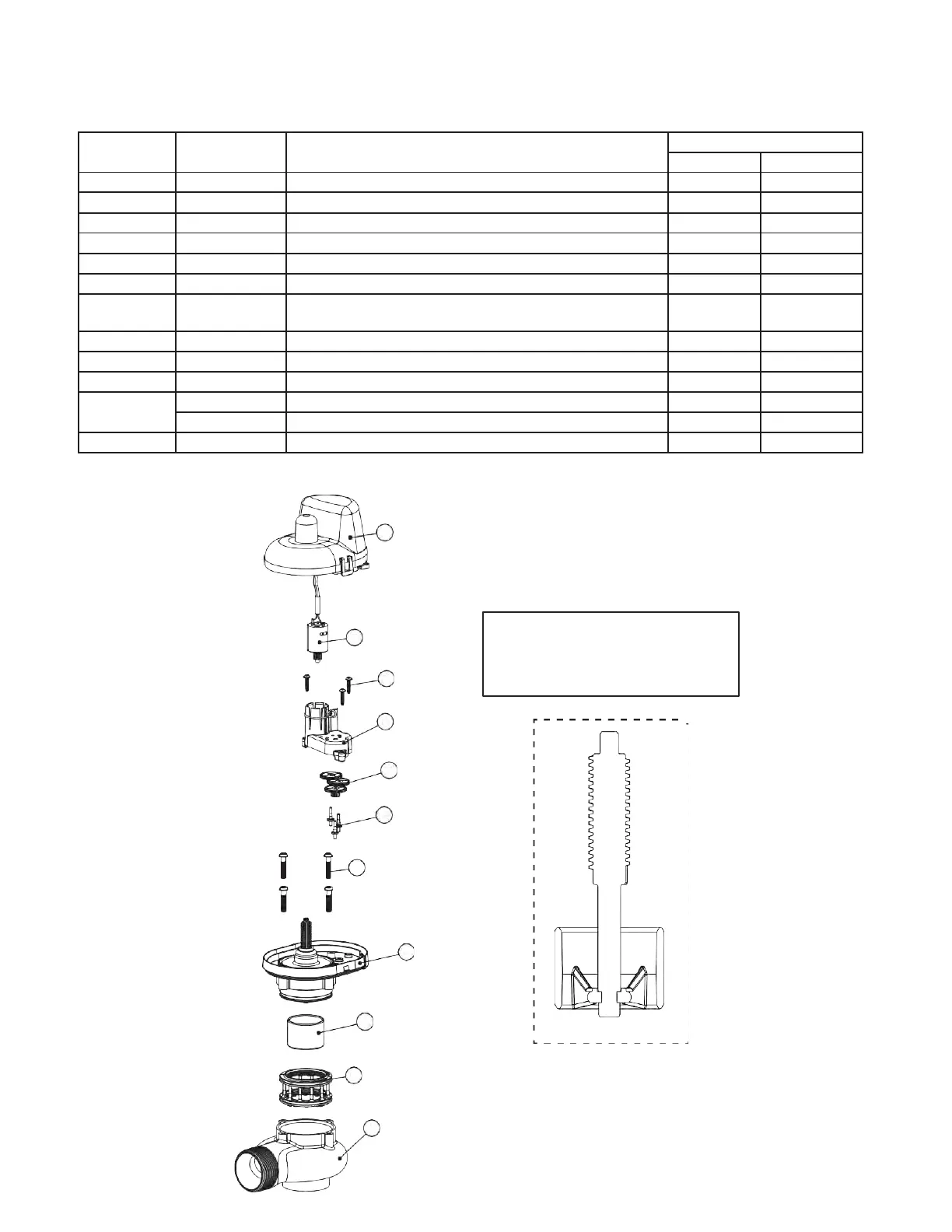

Drawing No. Order No. Description
Quantity
V3098
V3098BSPT
1
V3073
MAV/NOHWBY COVER ASY
1
1
2
V3476
AM MOTOR ASY 8 FT
1
1
3
V3592
SCREW #8-1 PHPN T-25 SS
3
3
4
V3262-01
AM1.5&2ALT/2BY REDUCGEARCVRASY
1
1
5
V3110-01
AM1 DRIVE REDUCING GEAR PLAIN
3
3
6
V3264
AM2 BYPASS REDUCTION GEAR AXLE
3
3
7 V3642
SCREW 1/4-20 X 1 1/4 BHSCS SS
(5/32” HEX ALLEN WRENCH REQUIRED)
4 4
8
V3078
MAV/NOHWBY 2 DRIVE ASY
1
1
9
V3634-01
MAV/NOHWBY 2 PISTON
1
1
10
V3887
AM2 NHWBY STACK ASY
1
1
11
V3828-01
AM2 NHWBY BODY M X F NPT
1
N/A
V3828BSPT-01
AM2 NHWBY BODY M X F BSPT
N/A
1
Not Shown
V3805
STRAIN RELIEF COVER KIT
1
1
Piston Orientation
8
4
5
7
6
9
