Frakco AQUA MAGIC Plus - Page 41

Page 41

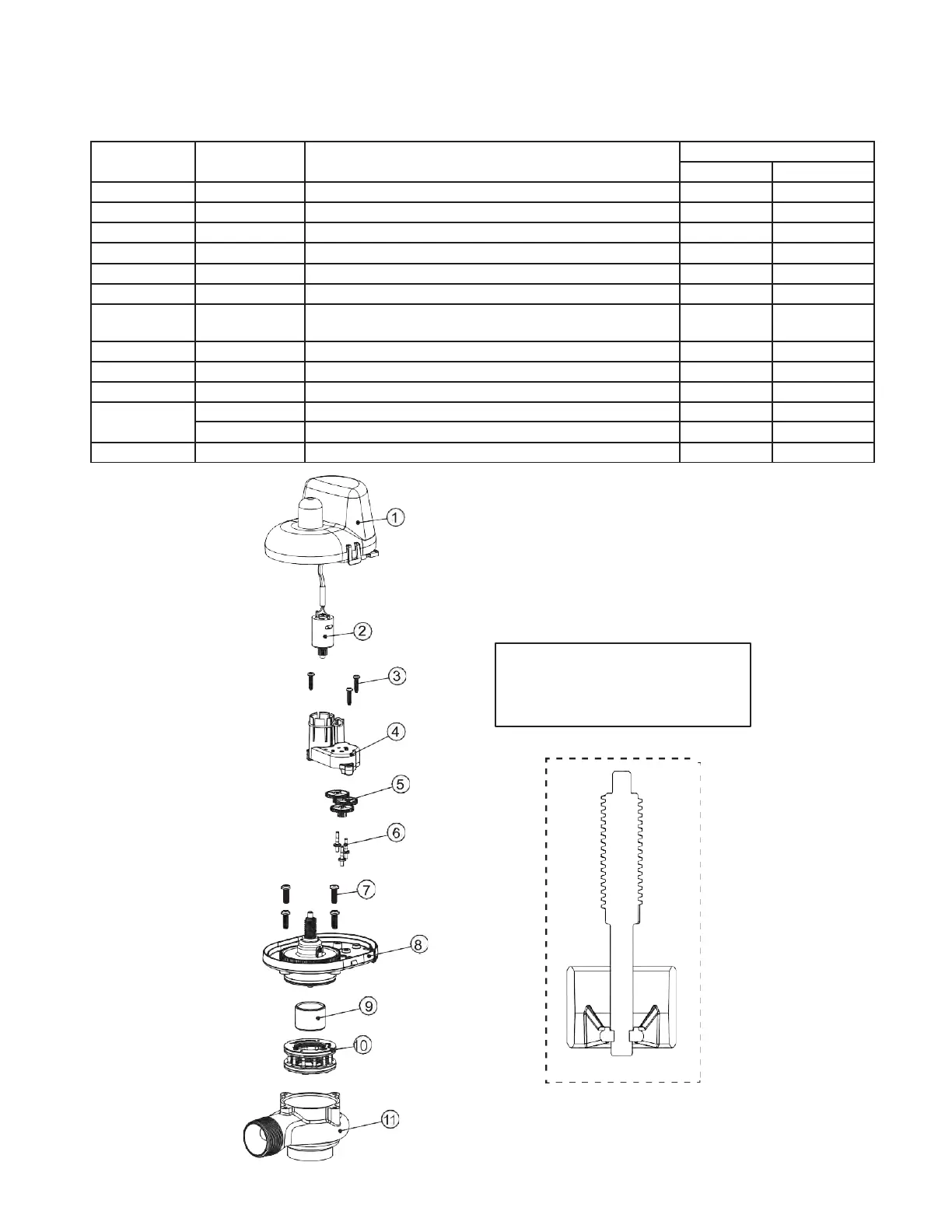

Order No. V3097 • Description: NO HARDWATERBYPASS 15INMXF NPT or
Order No. V3097BSPT • Description: NOHARDWATERBYPASS 15INMXF BSPT
Drawing No. Order No. Description
Quantity
V3097
V3097BSPT
1
V3073
MAV/NOHWBY COVER ASY
1
1
2
V3476
AM MOTOR ASY 8 FT
1
1
3
V3592
SCREW #8-1 PHPN T-25 SS
3
3
4
V3262-01
AM1.5&2ALT/2BY REDUCGEARCVRASY
1
1
5
V3110-01
AM1 DRIVE REDUCING GEAR PLAIN
3
3
6
V3264
AM2 BYPASS REDUCTION GEAR AXLE
3
3
7 V3527
SCREW 1/4-20 X 3/4 BHSCS SS
(5/32” HEX ALLEN WRENCH REQUIRED)
4 4
8
V3072
MAV/NOHWBY 1/125/15 DRIVE ASY
1
1
9
V3506-01
MAV/NOHRD 1/125/15 PISTON
1
1
10
V3886
AM15 NHWBY STACK ASY
1
1
11
V3832-01
AM15 NHWBY BODY M X F NPT
1
N/A
V3832BSPT-01
AM15 NHWBY BODY M X F BSPT
N/A
1
Not Shown
V3805
STRAIN RELIEF COVER KIT
1
1
Piston Orientation
• Operating Pressures:
20 PSI Minimum / 125 PSI Maximum
• Operating Temperatures:
40°F Minimum / 110°F Maximum
