Page 40

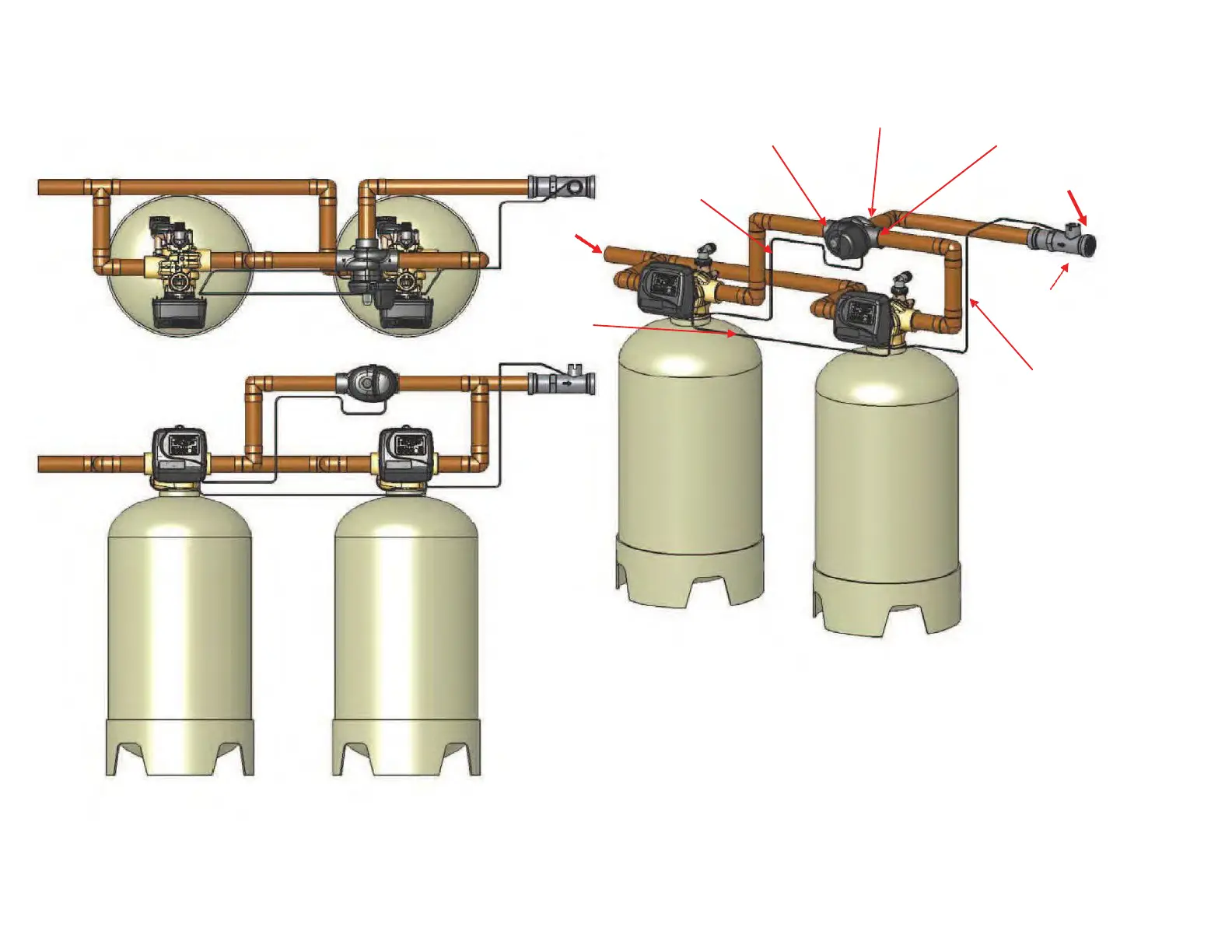

V3076 MAV and AM2 valves shown. Diagram is typical for
AM1.5, AM2L, or AM2 valves using V3071 or V3076 piston
style MAV’s and regenerating with hard water.
MAV “C” Port
MAV “A” Port MAV “B” Port
Inlet
MAV Motor Wire
Outlet
Communication
Cable
Meter
ALT A
ALT B
Meter Cable
Note: These drawings are for reference. Installer
needs to install inlet & outlet isolation ball valves for
each control valve and a three-valve bypass for the
system. It is recommended to have some unions in the
plumbing. Meter should be mounted horizontally or in
a downflow vertical position to reduce bearing wear.
