• Operating Pressures:
20 PSI Minimum / 125 PSI Maximum
• Operating Temperatures:
40°F Minimum / 110°F Maximum

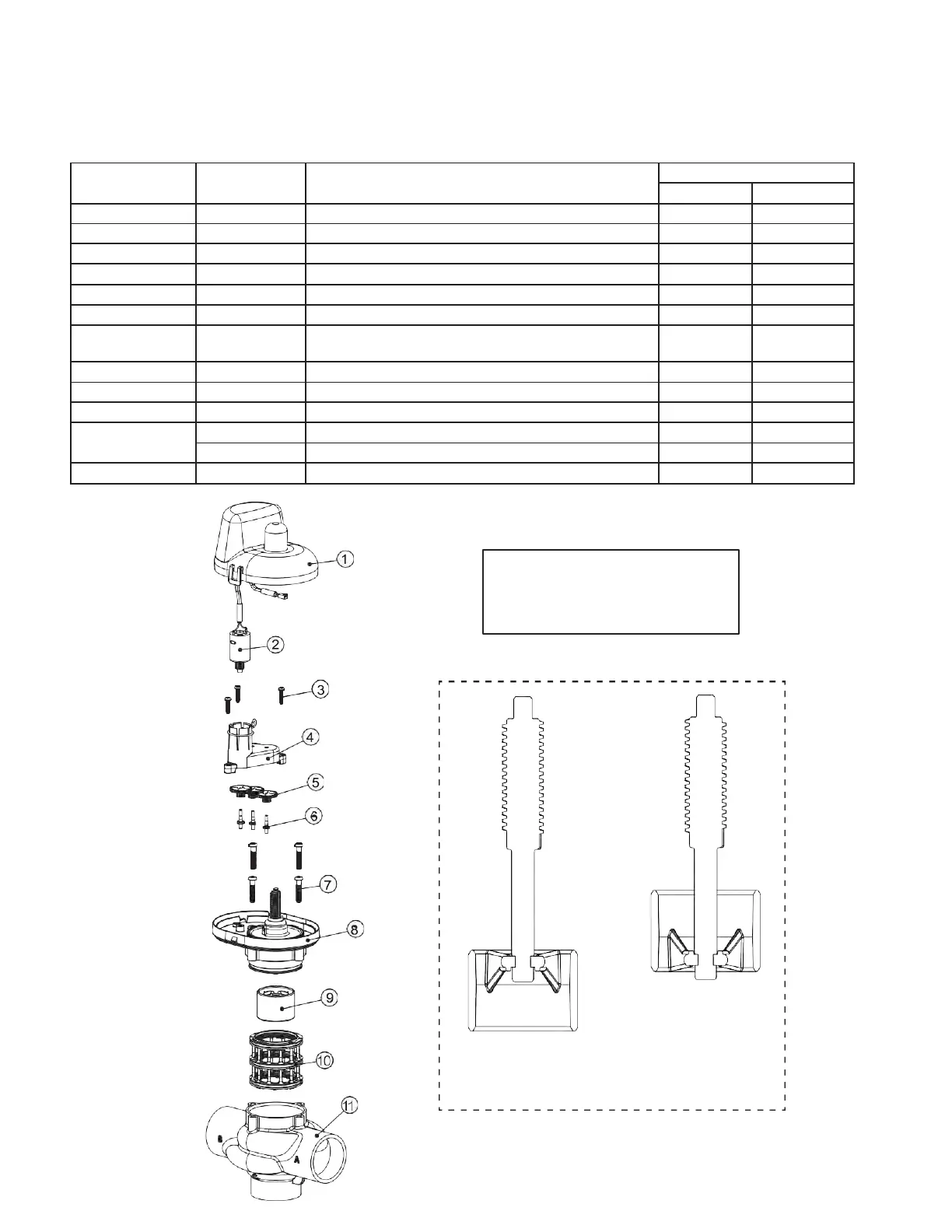

2” Piston Style MAV's (See Installation Instructions on Motorized Alternating Valves)
Order No. V3076 • Description: MOTOR ALT VLV 2 NPT REV2 or
Order No. V3076BSPT • Description: MOTOR ALT VLV 2 BSPT REV2
Drawing No. Order No. Description
Quantity
V3076
V3076BSPT
1
V3073
MAV/NOHWBY COVER ASY
1
1
2
V3476
AM MOTOR ASY 8 FT
1
1
3
V3592
SCREW #8-1 PHPN T-25 SS
3
3
4
V3262-01
AM1.5&2ALT/2BY REDUCGEARCVRASY
1
1
5
V3110-01
AM1 DRIVE REDUCING GEAR PLAIN
3
3
6
V3264
AM2 BYPASS REDUCTION GEAR AXLE
3
3
7 V3642
SCREW 1/4-20 X 1 1/4 BHSCS SS
(5/32” HEX ALLEN WRENCH REQUIRED)
4 4
8
V3078
MAV/NOHWBY 2 DRIVE ASY
1
1
9
V3634-01
MAV/NOHWBY 2 PISTON
1
1
10
V3077
AM2 MAV STACK ASY
1
1
11
V3633-01
AM2 MAV BODY NPT
1
N/A
V3633-01BSPT
AM2 MAV BODY BSPT
N/A
1
Not Shown
V3474
AM ALT CONNECT CORD 8FT BLK
1
1
Piston Orientation 2
No
Hard Water Bypass Valve
Configurations.
Piston Orientation 1
Motorized
Alternating Valve
and
No Hard Water Bypass
Valve Configurations.
