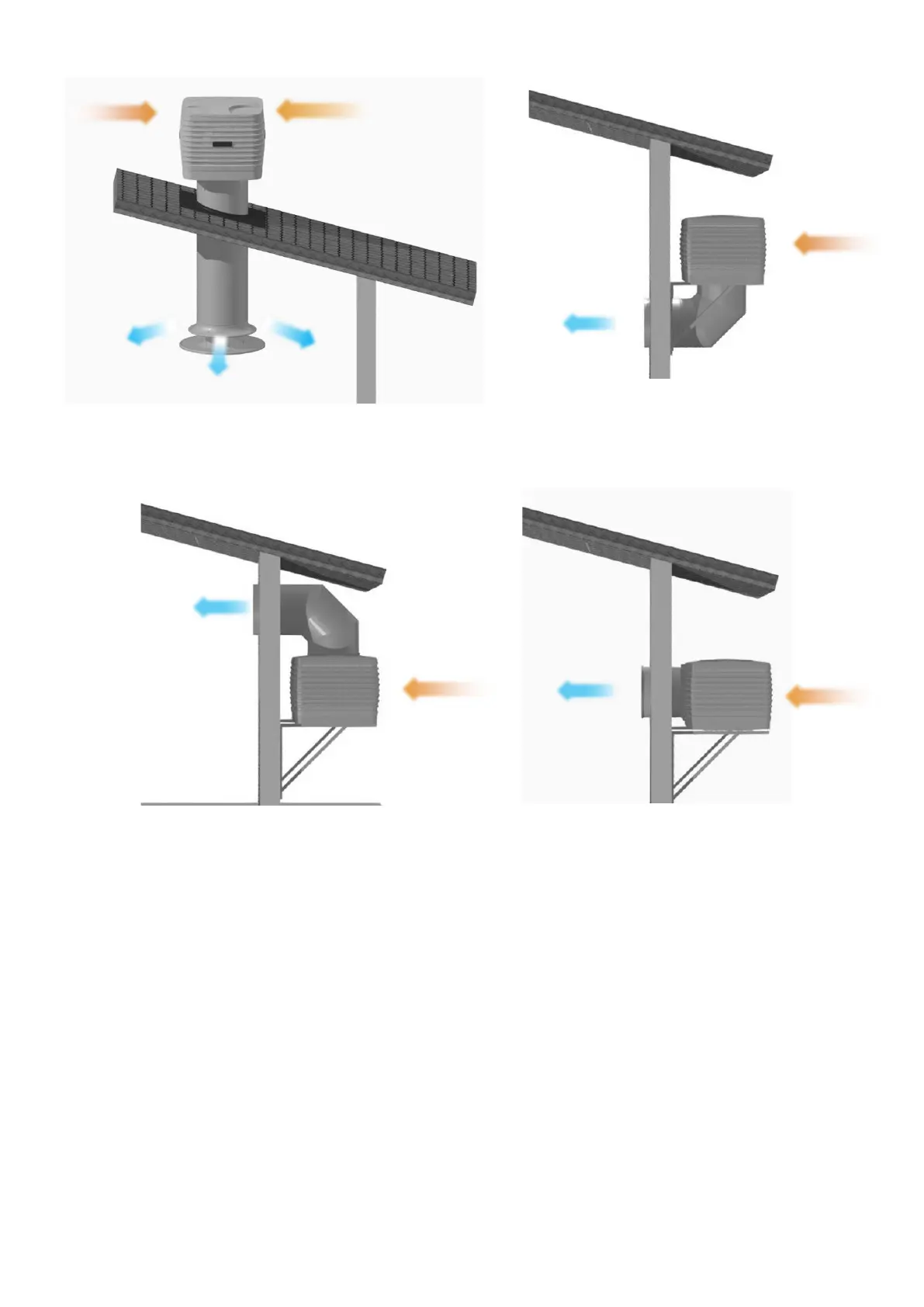

Fig. 2.2.1
BT (bottom air outlet)
ROOF installation
Fig. 2.2.2
BT (bottom air outlet)
WALL installation
Fig. 2.2.3
TP (air outlet from above)
WALL installation
Fig. 2.2.4
SD (side air outlet)
WALL installation
Further indications regarding installation
procedures, system sizing, available accessories,
etc. are contained in the Design and Installation
Guidelines, to which you are referred for any
further details.
