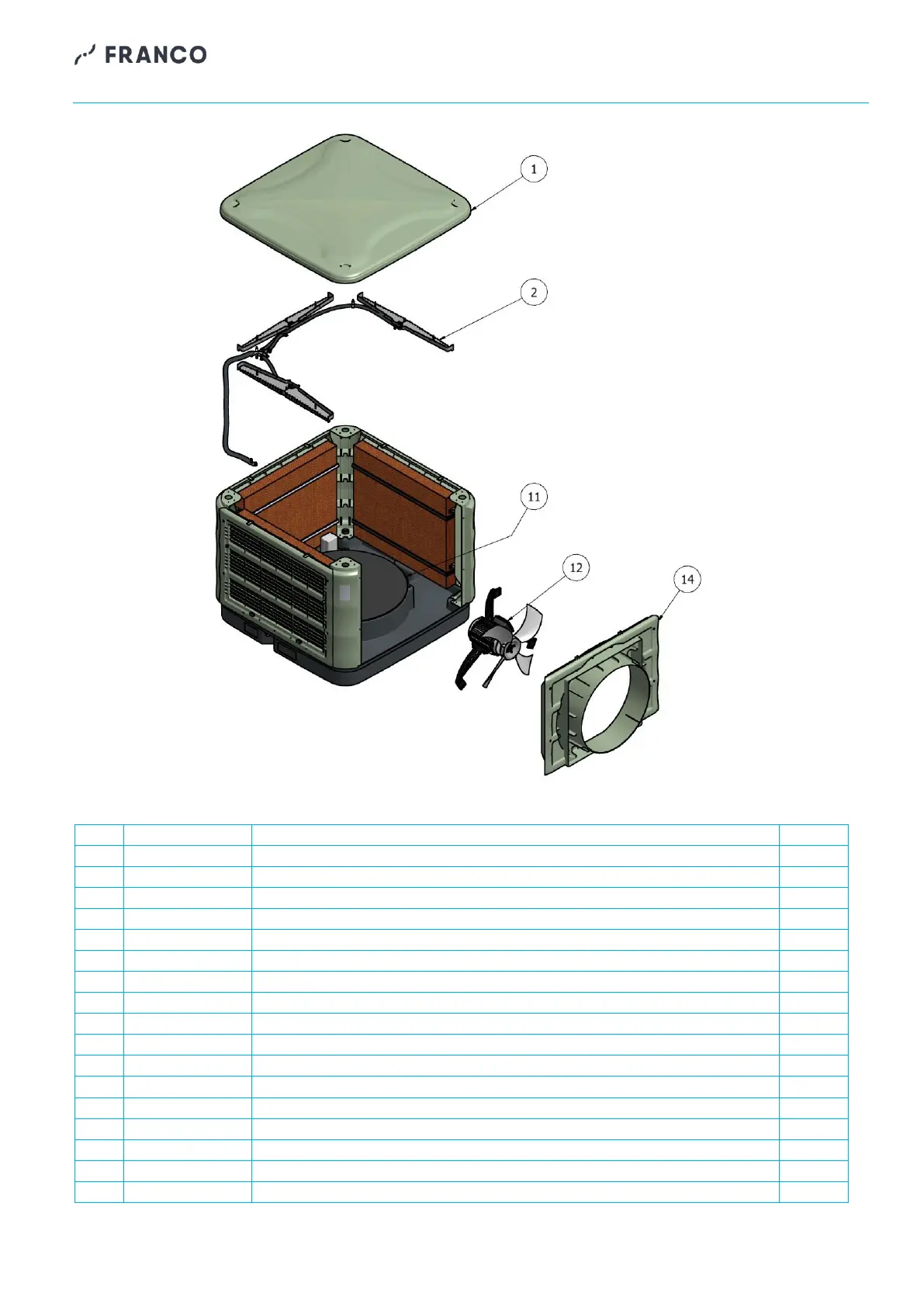

PRIMO SD
Pos.
Part No.
Description
Qty.
11
2901301
BOTTOM OUTLET COVER
1
12
2901600
MOTOR 1~ 230V 50Hz 0.75kW with cable and connector
1
12
2901605
MOTOR 1~ 230V 50Hz 1.1kW with cable and connector
1
12
2901610
MOTOR 3~ 400V 50Hz 0.75kW with cable and connector
1
12
2901615
MOTOR 3~ 400V 50Hz 1.1kW with cable and connector
1
12.1
2901080
MOTOR BRACKET
3
12.2
6001013
SCREW TE M8x25 motor bracket fixing
6
12.3
6003053
WASHER GROWER Ø8 motor bracket fixing
6
12.4
6003019
FLAT WASHER Ø8x16 motor bracket fixing
6
12.5
6004004
NUT M8 DIN 934 motor bracket fixing
6
12.6
6004154
WASHER GROWER Ø8 DIN 127B motor bracket fixing
6
12.7
6004127
FLAT WASHER 8.4x24 DIN 9021 motor bracket fixing
6
13
5104010
FAN Ø550 for motor 0.75kW 50Hz version SD
1
13.1
6001259
SCREW TE 8x25 DIN 933 motor-fan fixing
1
13.2
6004127
WASHER 8.4x24 DIN 9021 motor-fan fixing
2
13.3
6003015
WASHER 8x40 DIN9240 motor-fan fixing
1
14
2902050
SIDE AIR OUTLET PANEL with inserts and caps
1
