FRANCO PRIMO - Primo Tp

PRIMO Instruction Manual
27

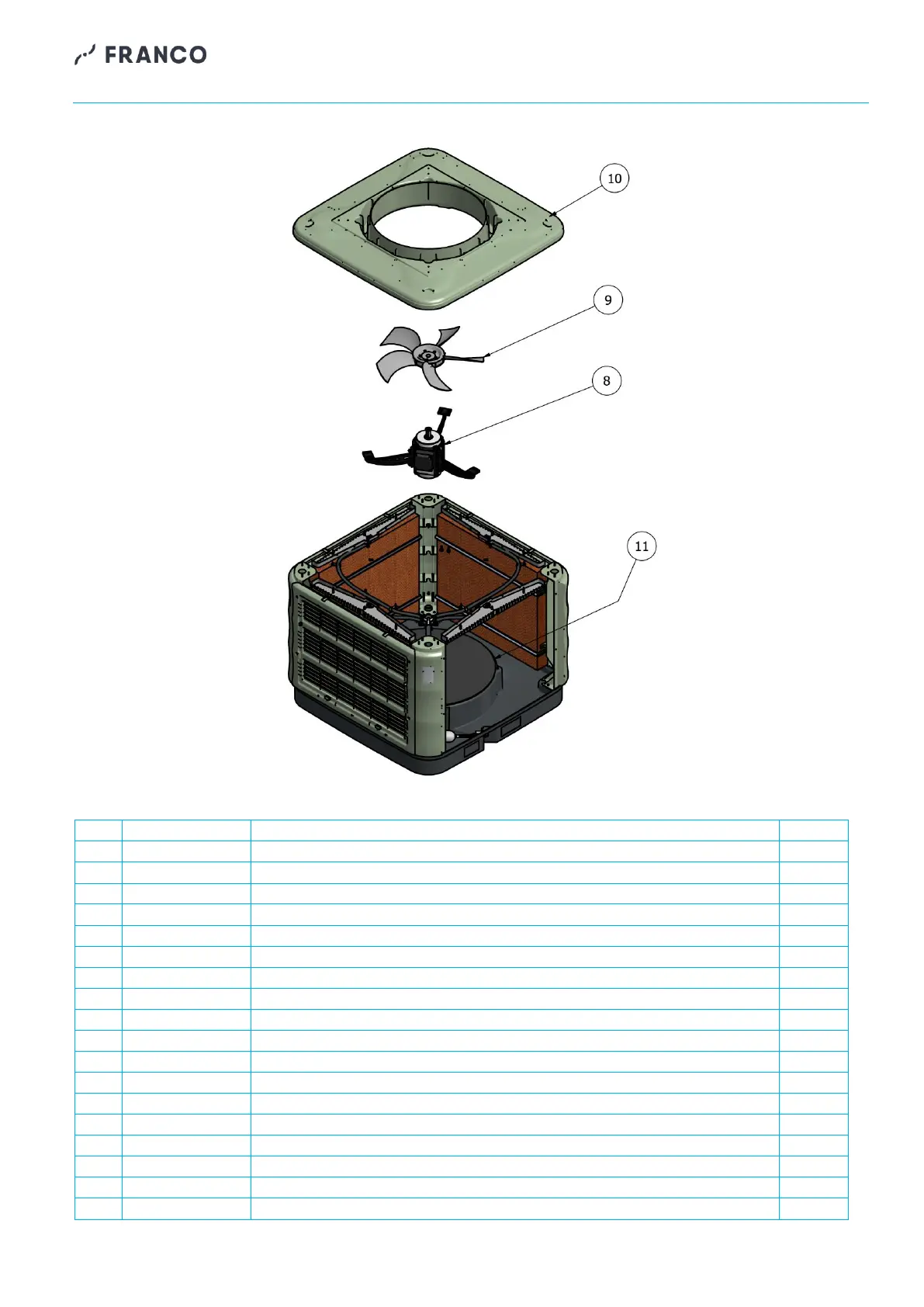

PRIMO TP
Pos.
Part No.
Description
Qty.
8
2901600
MOTOR 1~ 230V 50Hz 0.75kW with cable and connector
1
8
2901605
MOTOR 1~ 230V 50Hz 1.1kW with cable and connector
1
8
2901610
MOTOR 3~ 400V 50Hz 0.75kW with cable and connector
1
8
2901615
MOTOR 3~ 400V 50Hz 1.1kW with cable and connector
1
8.1
2901080
MOTOR BRACKET
3
8.2
6001013
SCREW TE M8x25 motor bracket fixing
6
8.3
6003053
WASHER GROWER Ø8 motor bracket fixing
6
8.4
6003019
FLAT WASHER Ø8x16 motor bracket fixing
6
8.5
6004004
NUT M8 DIN 934 motor bracket fixing
6
8.6
6004154
WASHER GROWER Ø8 DIN 127B motor bracket fixing
6
8.7
6004127
FLAT WASHER 8.4x24 DIN 9021 motor bracket fixing
6
9
5104000
FAN Ø620 for motor 0.75kW 50Hz versions BT/TP
1
9
5104020
FAN Ø620 for motor 1.1kW 50Hz versions BT/TP
1
9.1
6001259
SCREW TE 8x25 DIN 933 motor-fan fixing
1
9.2
6004127
WASHER 8.4x24 DIN 9021 motor-fan fixing
2
9.3
6003015
WASHER 8x40 DIN9240 motor-fan fixing
1
10
2902020
UPPER AIR OUTLET PANEL with inserts and caps
1
11
2901301
BOTTOM OUTLET COVER
1
