Franka Emika GmbH © October 2018
84

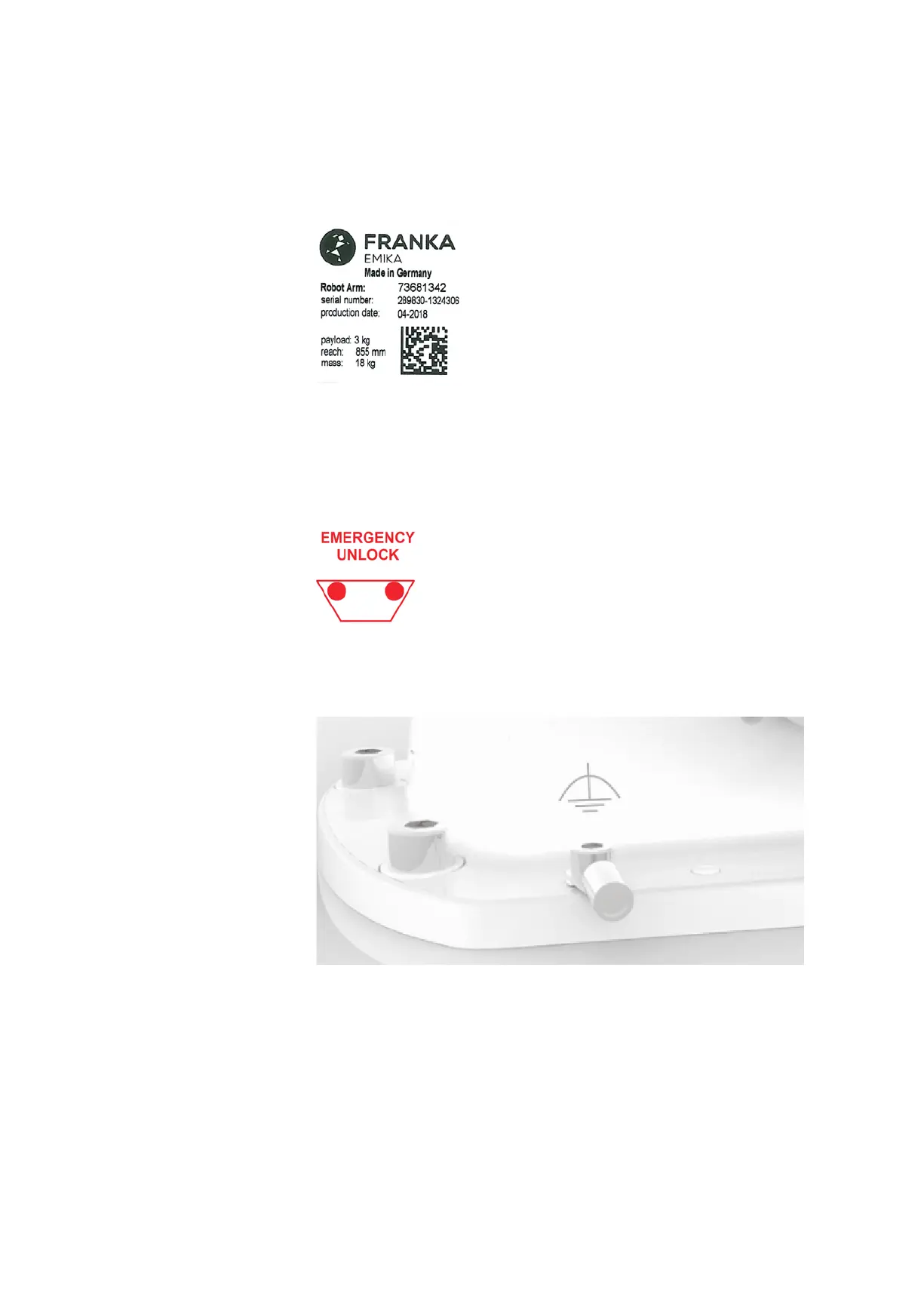

Labeling on the equipment
There are 3 labels for the EMERGENCY UNLOCK on the Arm. They indicate the
places in which the unlocking tool can be inserted in order to manually unlock the
fail-safe safety locking manually in case of emergency.
Indicates where a functional earth can be connected on the base of the Arm.
Name plate: Arm
Emergency unlock label
on Arm
Funconal earth label on Arm
SAFETY CONCEPT
