Lumbar Support, Sears Atlas Seat
To inflate or deflate the lower lumbar bag, push the
rear rocker switch.
to inflate or deflate the upper lumbar bag, push the
center rocker switch.
Backrest Tilt, Sears Atlas Seat
To tilt the backrest, lean forward slightly to remove
pressure from the cushion and pull upward on the
backrest adjustment handle. Lean backward slowly to
the desired position and release the lever to lock the
backrest in place. To adjust backrest forward, pull
upward on the recliner handle while leaning forward.
Armrest Adjustment, Sears Atlas Seat
To adjust the armrest the the desired angle, rotate
the control knob (located on the underside of the
armrest).
National 2000 Series Seat
See Fig. 6.6 for seat adjustment controls.
Backrest Tilt, National 2000 Series
Seat
To tilt the backrest, turn the backrest tilt knob until
the desired position is reached.
11/24/2009 f910615
1
2
3
4
5
6
7
1. Seat Tilt/Extension Adjustment Handle
2. Fore-and-Aft Slide Adjustment Bar
3. Isolatior Lever
4. Suspension (Ride) Adjustment Switch
5. Lumbar Support Switches
6. Backrest Adjustment Handle
7. Armrest

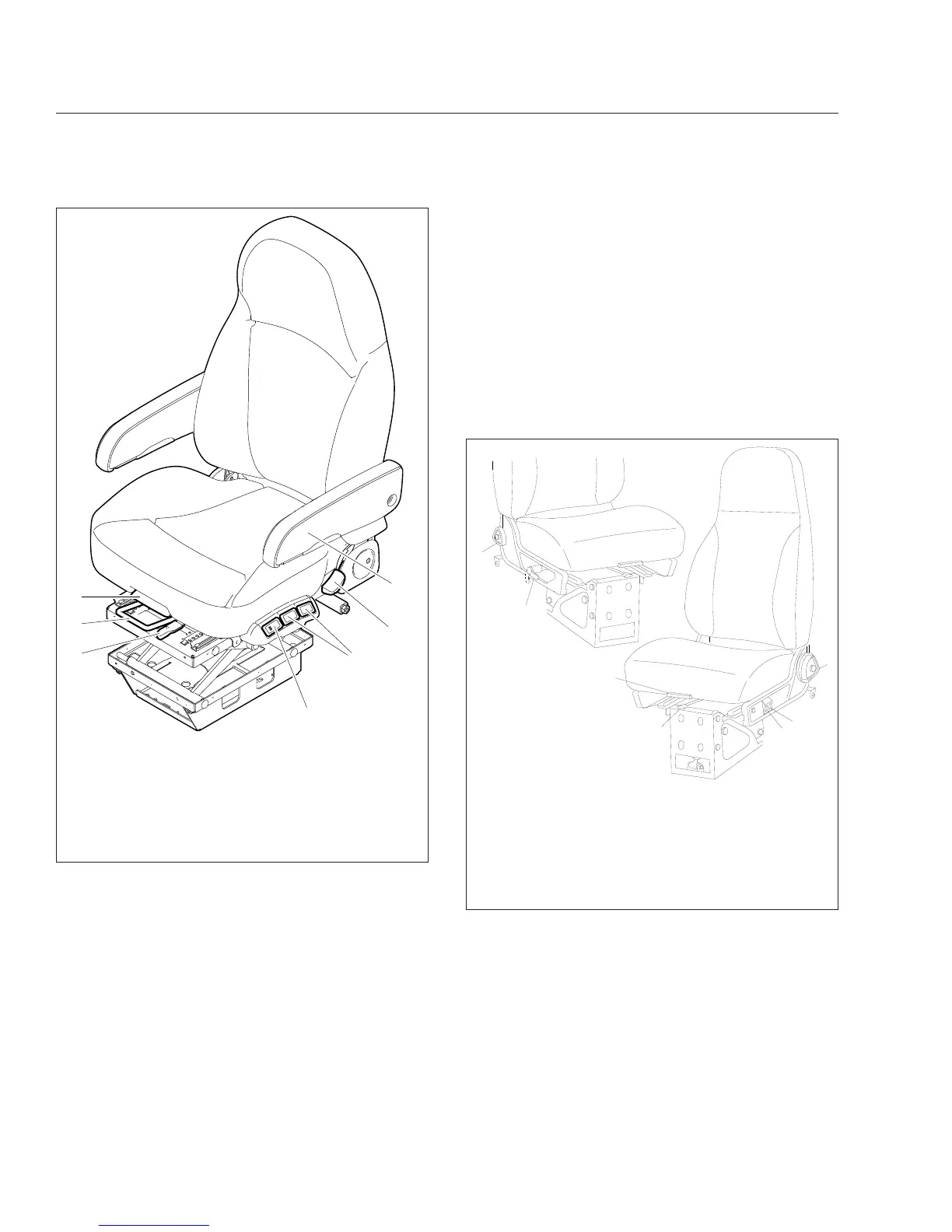

Fig. 6.5, Sears Atlas Seat Adjustment Controls
11/14/2000
1
2
3
4
5
f910445
6
7
1. Backrest Tilt Knob
2. Lumbar Support Switch
3. Height Adjustment Switch
4. Fore-and-Aft Seat Adjustment Lever
5. Bottom Cushion Fore-and-Aft Adjustment Handle
6. Isolator Handle
7. Rear Cushion Adjustment Knob
Fig. 6.6, National 2000 Series Seat Adjustment Controls
