modes, four of which are air conditioning modes. See
Fig. 7.4.
Air Selection Switch Without Air
Conditioning
1.
Face Mode: Directs all airflow through the face
or instrument panel outlets.
2.
Selection between Face Mode and Bi-Level
Mode: Directs 75 percent of the airflow through
the face outlets and 25 percent through the floor
outlets.
3.
Bi-Level Mode: Directs the airflow equally to the
face outlets and the floor outlets.
4.
Selection between Bi-Level Mode and Floor
Mode: Directs 25 percent of the airflow through
the face outlets and 75 percent through the floor
outlets.
5.
Floor Mode: Directs all airflow through the floor
outlets.
6.
Selection between Floor Mode and Floor/
Defrost Mode: Directs 75 percent of the airflow
through the floor outlets and 25 percent through
the defrost outlets.
7.
Floor/Defrost Mode: Directs the airflow equally
to the floor outlets and the defrost outlets.
8.
Selection between Floor/Defrost Mode and
Defrost Mode: Directs 75 percent of the airflow
through the defrost outlets and 25 percent
through the floor outlets.
9.
Defrost Mode: Directs all airflow through the
defrost outlets.
Air Selection Switch With Air
Conditioning
1.
Air Conditioning Face Mode: Directs all airflow
through the face or instrument panel outlets.
2.
Selection between the Air Conditioning Face
Mode and the Air Conditioning Bi-Level
06/17/2003
1
2
3
4
5
6
7
8
9
f831455
1. Face Mode
2. Selection Between Face Mode and Bi-Level Mode
3. Bi-Level Mode
4. Selection Between Bi-Level Mode and Floor Mode
5. Floor Mode
6. Selection Between Floor Mode and Floor/Defrost
Mode
7. Floor/Defrost Mode
8. Selection Between Floor/Defrost Mode and Defrost
Mode
9. Defrost Mode

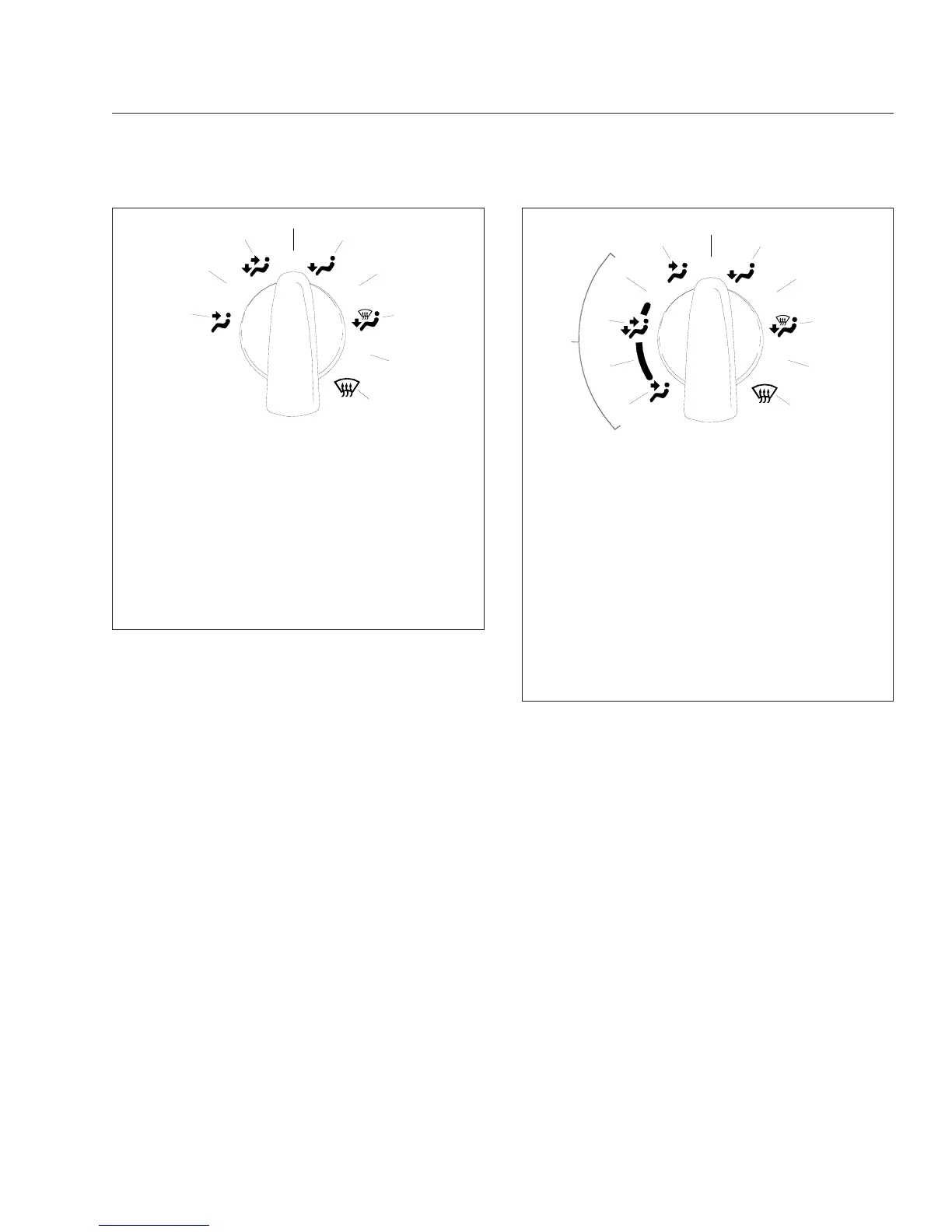

Fig. 7.3, Air Selection Switch Without Air Conditioning
f831462
1
2
3
4
5
6
7
8
9
10
11
06/18/2003
A
A. Air Conditioning Modes
1. Air Conditioning Face Mode
2. Selection Between Air Conditioning Face Mode and
Air Conditioning Bi-Level Mode
3. Air Conditioning Bi-Level Mode
4. Selection Between Air Conditioning Bi-Level Mode
and Face Mode
5. Face Mode
6. Selection Between Face Mode and Floor Mode
7. Floor Mode
8. Selection between Floor Mode and Floor/Defrost
Mode
9. Floor/Defrost Mode
10. Selection between Floor/Defrost Mode and Defrost
Mode
11. Defrost Mode
Fig. 7.4, Air Selection Switch With Air Conditioning
Climate Control
7.2
