A C
1
2

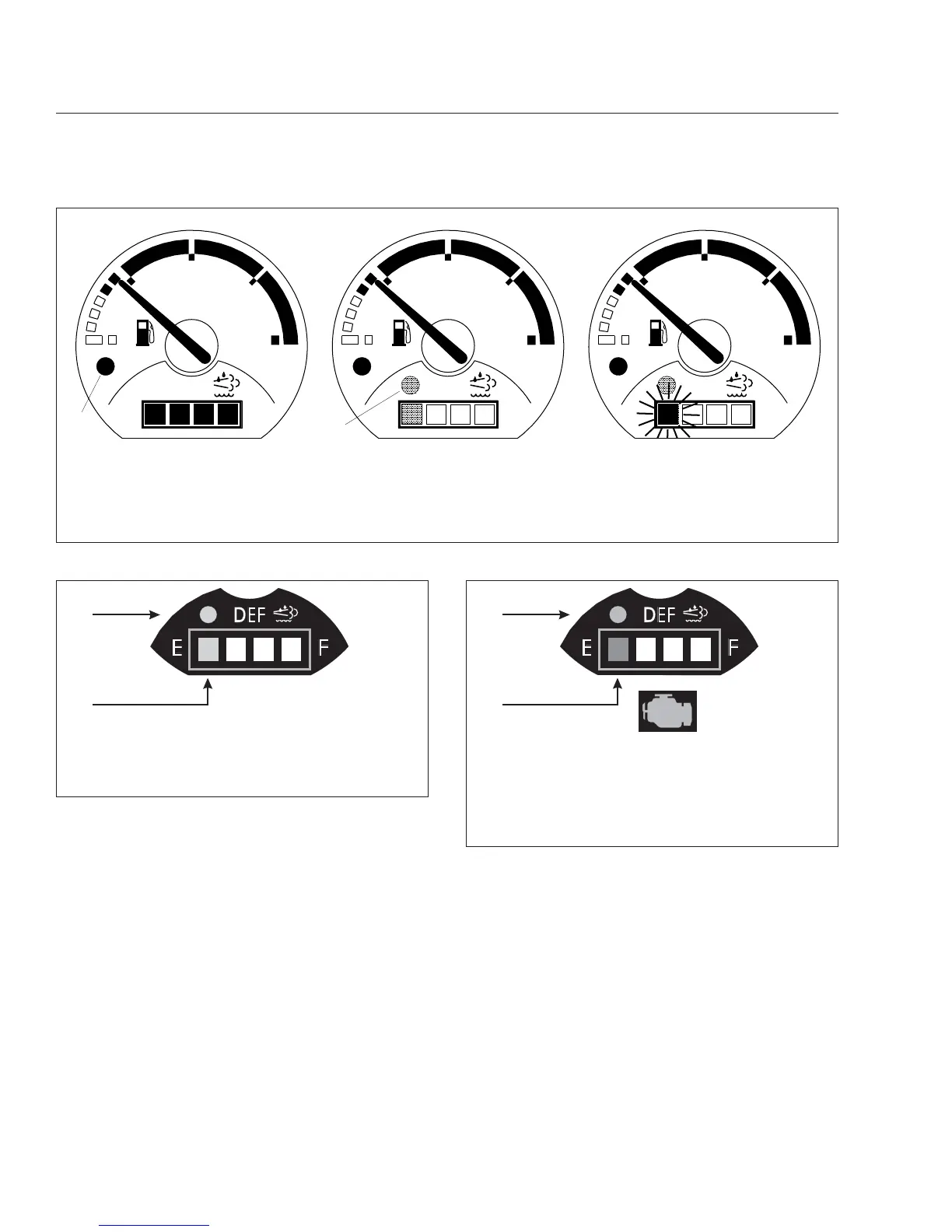

A. Green bars—DEF level indicators
B. One bar illuminated amber—DEF very low, refill DEF
C. One bar flashing red—DEF empty, refill DEF
1. Low Fuel Warning Lamp 2. DEF Warning Lamp
Fig. 11.10, Fuel/DEF Gauge
A
B
07/09/2009 f470537
A. DEF Warning Lamp (illuminated)
B. DEF Lightbar (one bar amber)
Fig. 11.11, DEF Level Low Initial Warning
A
B
11/08/2010 f470539a
NOTE: MIL illuminates. CHECK engine lamp illuminates
if Cummins ISB or ISC/L engine. Engine power is lim-
ited.
A. DEF Warning Lamp (flashing)
B. DEF Lightbar (one bar flashing red)
Fig. 11.12, DEF Empty Warning
