screen, followed by the number of miles(km)/
hours since the service was due.
Setup Information
See Fig. 4.14 and Fig. 4.15 for diagrams of the
setup information screens.
Setup information allows you to program various fea-
tures of the ICU4M environment, including:
A.
Service intervals (OFF/MILES/HOURS);
B.
Target MPG;
C.
LCD Lamp (ON/OFF);
D.
Driver message center brightness;
E.
Language (English/French/Spanish);
F.
Units of measurement (English/Metric);
G.
Driver select (ON/OFF)
H.
Reset parameters to original settings.
Vehicle Information Screens
The vehicle information screens display hardware
and software information, including the Freightliner
part number and switch ID of the ICU. See
Fig. 4.16.
ICU3
A mode/reset button, located on the right side of the
ICU instrument cluster, is used to control the driver
message center. See
Fig. 4.2. Tap the mode/reset
button to advance one screen; press and hold the
button to select a menu choice or reset the display.
When the display resets, an audible chirp sounds.
Only four screens are accessible when the parking
brake is off (mobile screens). All screens are acces-
sible when the parking brake is on (stationary
screens).
Mobile Screens
The following screens are available when the parking
brake is off (when the vehicle is mobile) and no ac-
tive fault codes are found. Tap the mode/reset button
to scroll through the mobile screens.
i.
Odometer
ii.
Trip distance
iii.
Trip hours
iv.
Back to odometer
Stationary Screens
The following screens are available when the parking
brake is on (when the vehicle is stationary) and no
INTERVAL IS SET TO
XXXXX MILES AMT
R
OR
Distance prior to reaching the
set Service Interval
Distance traveled beyond the
set Service Interval
R
SERVICE WAS DUE
12345 MILES AGO AMT
Time accumulated beyond the
set Service Interval
Time prior to reaching the
set Service Interval
INTERVAL IS SET TO
XXXX HOURS AMT
SERVICE
INFORMATION AMT
SERVICE
INFORMATION AMT
12345 MILES
TO NEXT SERVICE AMT
1234 HOURS
TO NEXT SERVICE AMT
SERVICE WAS DUE
1234 HOURS AGO AMT
R
OR
R
f040703
Go to Setup Information Screens
Go to Set−up Information Screens
Return to
Idle Hours
From Diagnostic
Information
Screen
12/17/2004
NOTE: Service information screens only appear if the service interval is set to MILES or HOURS in Setup Information.

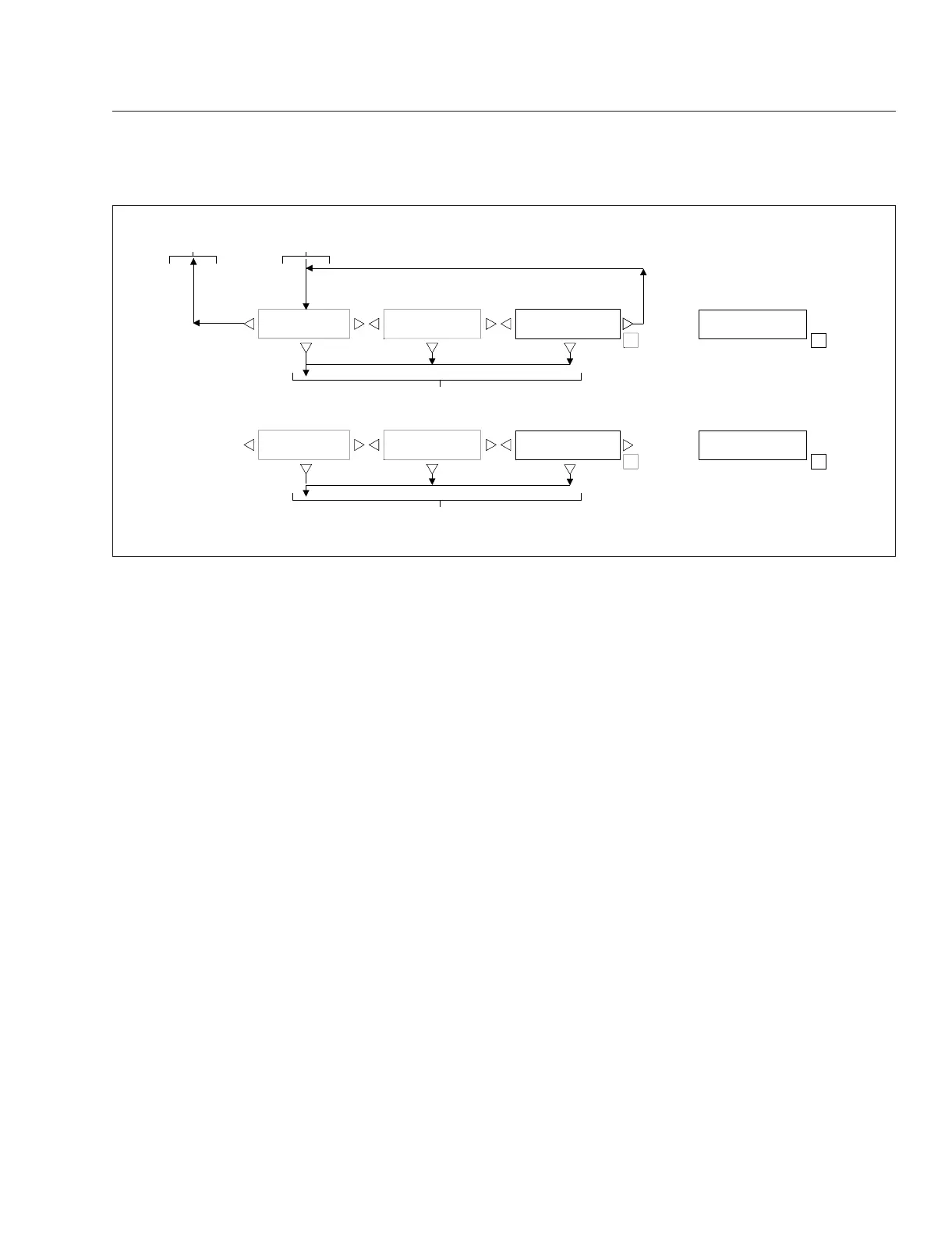

Fig. 4.13, ICU4M Service Information Screens
