Uncontrolled conditions and defects in the stun circuit are indicated to the
user by a malfunction lamp.
3.2 Overview of the stunning device

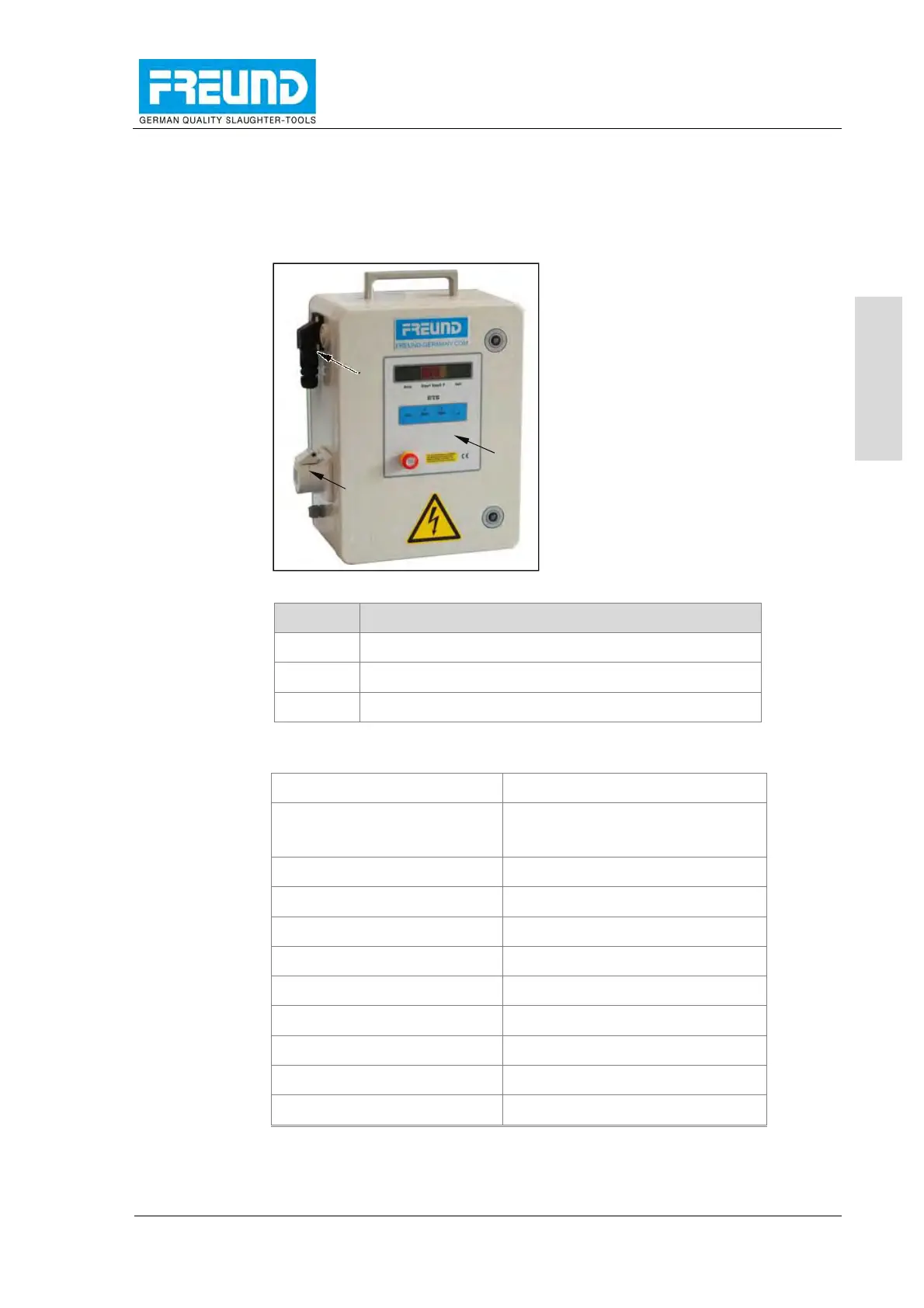

Fig. 3-1 View
Element Description
1 Connection for external data memory
2 Electrical connection for the stun tong
3 Operating and display panel
3.3 Technical data
Dimensions (H x W x D) 400 x 300 x 160 mm
Operating voltage
230 V ± 10% /
115 V ± 10% special voltage
Weight 13 kg
Frequency 50 / 60 Hz
Current draw max. 4.6 A
Temperature range 0 – 40 °C
Stun voltage B512 80 – 400 VAC
Stun current B512 1.5 A, 30% ED
Stun frequency 50 – 1000 Hz in steps
Fuse 6.3 AT
Protection class I / II IP 65 / IP 44
Electronic fuse in case of electrode short circuit, short circuit and/or a
defect in the stun circuit
3
1
2
