6.4.1 Measuring stunning current intensity
1. Open the Electric-Stunner with a special cabinet
key.
2. Enclose the turned brown cable with a clip-on
ampere meter.
3. Adjust the measurement range of the clip-on
ampere meter to 10A/AC.
4. Carry out the measurement.
5. Close the Electric-Stunner with a special cabinet
key.

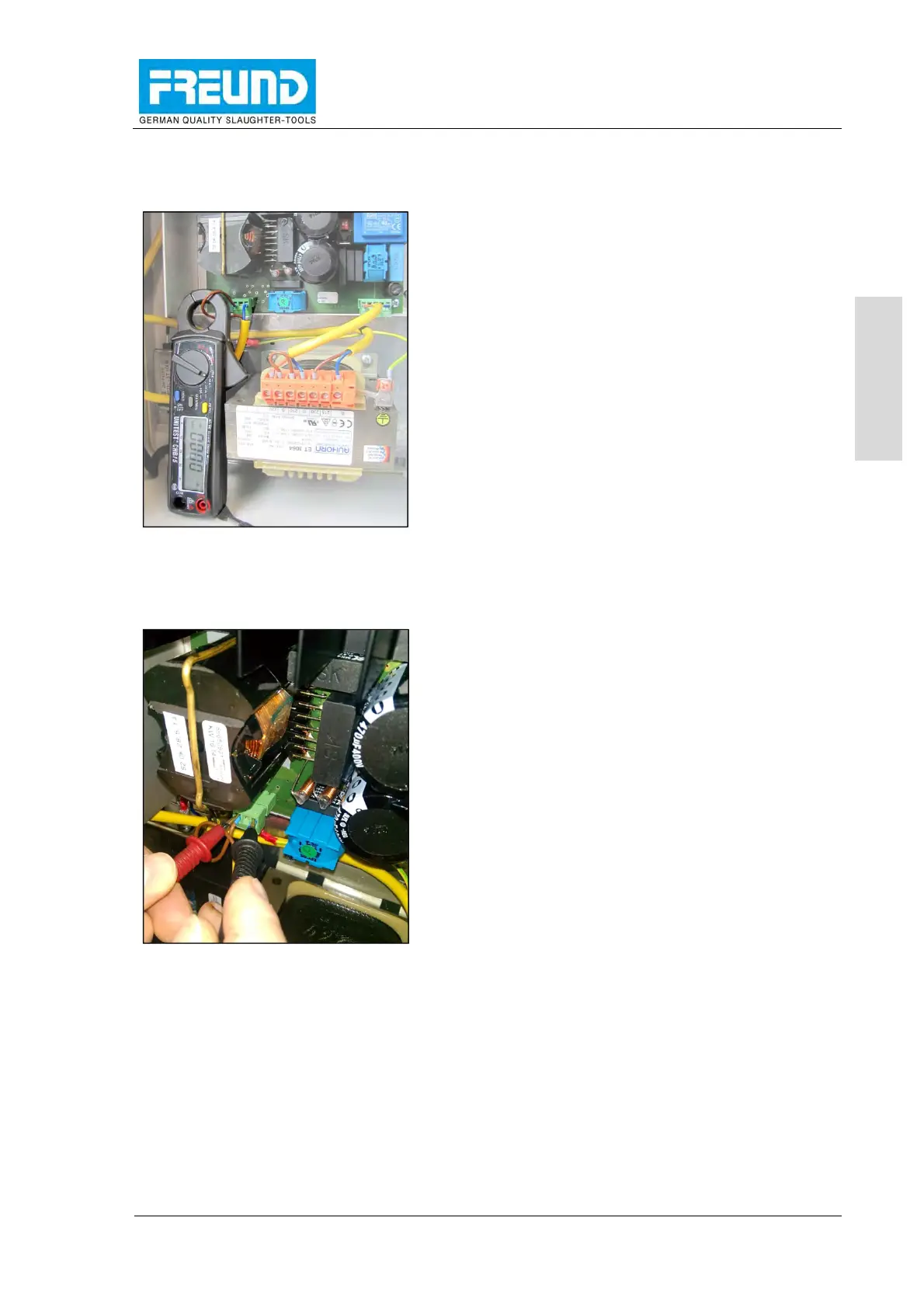

Fig. 6-1
Stunning current measurement
6.4.2 Measuring stunning voltage intensity
1. Open the Electric-Stunner with a special cabinet
key.
2. Put the probes of the multimeter into the plugs
PIN 1 and PIN 3 of the green PCB terminal.
3. Adjust the measurement range of the multimeter
to 600V/AC.
4. Carry out the measurement.
5. Close the Electric-Stunner with a special cabinet
key.
Fig. 6-2 Stunning voltage
measurement
