Technical Description
STUN-E512_E3__EN.DOCX A 55/73
www.freund-germany.com
EN

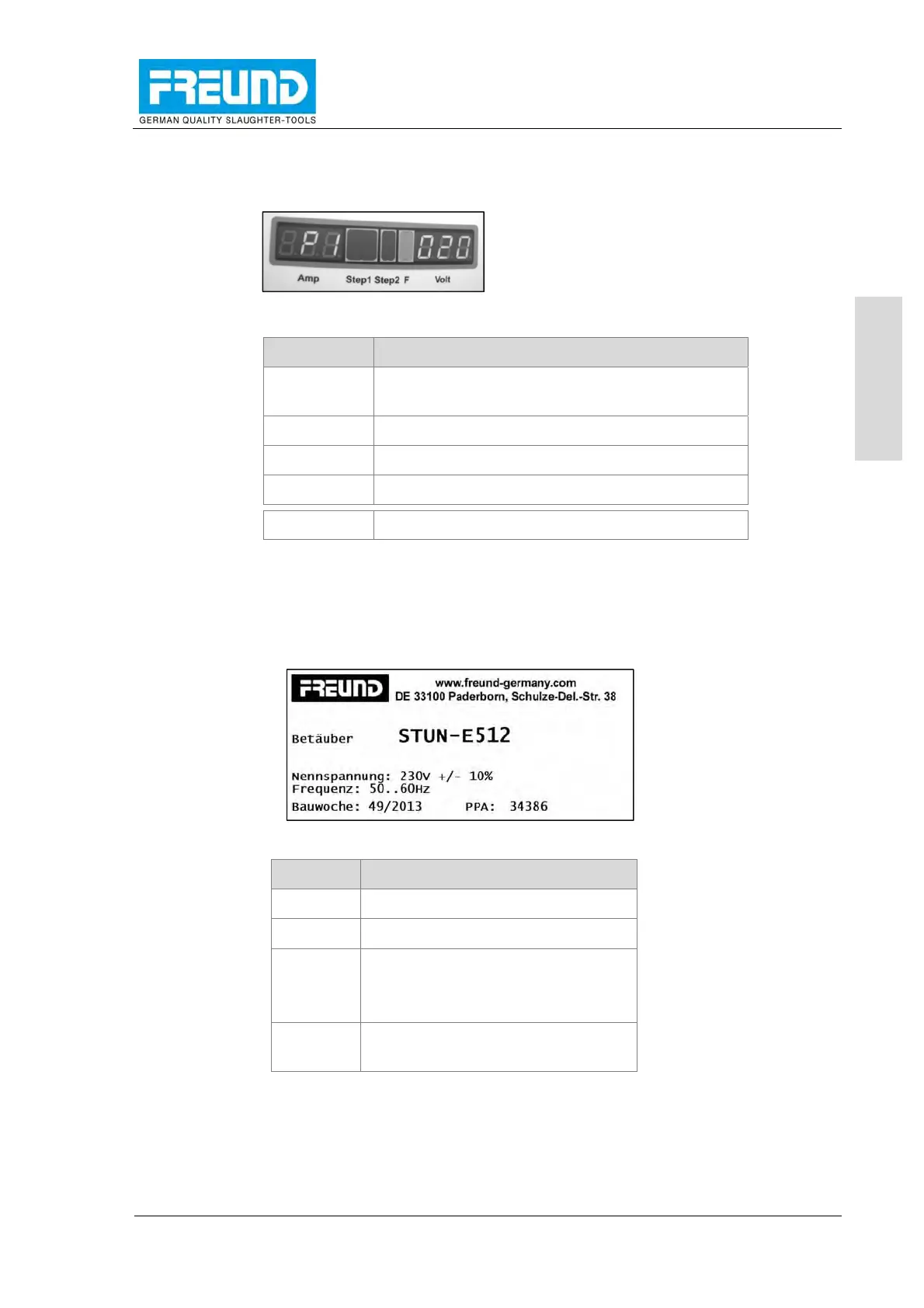

3.4.2 Display elements
Fig. 3-2 Detail
Display Meaning
AMP
Indicates program (P..) or
during stun process, the amperage
Step1 Indicates head stun
Step2 Indicates heart stun
F Indicates stun error
Additional acoustic stunning error display
3.5 Rating plate
The rating plate is attached on the cover with details of the machine-tool
efficiency.
The following figure shows a rating plate example:
Fig. 3-3 Rating plate
Element Explanation
1 Company address
2 Machine type and designation
3 Performance data:
Rated voltage [V]
Frequency [Hz]
4 Year and week of manufacture
and production order no.
