PLANNING AND EXTENDING YOUR WIREFREE
ALARM SYSTEM
SA1, SA2(PF), SAC14
Before attempting to install your Alarm System it is
important to study your security requirements and plan
your installation.
PIR Movement Detectors are used to protect the main
areas of the property, (e.g. lounge, study, hallway and
landing). Magnetic Contact Detectors are typically used
to protect the main access points to the property,
(e.g. front door, back door, patio doors). However, they
can also be used to protect other vulnerable doors/
windows or access doors to important rooms.

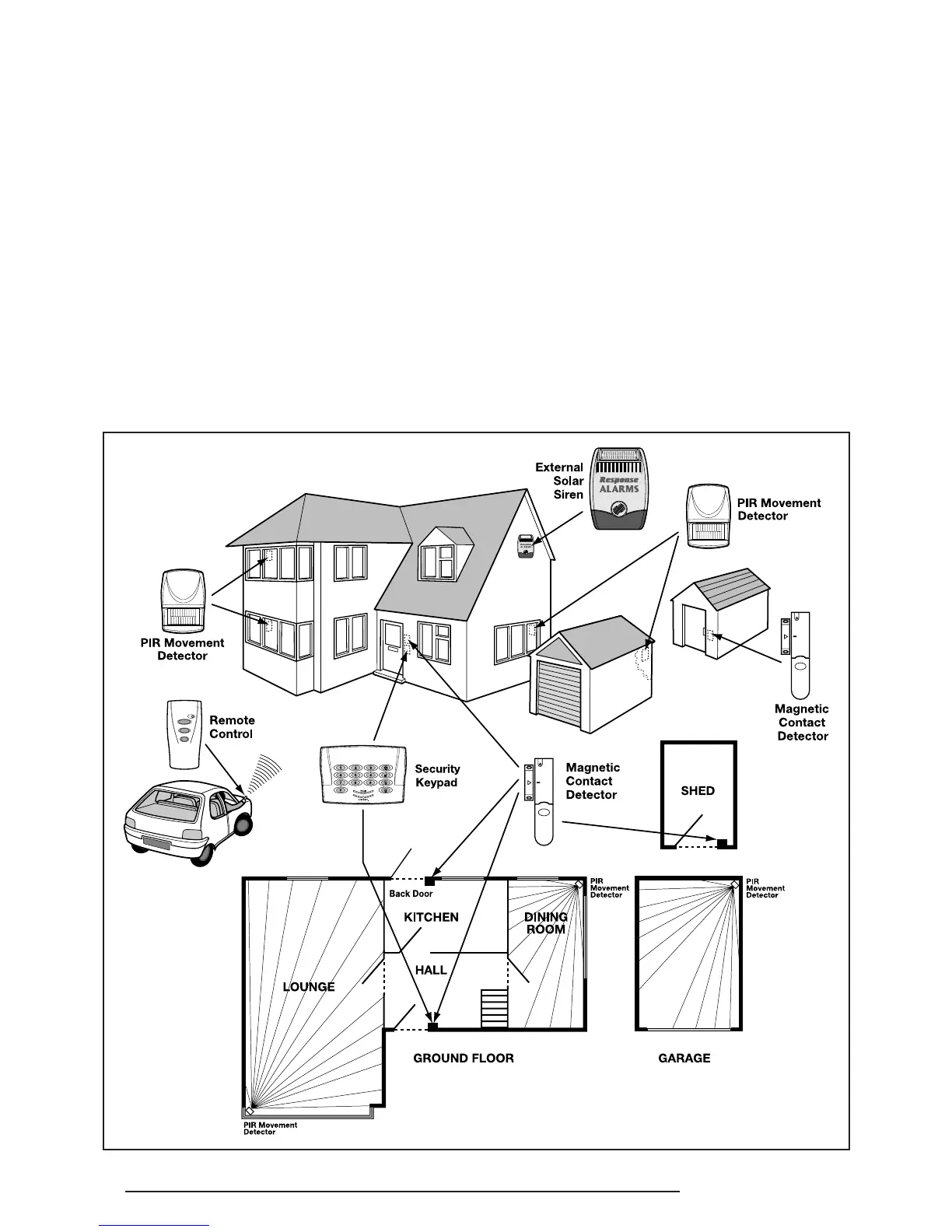

The following example below shows typical property
incorporating the suggested positions for the External
Siren, Keypad, PIR and Magnetic Detectors for
optimum security. Use this as a guide for your
installation in conjunction with the detailed positioning
requirements for each device provided in the
appropriate installation sections in this manual for
planning your intruder alarm system.
The alarm system may be extended to provide greater
protection and control by fitting additional PlR
Movement Detectors, Magnetic Contact Detectors,
Remote Controls and Keypads as required. Any number
of accessories may be used with your system, provided
that they are all coded with the system House Code.
