4. Fit the top keyhole slots of the mounting plate over
the screw heads. Remove the mounting plate and
adjust the screws until they form a neat fit with the
mounting plate with minimal movement.
5. Secure the mounting plate in position using two
25mm fixing screws in the bottom fixing holes.
6. Ensure that the Solar Siren main configuration
switch on the LED indicator board is set to "C.U."
for use with this alarm system.
7. Undo the 3 screws holding the DIP Switch Cover
in place and remove the cover.

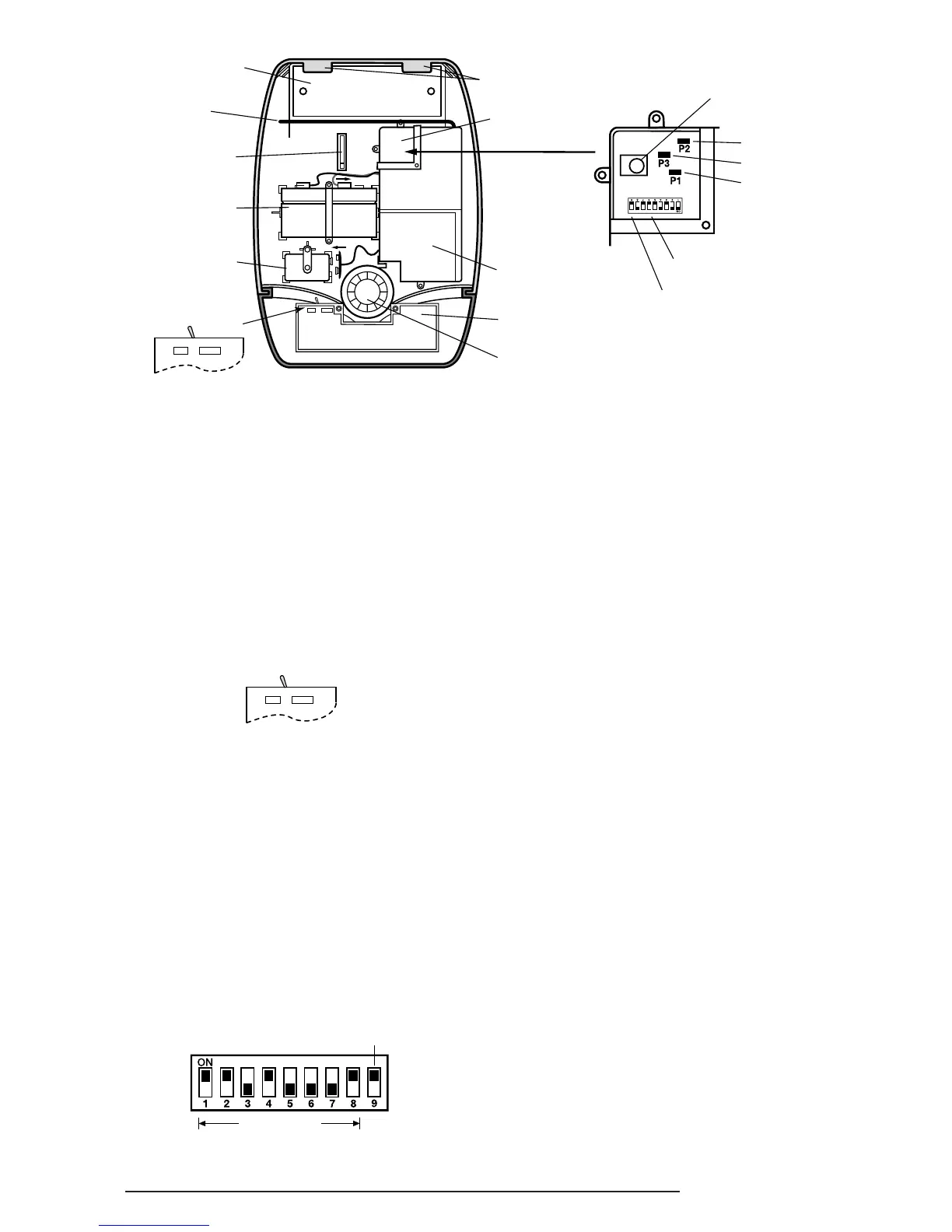

8. Under the cover you will find a series of 9 DIP
switches.
Note: When the Solar Siren is viewed as shown
above (Solar panel at top) the DIP switches are
‘upside down’.
9.
Select and record a random combination of ‘ON’ and
‘OFF’ positions for DIP switches 1- 8. This will be the
system House Code that will enable all devices on
the system to communicate with the Solar Siren.
IMPORTANT: The house code for your system
should be changed from the factory default settings.
10.
Set the alarm duration time using DIP switch 9 as
follows:
ON = 3 minutes
OFF = 1 minute
11. The Solar Siren will acknowledge signals from
the Remote Control and Keypad by beeping. It is
possible to disable these acknowledgement beeps
if required by removing the jumper link P2 on the
circuit board.
P2 fitted =
beep enabled
P2
removed = beep disabled
12.
If for any reason you need to disable the Siren,
remove jumper link P3 on the circuit board. This
will prevent the Siren from sounding during an
alarm condition. However, the Siren will still beep
to acknowledge signals from the Remote Control,
(provided the beep feature is not disabled).
P
3 fitted = Siren enabled
P
3 removed = Siren disabled
13.
To enable the Jamming Detect feature in the Solar
Siren fit the jumper link taped to the cover of the Siren
control unit across link pins P1 on the circuit board.
P1 fitted = Jamming Detection enabled
P1 removed = Jamming Detection disabled
14.
Refit the DIP switch cover and replace the three
cover fixing screws. Do not over tighten the screw
as this could damage the thread.
