Friendess FSCUT2000E - BCL4566 E Wiring

11
FSCUT2000E User Manual

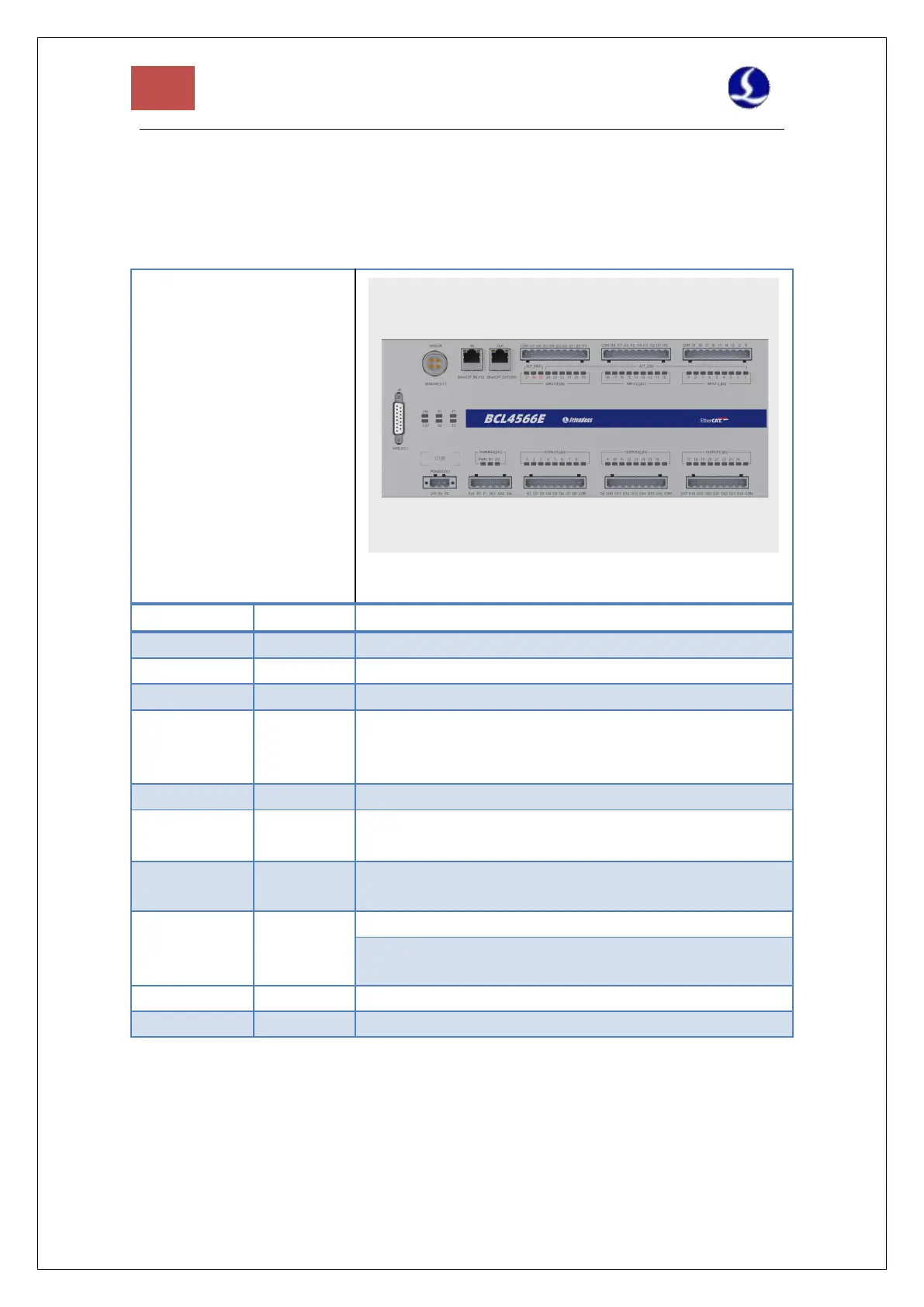

2.2 BCL4566E Wiring
The BCL4566E bus height controller uses the EtherCAT bus to control the laser cutting
capacitive follower. It is a high-performance capacitive height controller.
BCL4566E
Terminal Board
Module
Qty
Description
Power Supply
/
24V DC /3.5A
DA
2
0-10V, 12bit, ±50mV
PWM
2
5V and24V, ±50KHz 0.3%
Common
Output
24
24V active high
1) The current of single output ≤ 0.7A
2) The current of all outputs ≤ 2.5A
Axis
1
Pulse digital quantity, PUL±/DIR± output, up to 600KHz
Dedicated
Input
27
IN1-IN24, active low, 0~ 15V
IN25-IN27, active high, 24~ 8V
Capacitance
Sensor
1
Capacitance frequency
2Mhz~4Mhz
Working
Environm
ent
/
Temperature: 0℃~60℃
Humidity: 10%~90%Rh(no(no condensation)
Dimension
/
300mm×123×34mm
Weight
/
640g
Table 2-6 BCL4566E Technical Data
