Chapter 2 Wiring Instruction

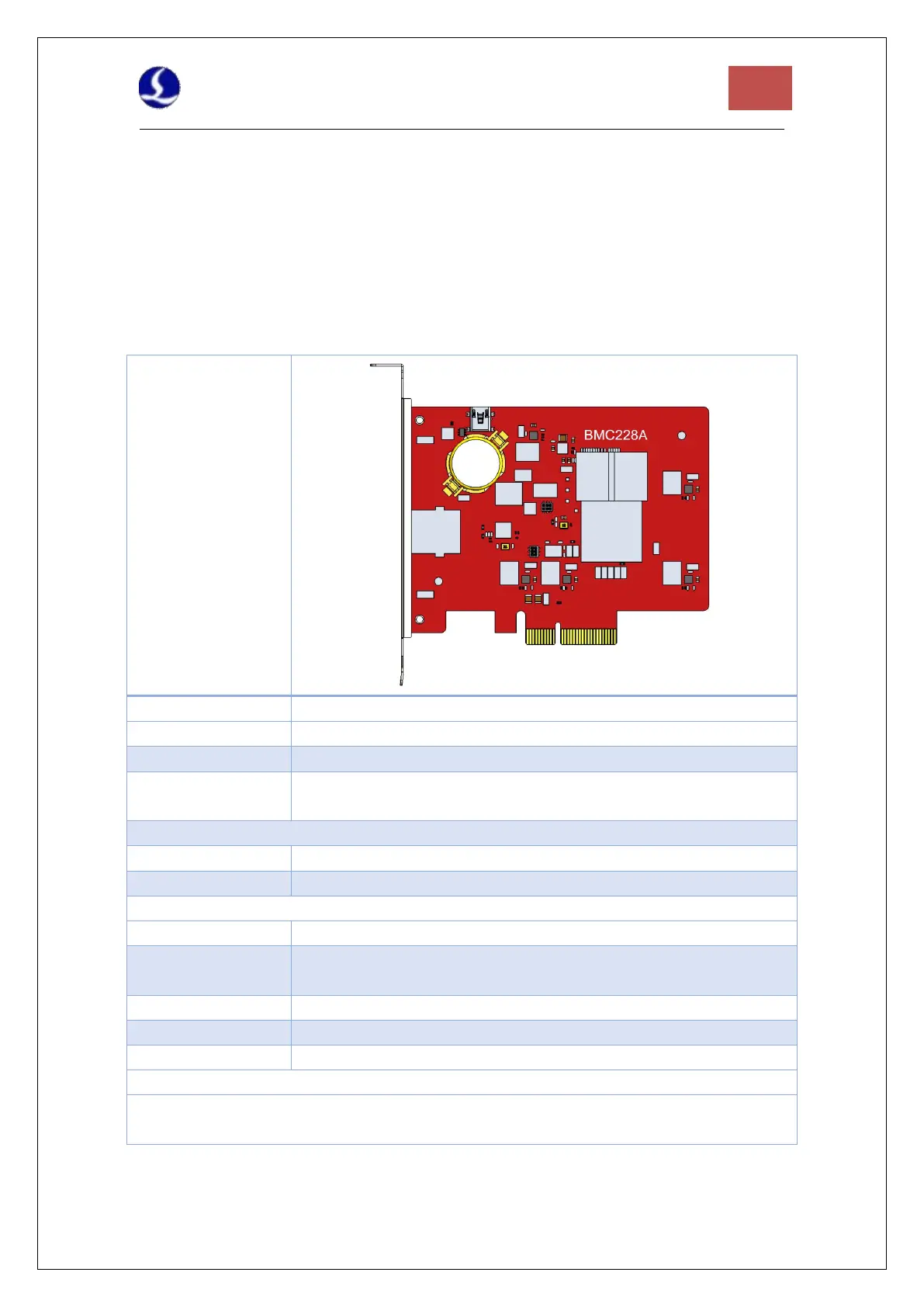

2.1 BMC228A Installation
BMC228A Control Card is a motion control card based on the EtherCAT Its 1.0Ghz
main chip provides excellent overall performance and has passed Friendess stringent testing
standards.
BMC228A
EtherCAT Control
Card
Bus Protocol
EtherCAT Master Protocol
PCI Express
PCI Express2.0 (Gen2)
Power Supply
Powered by PCIe motherboard, max 12V/1A, no hot plug
Anti-interference
Level
ESD 3 (6kV contact, 8kV air), EFT 4 (4kV power supply, 2kV signal),
Surge international 2 (2kV AC line, 1kV DC line)
Dimension and Weight
Dimension
(L x W x H) 127.6mm x121.0mm x21.45mm
Weight
80g
Feature
Cooling
Nature Cooling
Operating
Environment
0~+60℃
Storage temperature
-20~+70℃
Humidity
0% to 90% (non-condensation
Certification
CE
Environment Requirement
The waterproof and dustproof grade of the Control Card is IP00, unprotected. Please place the
computer in a clean, dust-free environment.
Table 2-1 BMC228A Technical Data
