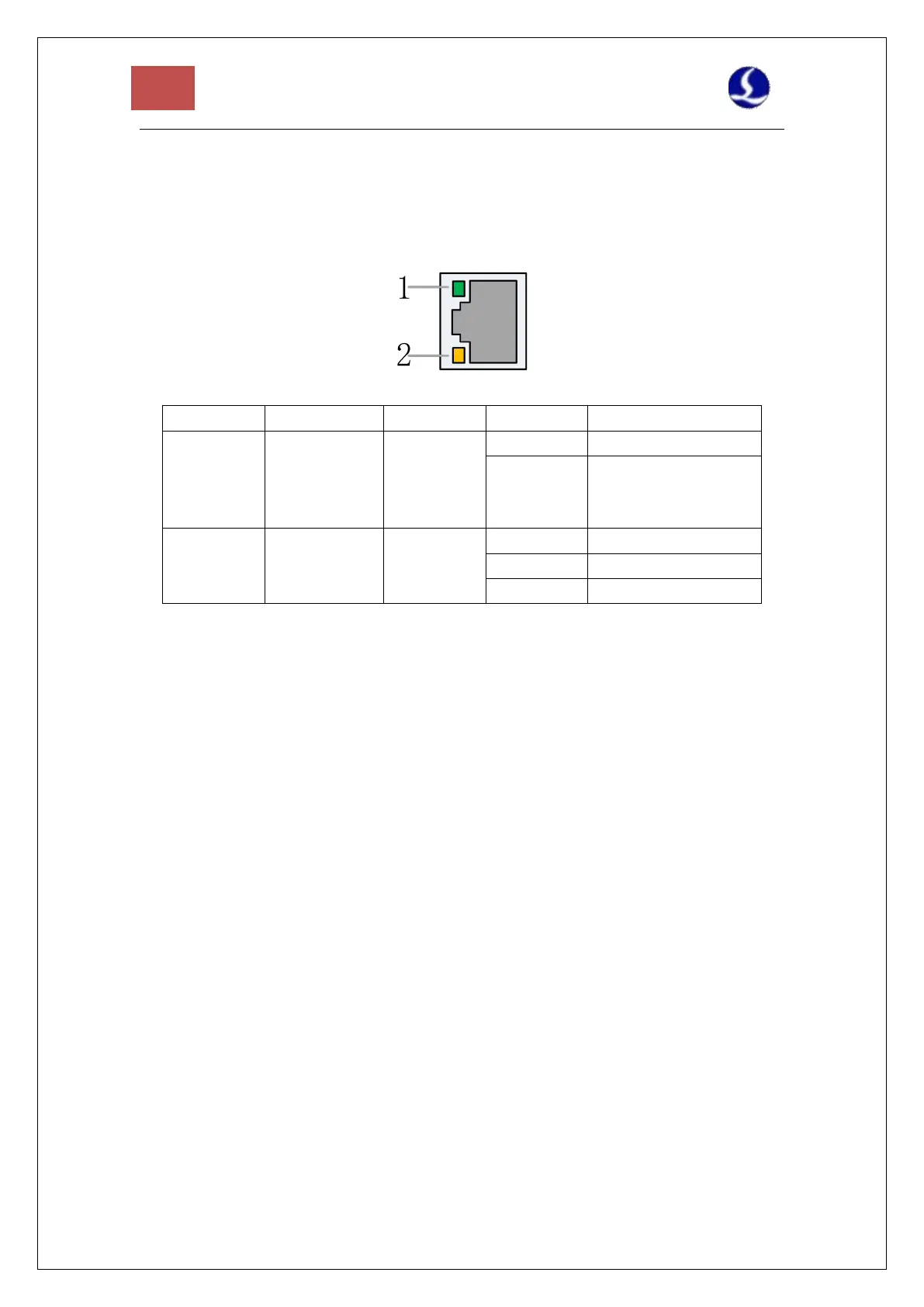

2.1.3 Ethernet Terminal
The standard socket of BMC228A is RJ45 that can be used to connect EtherCAT slave
devices(servo drives, BCS100E, BCL2720E, etc.)
Label
Description
LED Color
Status
Description
1: Speed
Ethernet
communication
connection
speed
Green
Off
10 Mbps connection
Solid
100 Mbps conection
2: Link
Ethernet
communication
link status
Yellow
Off
No connection
Flashes
Communicating
Solid
Connected
Table 2-2 Description of RJ45 connection status
