2.1.1 Dimension Diagram

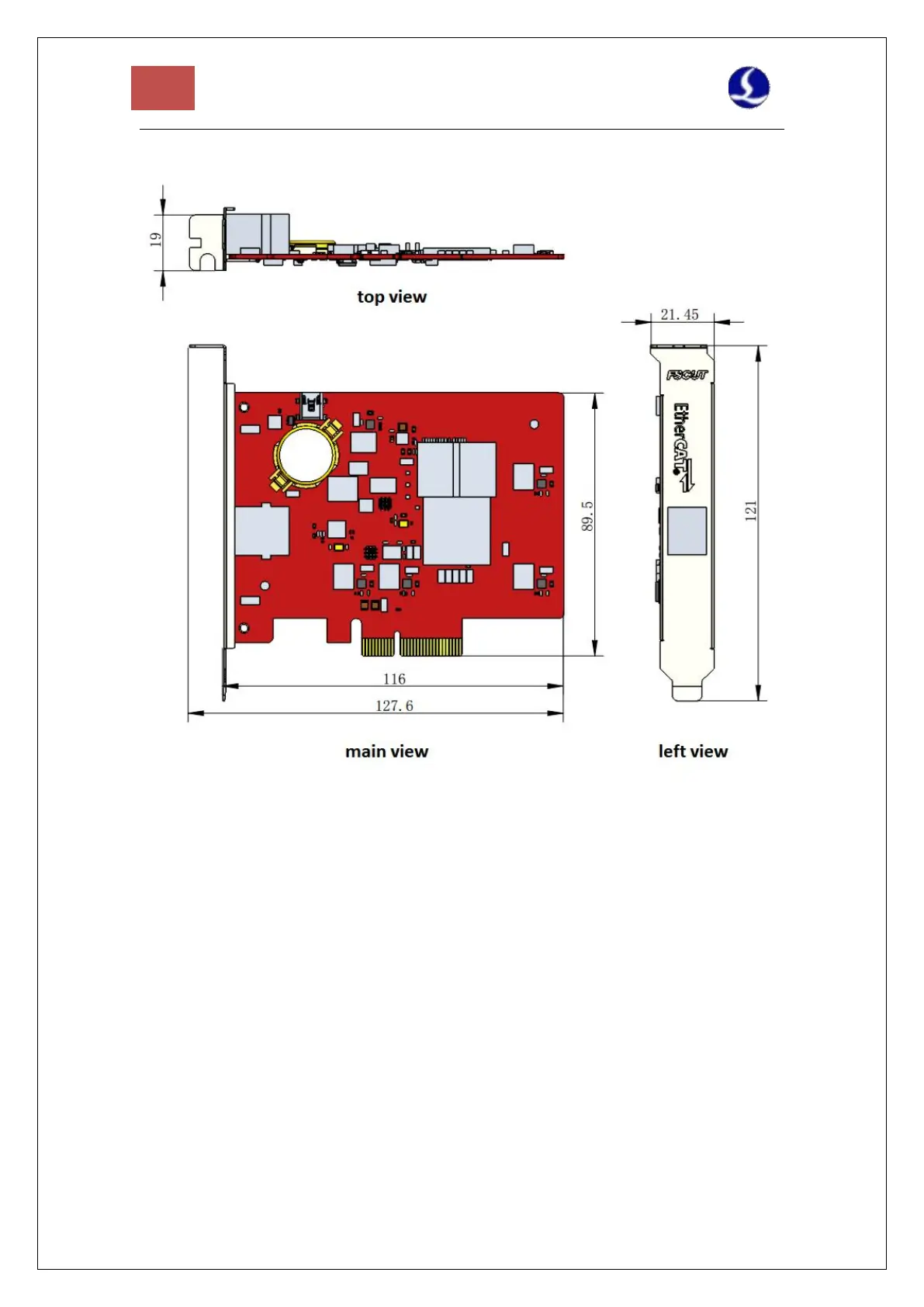

BMC228A Control Card dimension ( mm) is shown in Figure 3.
Figure 3 BMC228A Dimension
2.1.2 Installation Diagram
Install BMC228A in the socket of PCIE X4 and up with even force (refer to ②), and
secure its blank screw (refer to ①). Be aware of the heat dissipation for BMC228X and keep it
away from other cards as far away as possible. Refer to the diagram below.
