FSCUT2000E User Manual

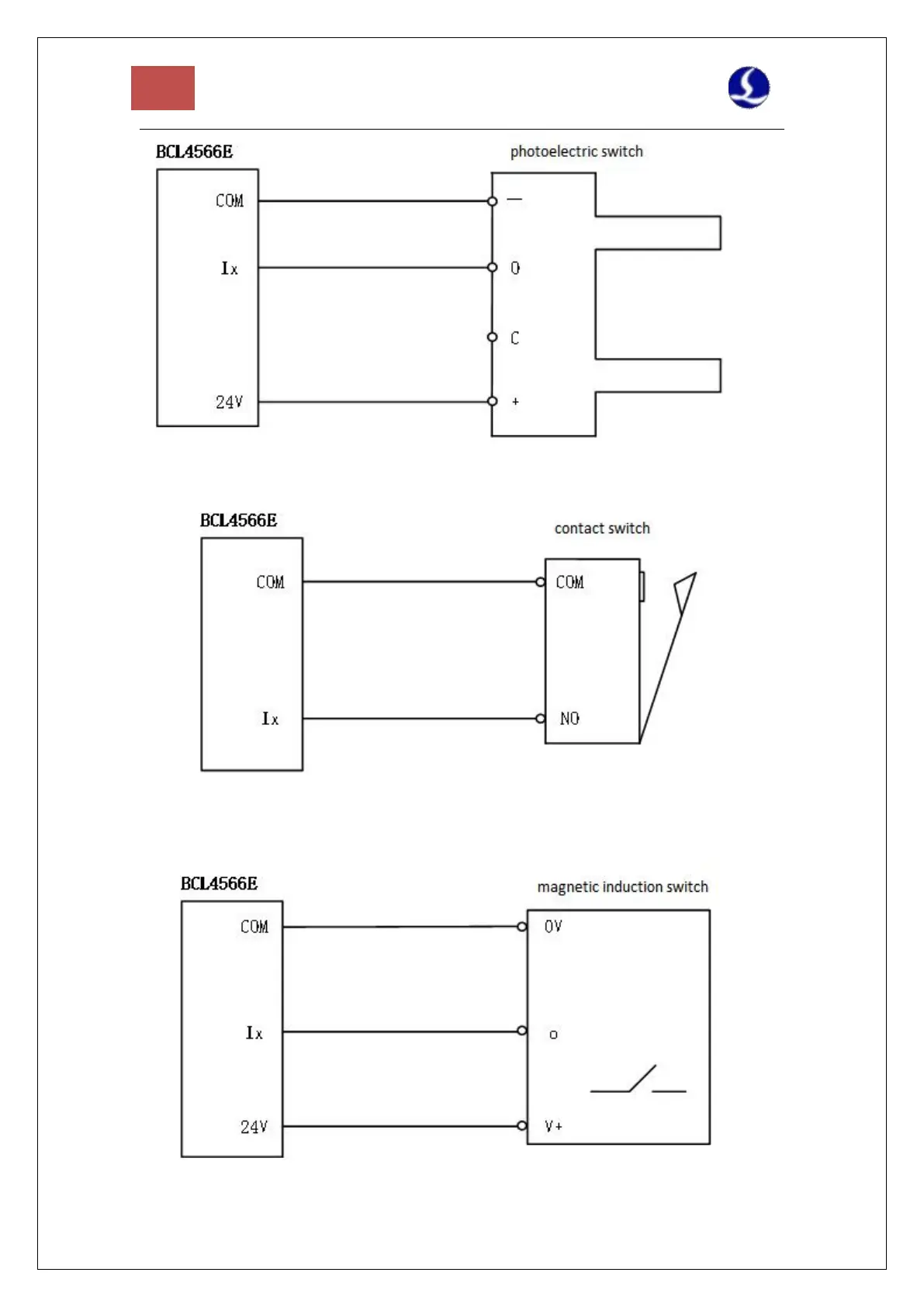

The typical connection of the contact switch is shown in the figure below.
The typical connection of the magnetic induction input switch is shown in the figure
below. An NPN 24V magnetic induction switch should be used.
