Froling TX 150 - Page 6

General
Product Overview
Page 6
B 067 03 11_en v
1

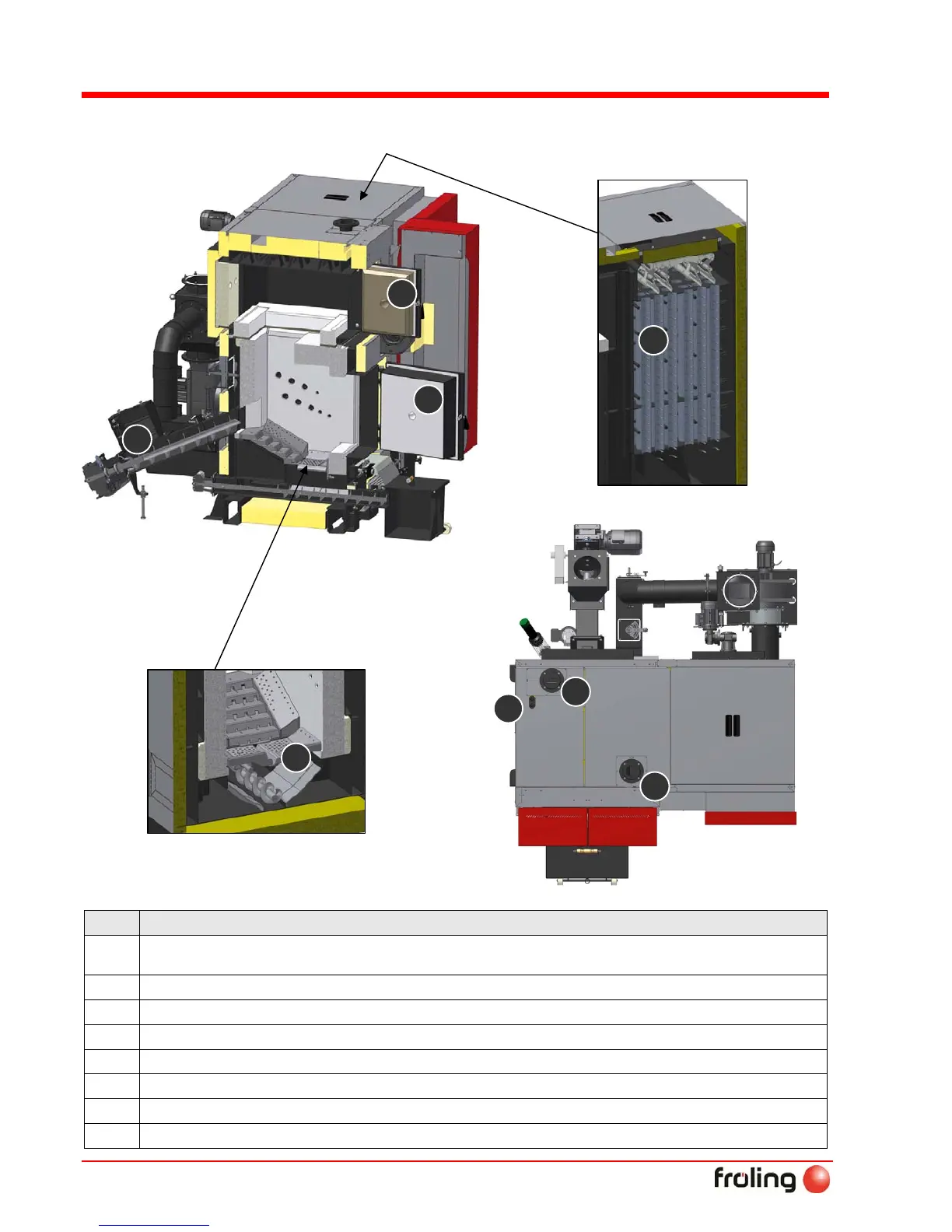

Pos. Description
8 Fuel transport unit with top gravity shaft, burn back flap or rotary valve as a burn back protection
system and stoker screw for fuel transport
9 Automatic tipping grate
10 Combustion chamber door
11 Heat exchanger door
12 Efficiency Optimisation System (WOS) with turbulators
13 Boiler outfeed connection
14 Boiler return connection
15 Thermal discharge safety device connection
5
9
11
8
11
10
13
14
9
15
12
