Froling TX 150 - 1 General; Product Overview

General
Product Overview
Fröling Heizkessel- und Behälterbau Ges.m.b.H
 Industriestraße 12  A-4710 Grieskirchen Page 5
Tel +43 (0) 7248 606-0  Fax +43 (0) 7248 606-600  info@froeling.com  www.froeling.com B 067 03 11_en
1
1 General

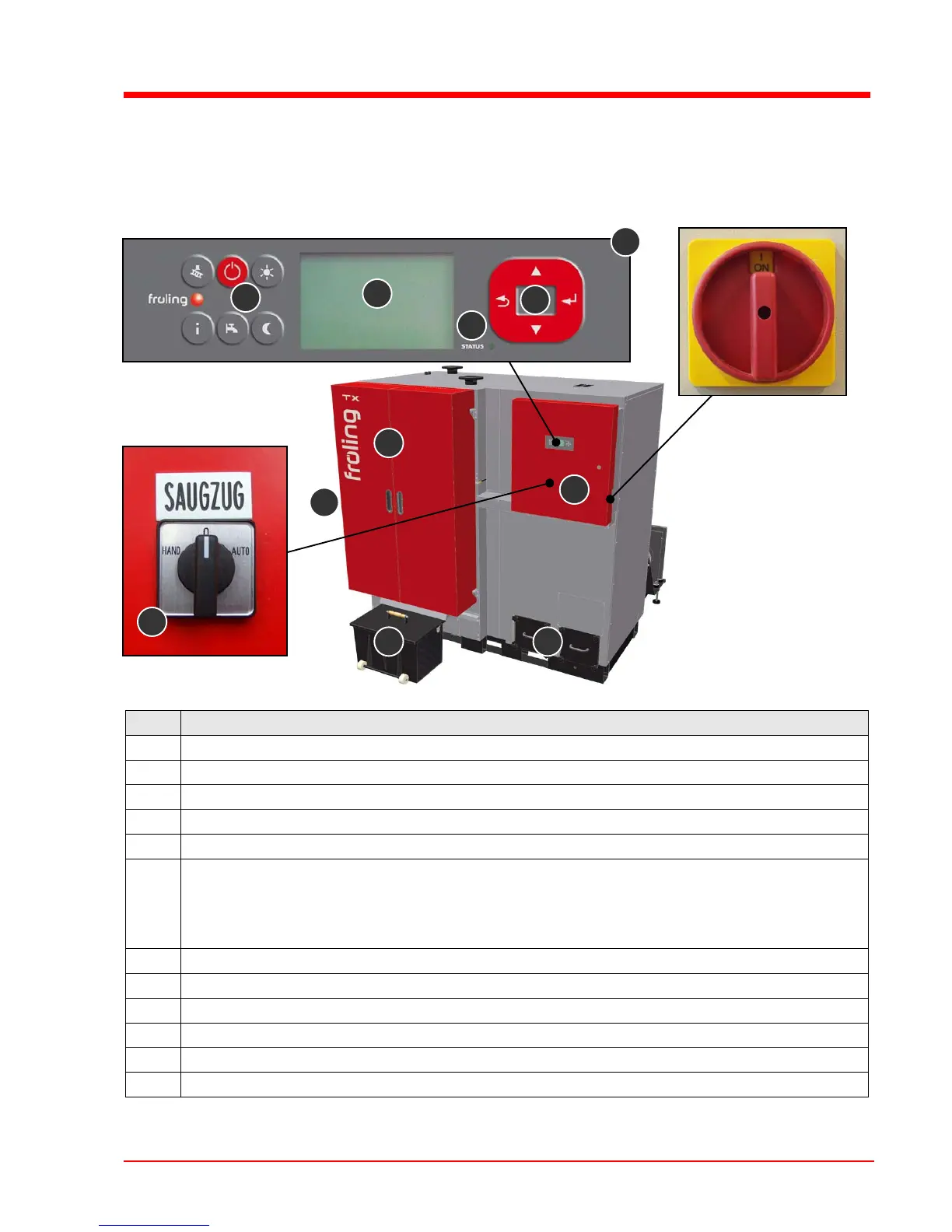

1.1 Product Overview
Pos. Description
1 Wood chip boiler - Fröling TX
2 Switch cabinet with integrated Lambdatronic H 3200 controller
2.1 Selector switch for induced draft fan
3 Main switch: switch the power supply on and off for the entire system
4 Control panel of the Lambdatronic H 3200 controller
4.1 Status LED (operating status)
- green lighting: boiler activated
- green flashing (5 seconds off, 1 second on): boiler deactivated
- orange flashing: warning
- red flashing: Fault
4.2 Large graphical display to show operating statuses and parameters
4.3 Navigation keys to move around in the menus and to change the parameter values
4.4 Function keys for calling up individual boiler functions or modes directly
5 Insulated door
6 Automatic ash removal ashcan
7 Ash removal unit or second ash box with automatic heat exchanger ash removal
3
2
1
6
5
7
TX 250 only:
2.1
4.2
4.1
4.3
4.4
4
