b. TP-601L
Ensure that the power
switch is turned off before
loading P.P. strap.
‧

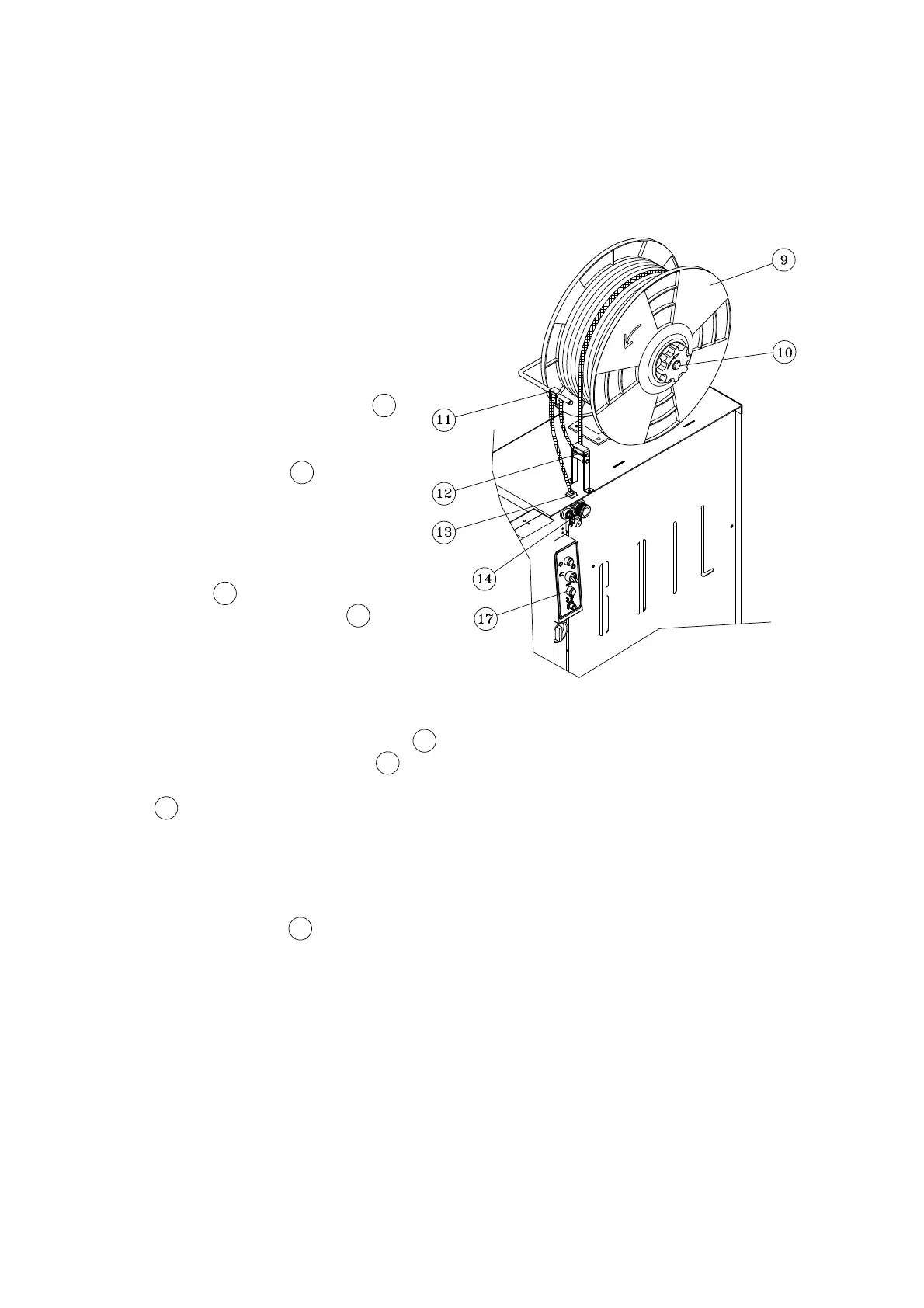

Place a strap coil on the reel drum in
according to the arrow direction as
indicated on the Reel Out Circular 9
.After placing it, put the Reel Out
Circular on the strap coil and tighten it
by the Reel Nut Handle 10 .
Thread the tip of P.P. strap into the Roller
Bracket Ass'y 12 . After that, thread it
through the Band Guide Roller 11 .
Turn on the power supply switch, and
then push Reset Switch 17 . After
about 4 seconds, the strap will
automatically go into the arch and pool.
Insert P.P. strap into Pool Feed Shooter 13
and turn Accumulator Main Roller 14 until
the P.P. strap about 1-2 cm beyond the Main
Roller 14 .
