-5-
3. Technical Data

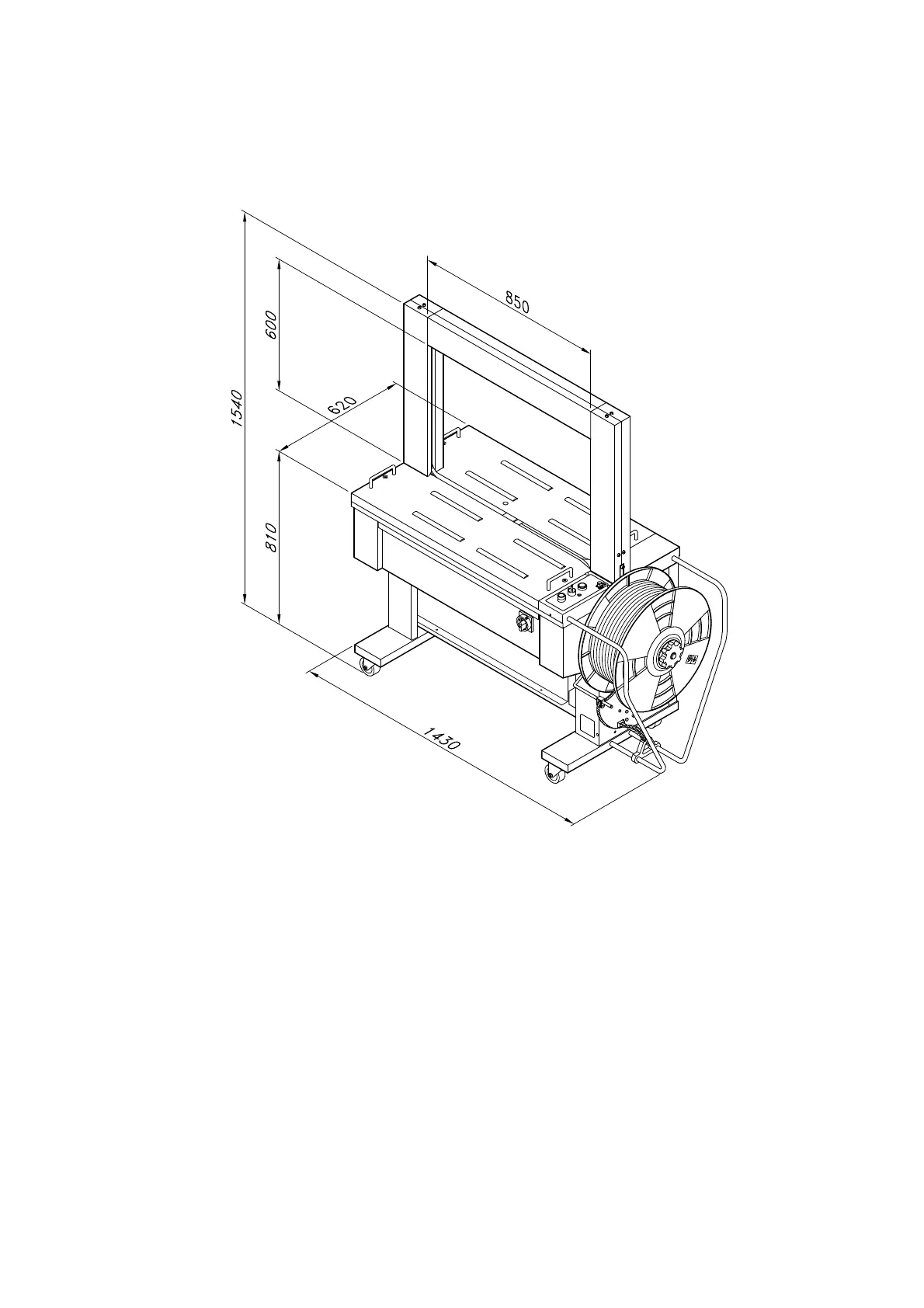

a. TP-601D
Sealing method Heat
Strap width:
Strap thickness:
Strap reel diameter:
Width :
Depth:
Table height:
Electrical connection:
8 mm to 12 mm (3/8" - 1/2")
0.55 mm up to 0.75 mm (0.022" - 0.03")
200 mm (8" nominal)
1430 mm (56.3")
620 mm (24.4")
810 mm (31.9")
AC 110V/220V/230V/240V (50/60Hz), 1PH
AC 220V/380V/400V (50/60Hz), 3PH
220 kg (341.7 lbs.)Weight:
83 dB (A)Noise emission:
5°C ~ 40°C (41°F ~ 104°F)Ambient temp:
