6. How to Load P.P. Strap
a. TP-601D
Ensure that the power
switch is turned off before
loading P.P. strap.
‧

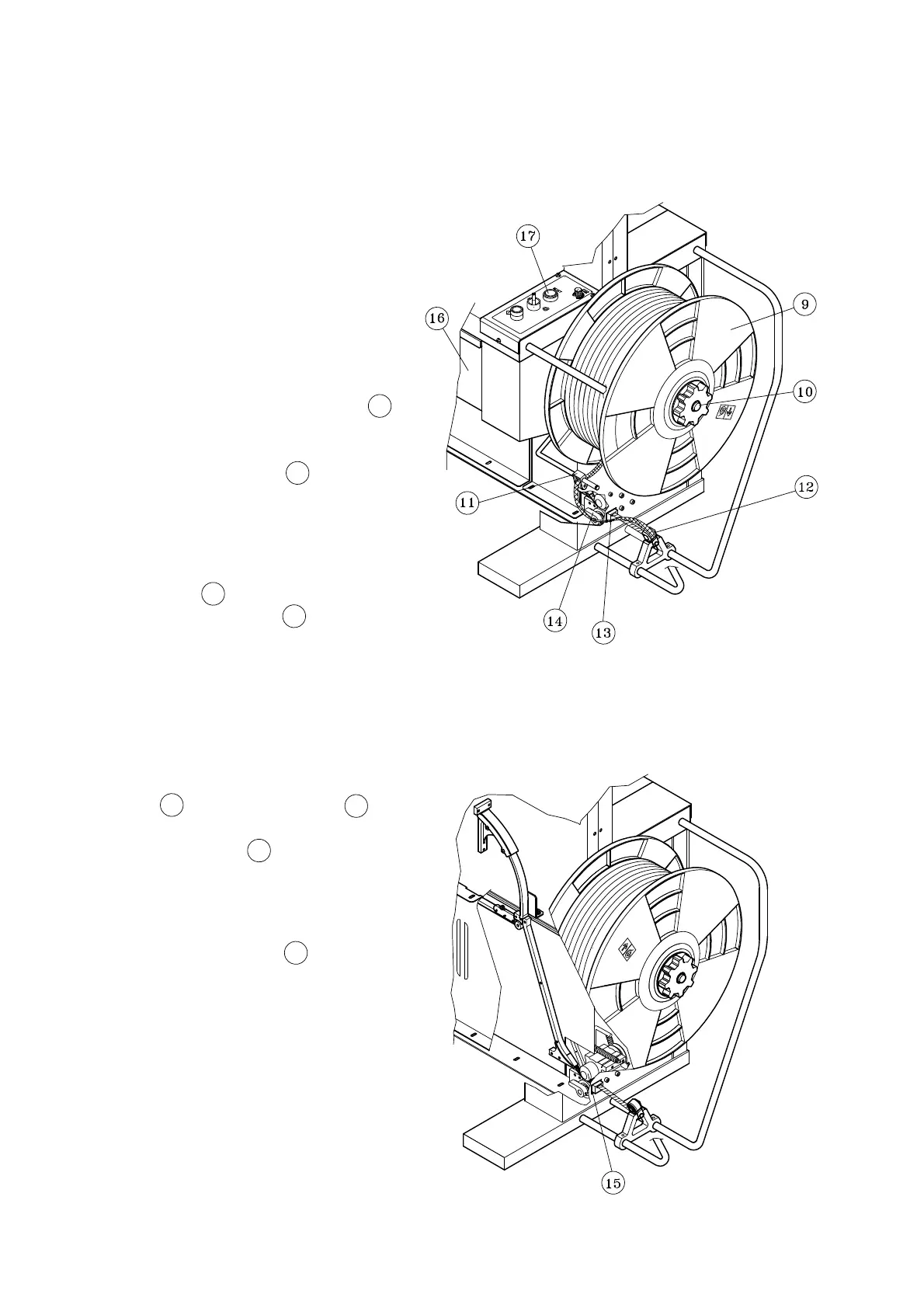

Place a strap coil on the reel drum in
according to the arrow direction as
indicated on the Reel Out Circular 9
.After placing it, put the Reel Out
Circular on the strap coil and tighten it
by the Reel Nut Handle 10 .
Thread the tip of P.P. strap into the Band
Guide Roller 11 . After that, push it
through the Free Angle 12 . At this
moment, twist the strap so that the inside
part of the P.P. strap turns out downward
and outside surface touches on the roller.
See the drawing.
Insert P.P. strap into the Pool Feed
Shooter 13 , pushing the lever 14
down and feed P.P. strap about 1-2 cm
beyond Pool rollor 15 .
Turn on the power supply switch, and
then push Reset Switch 17 . After
about 4 seconds, the strap will
automatically go into the arch and pool.
