Mode setup menu
General The Mode setup menu provides simple access to expert knowledge in the power source
and to additional functions. The Mode setup menu can be used to make simple adjust-
ments of the parameters to the various job settings.
The Process setup menu can be accessed using the Comfort, US, TIME 5000 Digital
and CMT control panels.
Mode setup menu
for the Comfort,
US, TIME 5000
Digital and CMT
control panels
Setting the Mode parameters is described by reference to "Special 4-step" mode. The
procedure for changing other Mode parameters is identical.

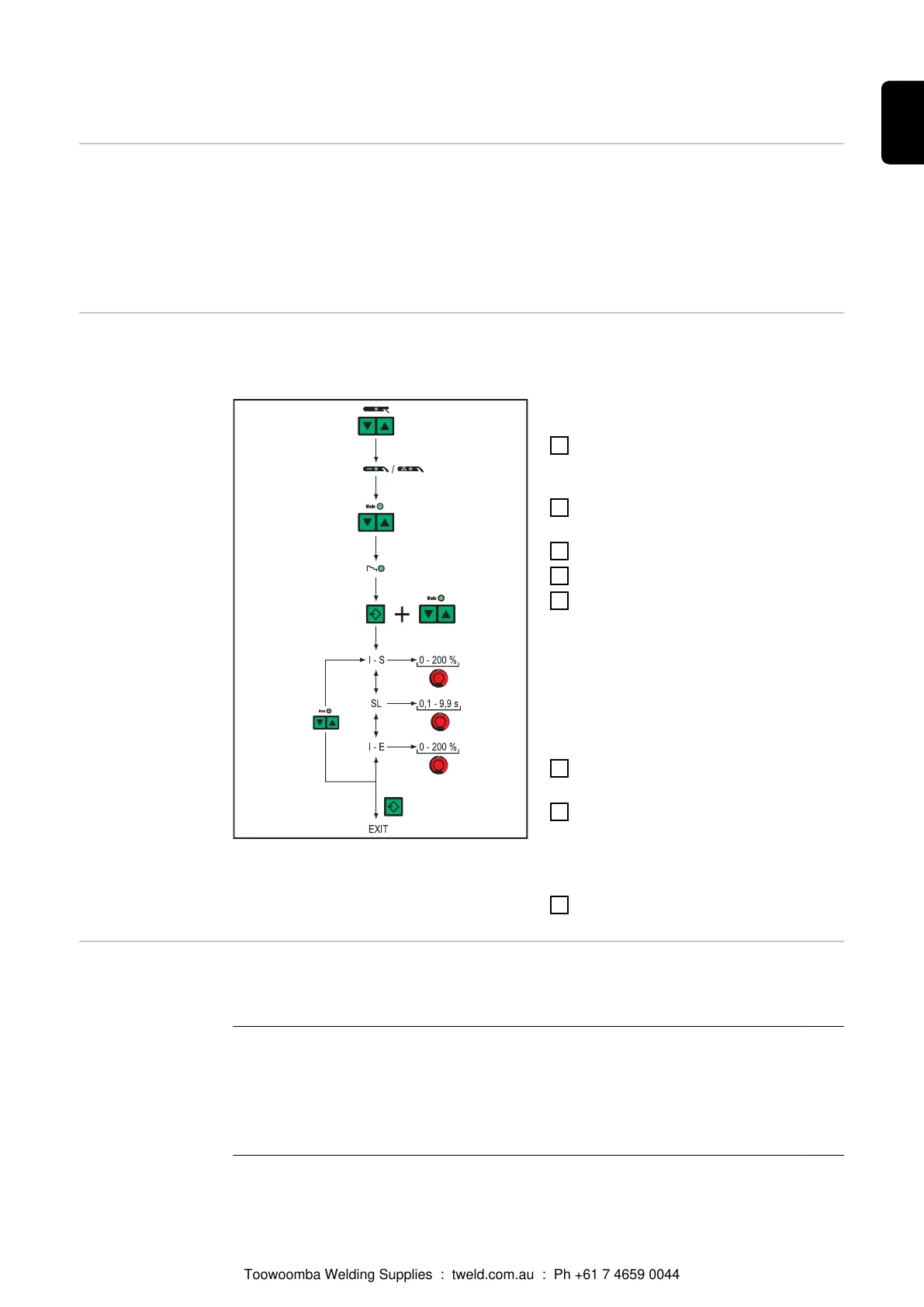

Mode setup menu: Overview
Enter the Mode setup menu
1
Use the Process button to select
MIG/MAG standard synergic welding
or MIG/MAG pulse synergic welding
2
Use the Mode button to select “Spe-
cial 4-step” mode
3
Press and hold the Store button
4
Press the Mode button
5
Release the Store button
The power source is now in the setup
menu for “Special 4-step" mode - the
last parameter that was called is dis-
played.
Changing welding parameters
4
Use the Mode button to select the
desired parameter
5
Use the adjusting dial to change the
parameter value
Exiting the Setup menu
6
Press the Store button
Welding paramet-
ers for "Special
2-step mode" in
the Mode setup
menu
"Minimum" and "maximum" are used for setting ranges that differ according to power
source, wire-feed unit, welding program, etc.
I-S
I (current) - Starting current
Unit % (of starting current)
Setting range 0 - 200
Factory setting 135
149
