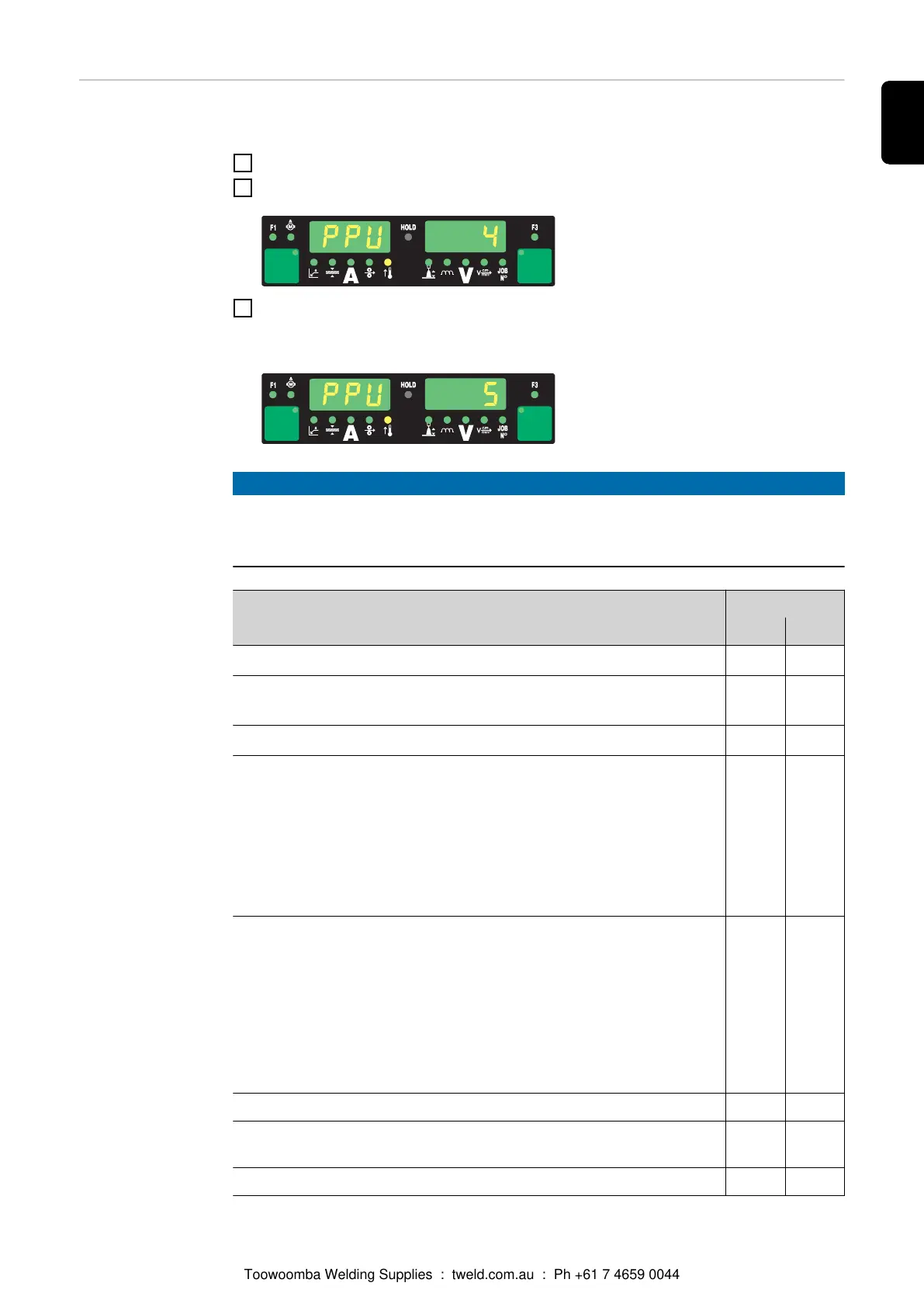

Calibrating the
push-pull unit
For an overview of the error messages that may occur during calibration of the push-pull
unit, please refer to "Service codes for push-pull calibration".
1
Open the Set-up menu level 2 (2nd)
2
Select parameter PPU
3
Select the corresponding push-pull unit from the list:
- using the adjusting dial
- using the Mode button on the Standard control panel
NOTE!
The types of push-pull unit that can be selected depend upon the control board fit-
ted in the wire-feed unit.
The control board designation can be found in the spare parts list for the wire-feed unit.
PC board
No. Push-pull unit SR41 SR43
0
Fronius unreeling device "VR 1530-22“ 22 m/min / 865 ipm
1)
x
1 Fronius unreeling device “VR 1530-30” 30 m/min / 1180 ipm
(value displayed on the digital display: 1.18)
1)
x
2
Fronius robot push-pull "KD Drive“ 10 m/min / 393.70 ipm
1)
x x
3
Fronius robot push-pull “Robacta Drive” (Master control)
1)
Use with long torch hosepacks of 3.5 - 8 m (11 ft. 5.80 in. - 26
ft. 2.96 in.) in conjunction with a short lead from the wirespool,
welding wire drum or large wire-feed unit spool to the wire-feed
unit of 1.5 - 3 m (4 ft. 11.06 in. - 9 ft. 10.11 in.)
Recommended feed rollers: 4 x half-round slot
x x
4 Fronius robot push-pull “Robacta Drive” (slave control)
Application:
- with short torch hosepacks of 1.5 - 3.5 m (4ft. 11.06 in. -
9 ft. 10.11 in.) in conjunction with a long lead from the
wirespool, welding wire drum or large wire-feed unit
spool to wire-feed unit of 3 - 10 m (9 ft. 10.11 in. - 32 ft.
9.70 in.)
- in SynchroPulse mode
x x
5 Fronius manual push-pull “PullMig” with power potentiometer x x
6 Fronius manual push-pull “PullMig” without power poten-
tiometer
x x
7 Binzel manual push-pull 42 V with power potentiometer x
163
EN
