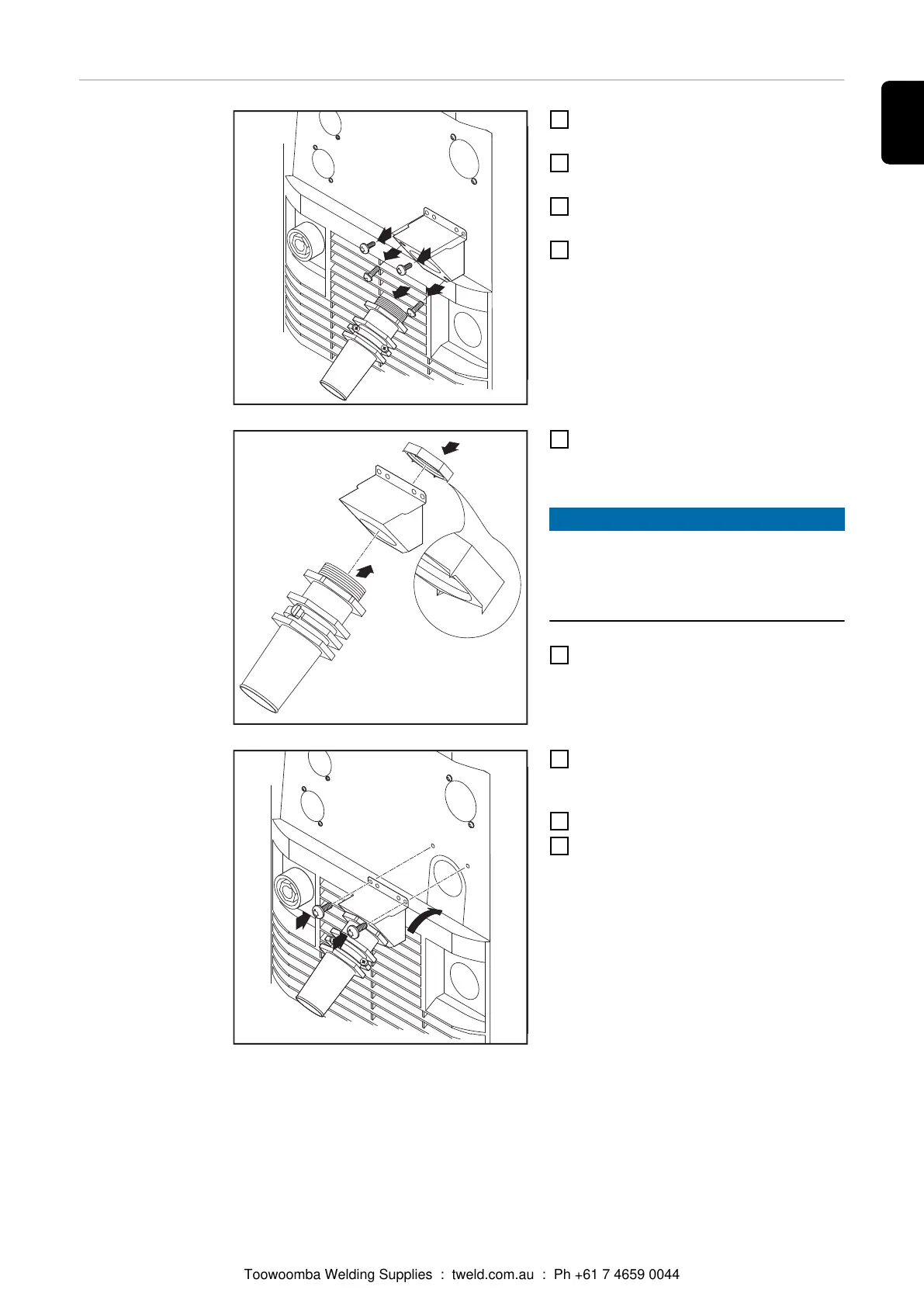

Fronius CMT 4000 Advanced User Manual

Replacing the
strain-relief
device
2
3
2
4
4
1
Remove the left side panel of the
power source
2
Remove the screws (2 x) from the
existing strain-relief device
3
Pull the existing strain-relief device
forwards to detach it
4
Remove the screws for the adapter
plate, and remove the adapter plate
5
Insert the hexagon nut (size 50 mm)
into the holding plate
NOTE!
To ensure a reliable earth connection to
the housing of the power source, the
points on the hexagon nut must be
facing the holding plate.
6
Screw the front of the large strain-
relief device into the hexagon nut (size
50 mm). The hexagon nut (size 50
mm) now bites into the holding plate.
6
7
7
7
Slot the large strain-relief device into
the housing and fasten it with 2
screws
8
Connect the mains cable
9
Re-fit the left side panel of the power
source
79
EN
