1
TX 20
1,3 - 1,5 Nm
BAT+
BAT-
8

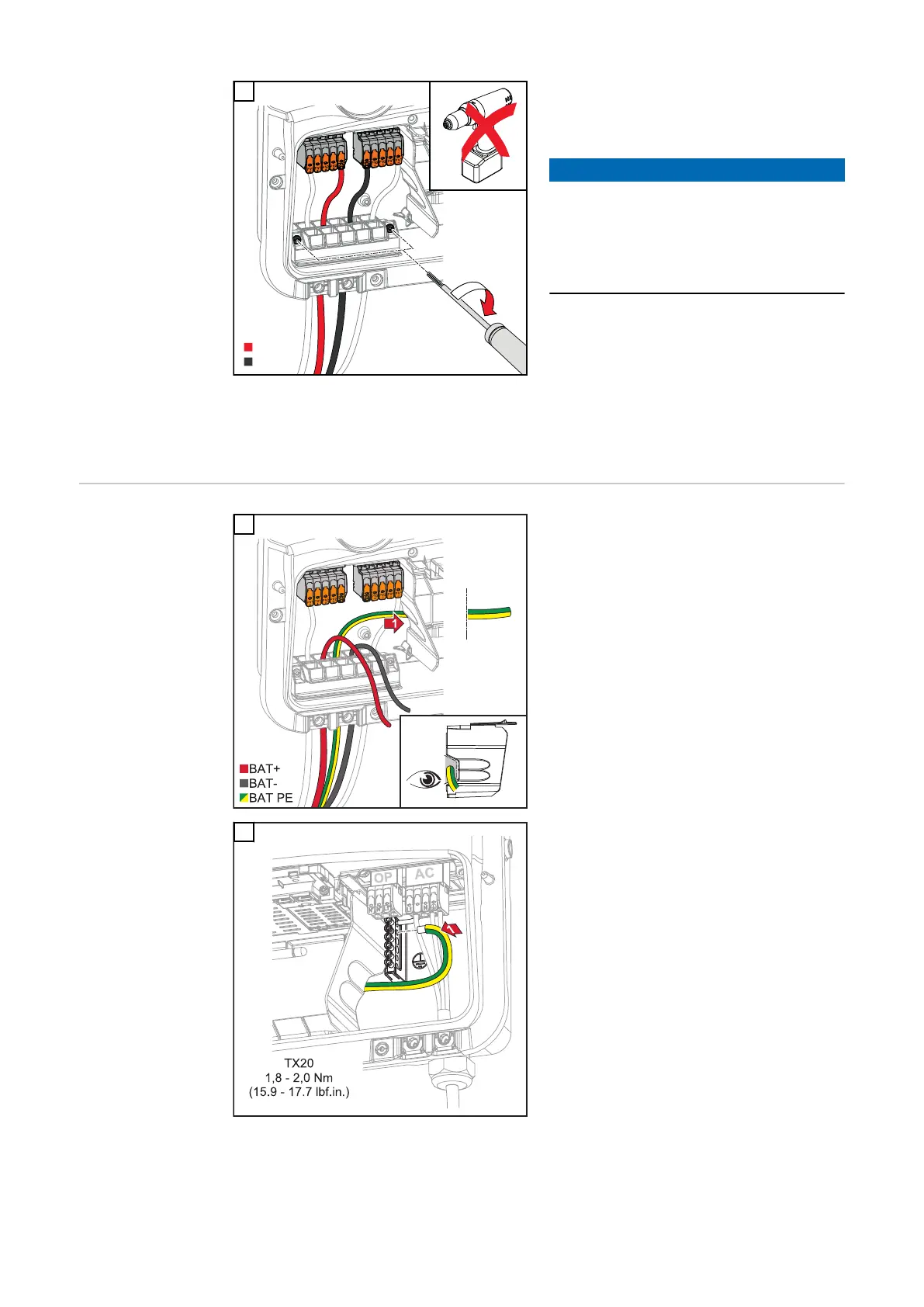

Fasten the screws of the cable guide to
the housing using a screwdriver (TX20)
and a torque of 1.3-1.5 Nm.
NOTE!
Risk due to overtorque on the strain
relief.
This may result in damage to the
strain-relief device.
▶
Do not use a drill driver.
IMPORTANT!
Information for connection on the battery side can be found in the Installation
Instructions from the relevant manufacturer.
Connecting the
LG RESU FLEX
ground conduct-
or
1
Route the battery ground conductor in
the integrated cable duct of the con-
nection area divider into the AC con-
nection area.
2
Fasten the battery ground conductor
to the second input of the ground
electrode terminal from above using a
screwdriver (TX20) and a torque of
1.8-2 Nm.
IMPORTANT!
Information for connection on the battery side can be found in the Installation
Instructions from the relevant manufacturer.
84
