4

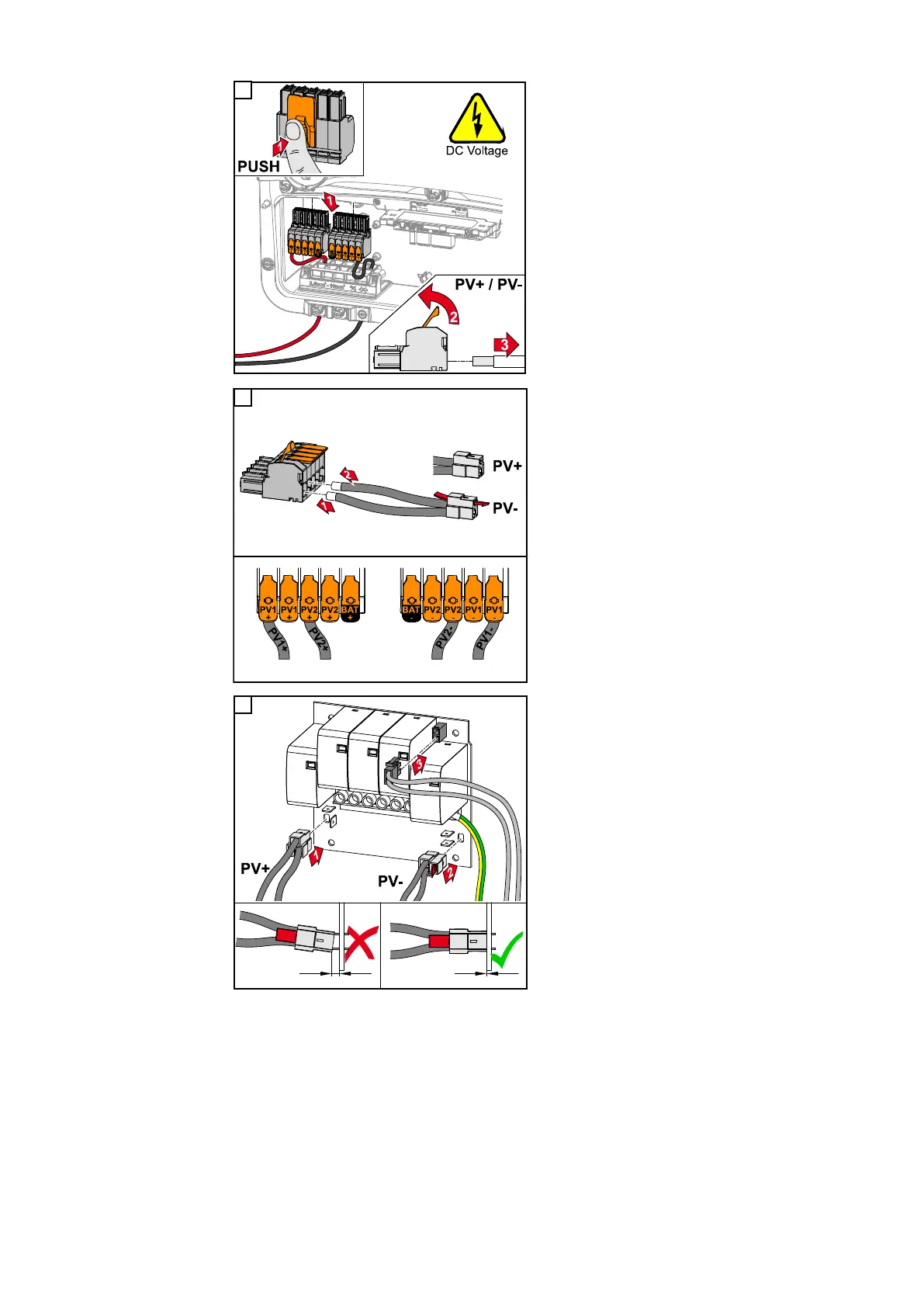

Remove the DC push-in terminals from the
slots and disconnect them from the cables
(only necessary if the installation already
exists).
5
Connect the supplied PV+/PV- cables to
the respective connections.
IMPORTANT!
Note the labelling of the cables when con-
necting.
6
Connect the supplied cables to the
respective connectors on the PC board.
IMPORTANT!
The plugs must be connected onto the PC
board as far as they will go.
