Fronius Primo GEN24 3.0 - Page 141

1
WSD
13

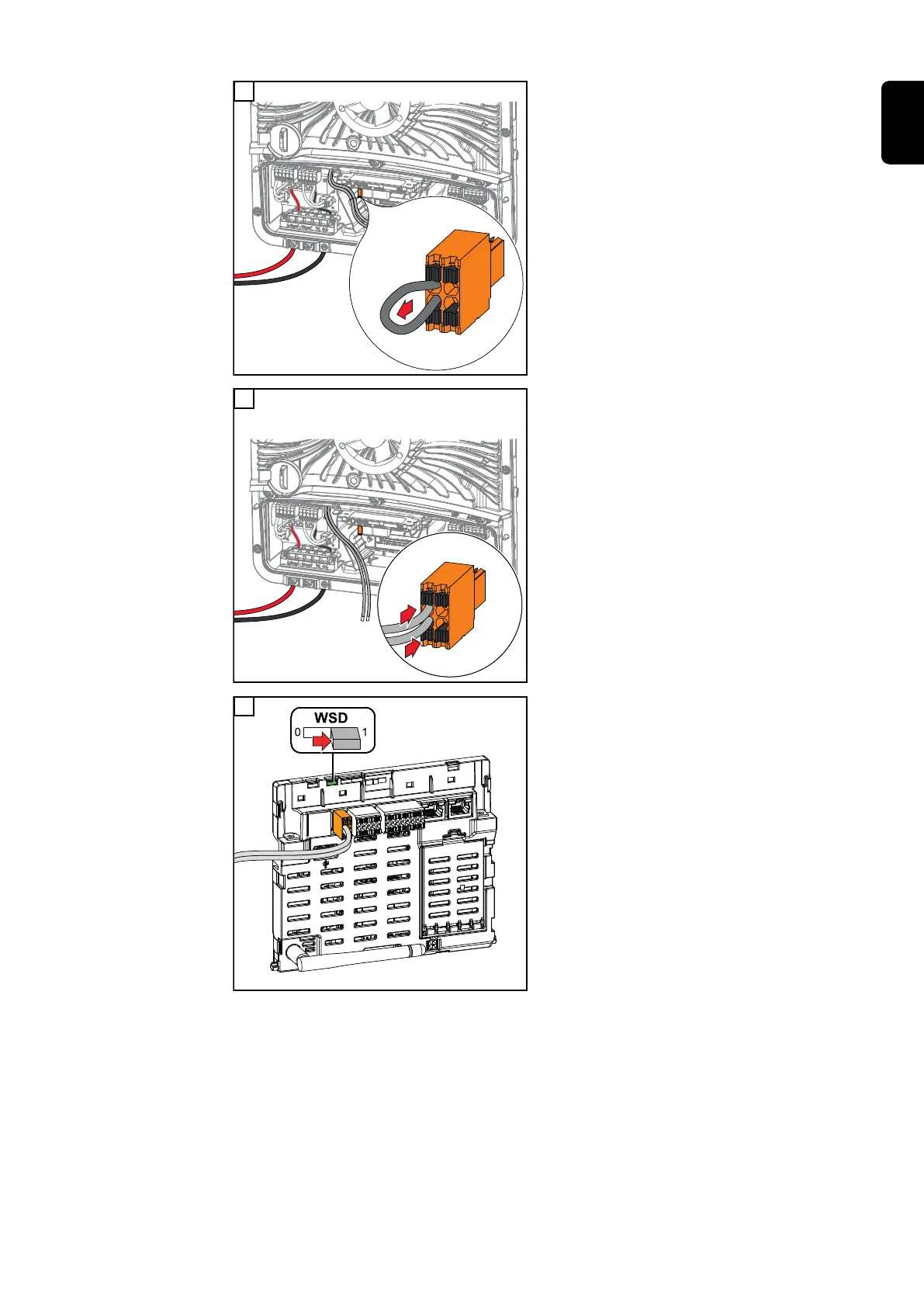

Remove the factory installed bypass
on the push-in WSD terminal.
1
2
IN- & IN+
14
Connect the signal cable to the push-
in WSD terminal on the IN- and IN+
slots, observing the labelling.
15
Check whether the WSD switch is in
position 1, adjust if necessary (factory
setting: position 1).
141
EN
