WARNING!
An electric shock can be fatal.
Danger due to grid voltage and DC voltage from solar modules that are exposed
to light.
▶
Ensure that the AC and DC side of the inverter are de-energised before car-
rying out any connection/maintenance or service tasks.
▶
Only an authorised electrical engineer is permitted to connect this equip-
ment to the public grid.
WARNING!
Danger due to damaged and/or contaminated terminals.
This can result in serious injury and damage to property.
▶
Before making any connections, check the terminals for damage and con-
tamination.
▶
Remove contamination in the de-energized state.
▶
Have defective terminals repaired by an authorised specialist.
PV generator -
general informa-
tion
2 independent PV inputs (PV 1 and PV 2) are available. These can be connected
to a different number of modules.
When using for the first time, set up the PV generator according to the respect-
ive configuration (also possible later in the “System configuration” menu under
the “Components” menu item).

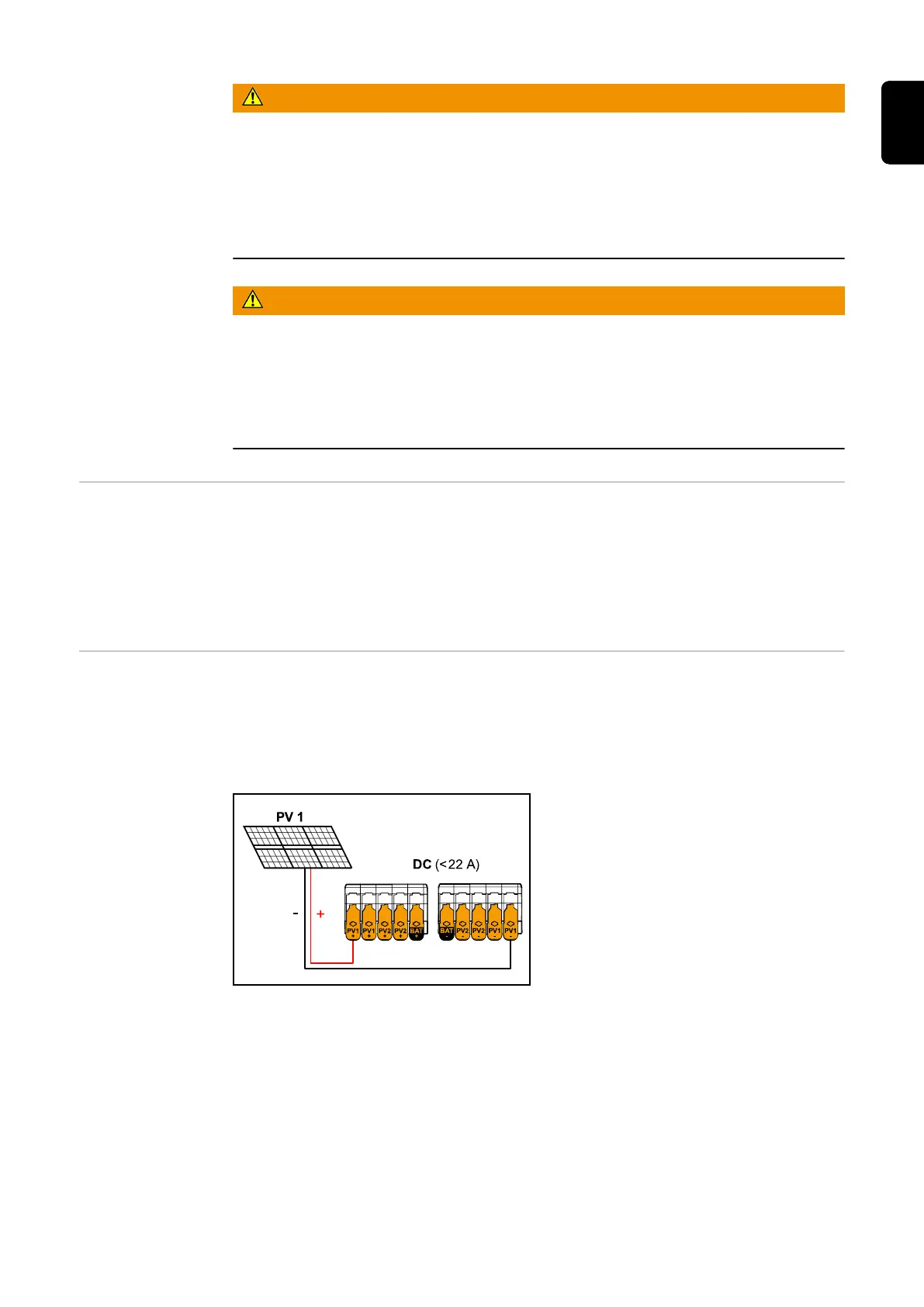

PV generator
configuration
3 ‑ 6 kW
IMPORTANT!
The installation must be carried out in accordance with the nationally applicable
standards and directives. If the arc detection integrated in the inverter is used
for the requirement according to IEC 63027 for arc detection, the solar module
strings must not be combined upstream of the inverter.
Total current (I
dcmax
) less than 22 A
MPPT settings:
PV 1: ON
PV 2: OFF
69
EN
