Fronius Symo 15.0-3 208 - Page 45

5
10.0-3 - 12.0-3 208-240
U
DC max
0 - 11154 ft.
(0 - 3400 m)
ft. (m)
600 V
1000 V
0 - 6561 ft.
(0 - 2000 m)
> 8202 - 9842 ft.
(> 2500 - 3000 m)
> 6561 - 8202 ft.
(> 2000 - 2500 m)
> 9842 - 11154 ft.
(> 3000 - 3400 m)
950 V
900 V
850 V
U
DC max
ft. (m)
10.0-3 - 24.0-3 480
6
If DC cables are laid over the shaft of
the DC main switch or across the DC
main switch connection block, the
cables may be damaged when the in-
verter is pivoted or the inverter may
not be able to be pivoted.

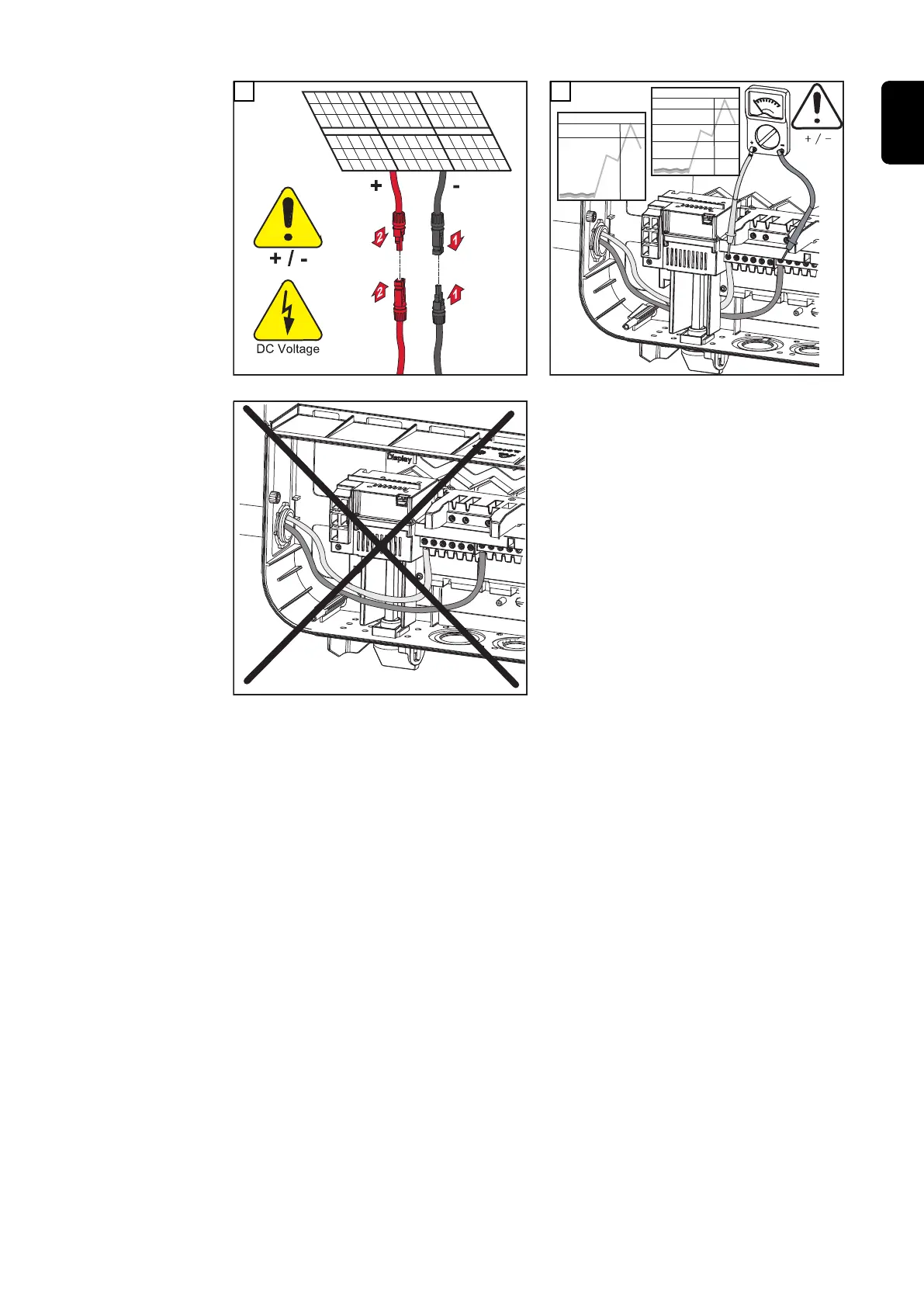

IMPORTANT! Do not lay DC cables
over the shaft of the DC main switch
or across the DC main switch connec-
tion block!
