28

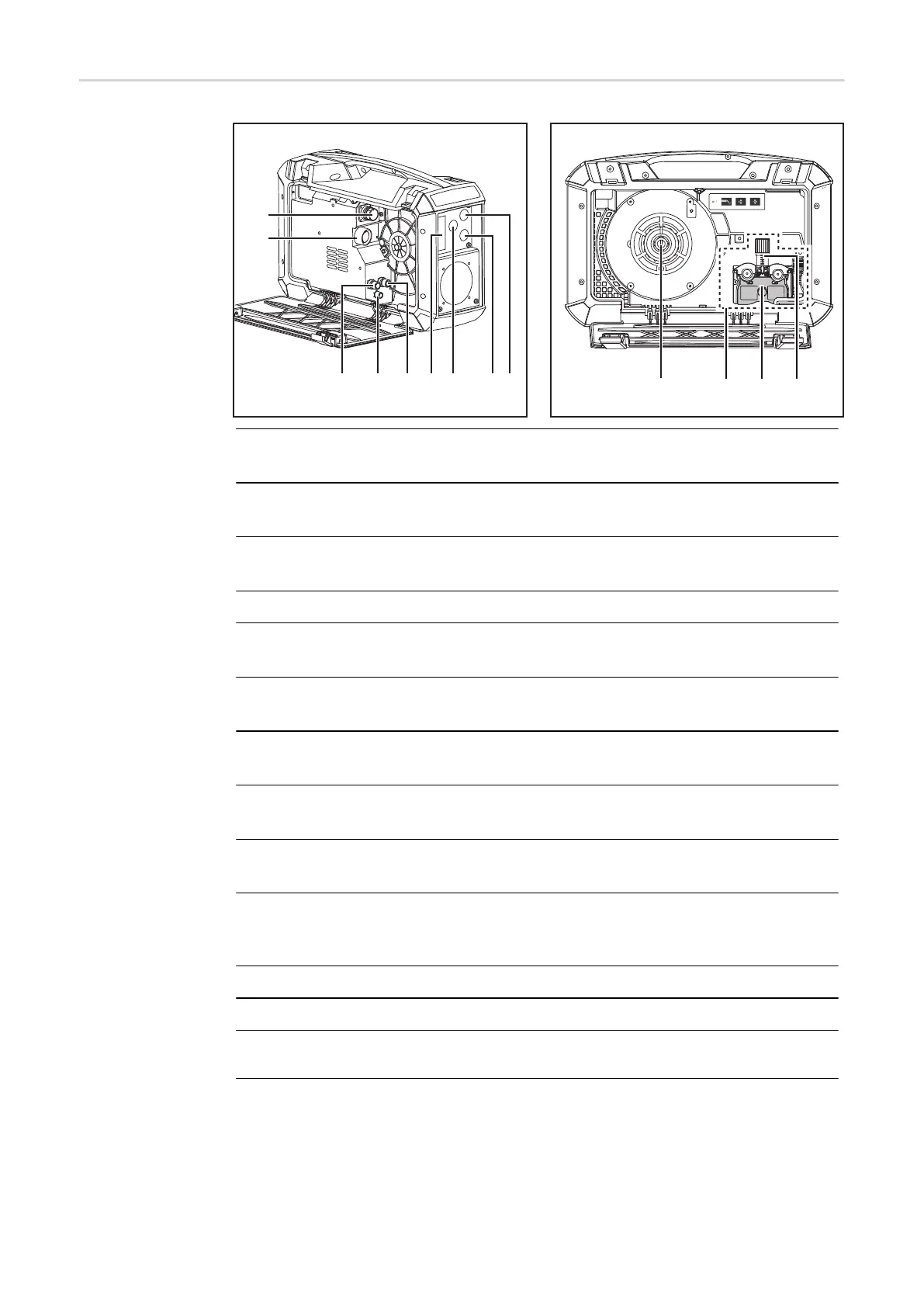

Wire-feed unit
side
(1) SpeedNet connection
for connecting the SpeedNet cable from the interconnecting hosepack
(2) (+) - current socket with fine-pitch thread
for connecting the power cable from the interconnecting hosepack
(3) Coolant return connection (red) - option
for connecting the coolant hose from the interconnecting hosepack
(4) Shielding gas connection
(5) Coolant flow connection (blue) - option
for connecting the coolant hose from the interconnecting hosepack
(6) Blanking cover
for optional gas flow meter
(7) Blanking cover
for optional component
(8) Blanking cover
for optional component
(9) Blanking cover
for optional component
(10) Wirespool holder with brake
for holding standard wirespools with a max. diameter of 200 mm (7.87 in.) and
max. weight of 5 kg (11.02 lb.)
(11) 4-roller drive
(12) Protective cover for the 4-roller drive
(13) Clamping lever
for setting the contact pressure of the feed rollers
(1)
(2)
(3) (4) (5) (6)
(7) (8)(9)
(12)(11) (13)
(10)
