WF 25i Case D300 controls, connections and me-

chanical components

Safety

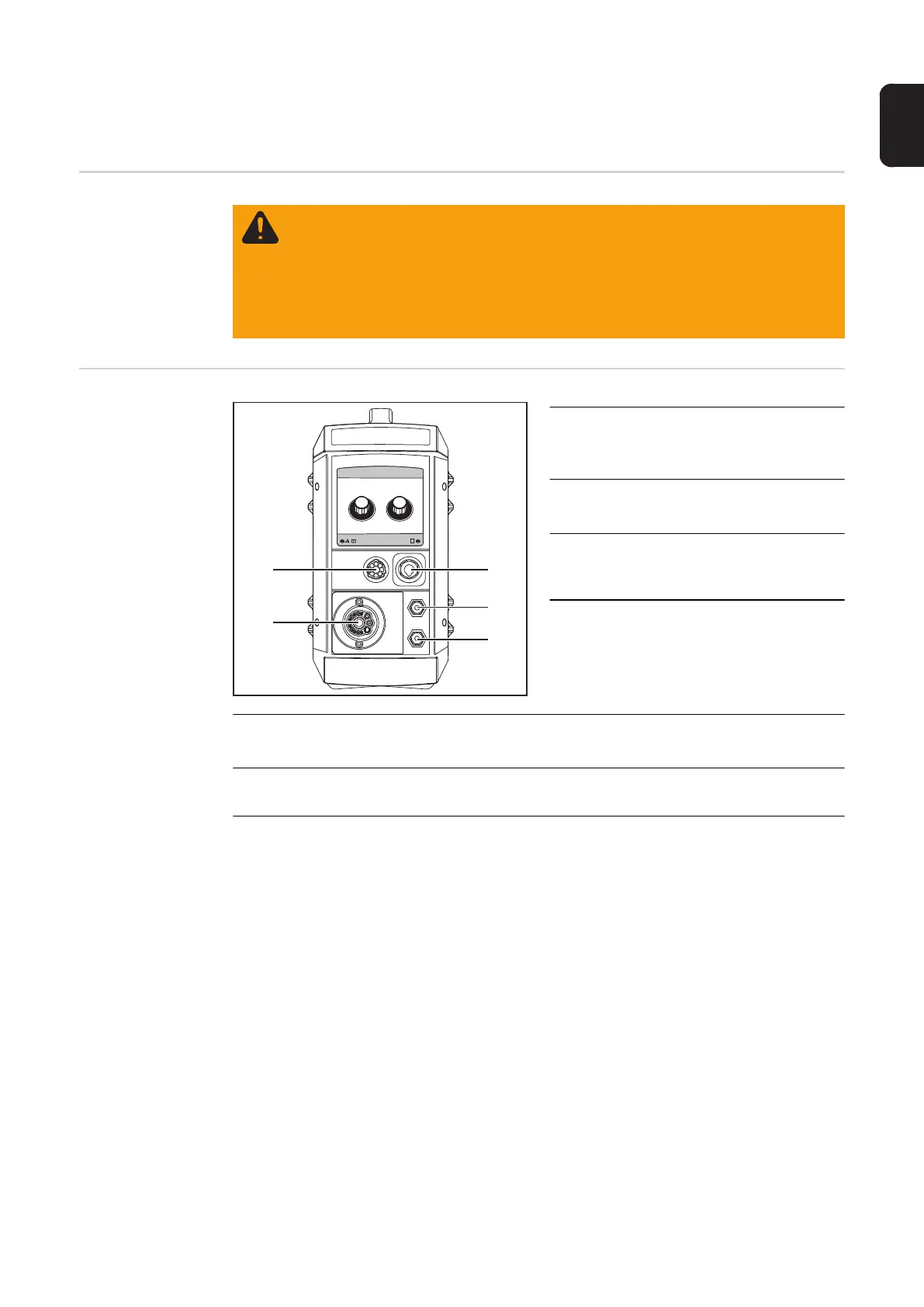

Front of wire-feed

unit

(1) SpeedNet connection - option

for connecting optional components

(for example, a remote control)

(2) Welding torch connection

for connecting the welding torch

(3) (+) - current socket with bayonet

latch - option

for connecting the electrode holder

(4) Coolant return connection (red) - option

for connecting the coolant hose from the torch hosepack

(5) Coolant flow connection (blue) - option

for connecting the coolant hose from the torch hosepack

WARNING! Operating the equipment incorrectly can cause serious injury and

damage. All the functions described may only be used by trained and qualified

personnel. Do not use the functions described until you have thoroughly read and

understood the following documents:

- this document

- all the operating instructions for the system components, especially the safe-

ty rules

(1)

(4)

(3)

(5)

(2)
