4-33

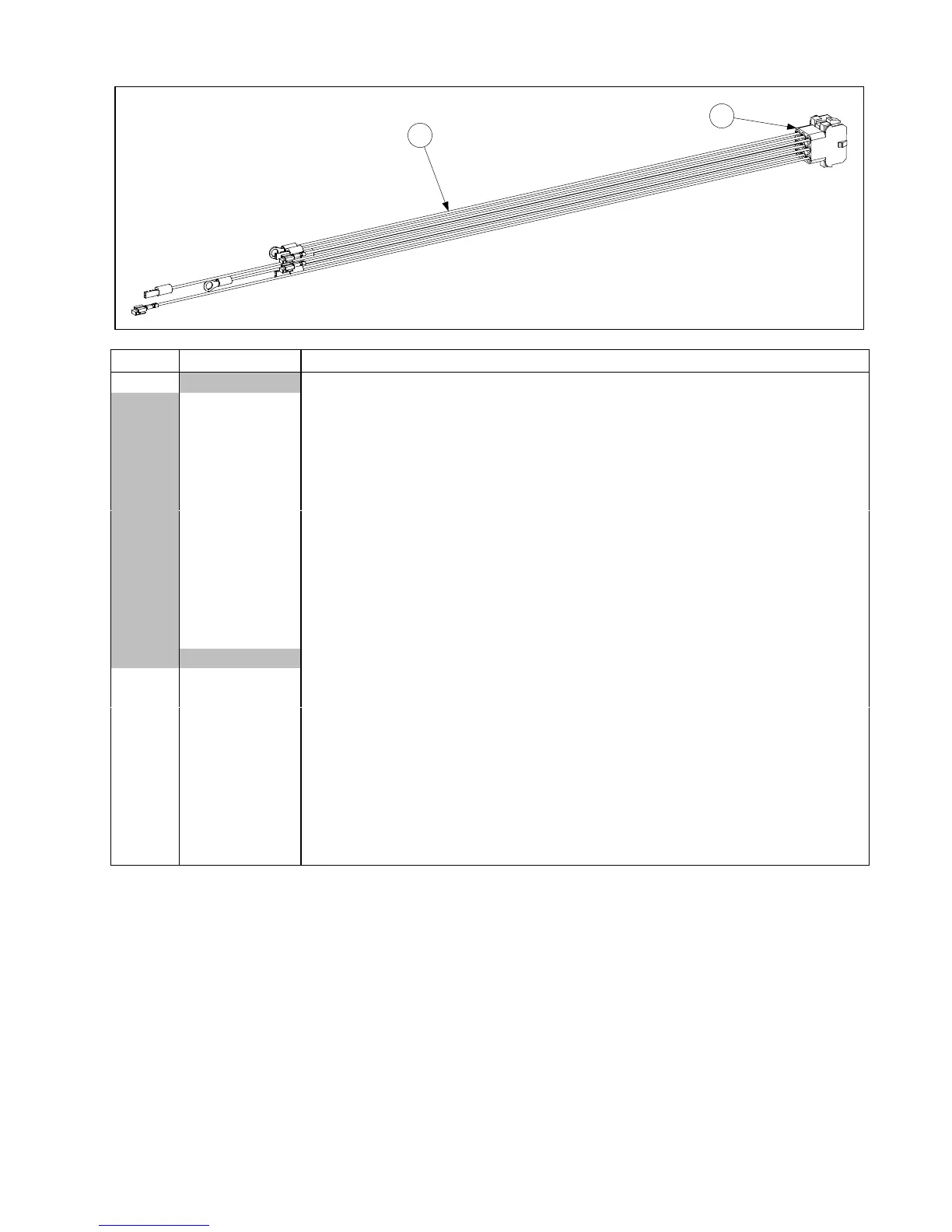

Transformer Box Wiring
806-8706 BIH252/MH252
Left Position (U.S. and Non-CE Export)
(Typical)
1
2
ITEM PART # COMPONENT
1 Plug and Wire Assembly, Transformer Box 9-Pin Female
806-6077 MH152 (U.S. and Non-CE Export)
806-6597 MH152 (CE)
806-8706SP BIH252/MH252, Left Position (U.S. and Non-CE Export)
806-8707SP BIH252/MH252, Right Position (U.S. and Non-CE Export)
806-8719 BIH252/MH252, Right Position (CE)
806-8720 BIH252/MH252, Left Position (CE)
806-8708SP
1
BIH352/MH352, Left Front Position (U.S. and Non-CE Export)
806-8709SP
2
BIH352/MH352, Left Rear Position (U.S. and Non-CE Export)
806-8710SP
3
BIH352/MH352, Right Position (U.S. and Non-CE Export)
806-8718
4
BIH352/MH352, Right Position (CE)
806-8721
5
BIH352/MH352, Left Front Position (CE)
806-8722
6
BIH352/MH352, Left Rear Position (CE)
806-8723SP BIH452/MH452, Right Front Position (CE)
Internal Wiring Bundles
2 807-0156 9-pin connector
* WIR0288 100-240V BIH152 (U.S., CE, and Non-CE Export)
* WIR0109 100-240V MH152 (U.S. and Non-CE Export)
* WIR0100SP
7
100-240V BIH252/MH252 (U.S. and Non-CE Export)
* WIR0101SP
8
100-240V BIH352/MH352 (U.S. and Non-CE Export)
* WIR0102SP 100-240V BIH452/MH452 (U.S. and Non-CE Export)
* WIR0144 230V MH152 (CE)
* WIR0141
9
230V BIH252/MH252 (CE)
* WIR0142
10
230V BIH352/MH352 (CE)
* WIR0143 230V BIH452/MH452 (CE)
* Not illustrated.
NOTES:
1. Also used in Left Front Position of BIH452/MH452 (U.S. and Non-CE Export)
2. Also used in Left Rear Position of BIH452/MH452 (U.S. and Non-CE Export)
3. Also used in Right Rear Position of BIH452/MH452 (U.S. and Non-CE Export)
4. Also used in Right Rear Position of BIH452/MH452 (CE)
5. Also used in Left Front Position of BIH452/MH452 (CE)
6. Also used in Left Rear Position of BIH452/MH452 (CE)
7. Also used in BIH552 (U.S. and Non-CE Export)
8. Also used in BIH552 (U.S. and Non-CE Export)
9. Also used in BIH552 (CE)
10. Also used in BIH552 (CE)
