Frymaster BIH52 Series - Wiring

4-31
4.4.5 Wiring

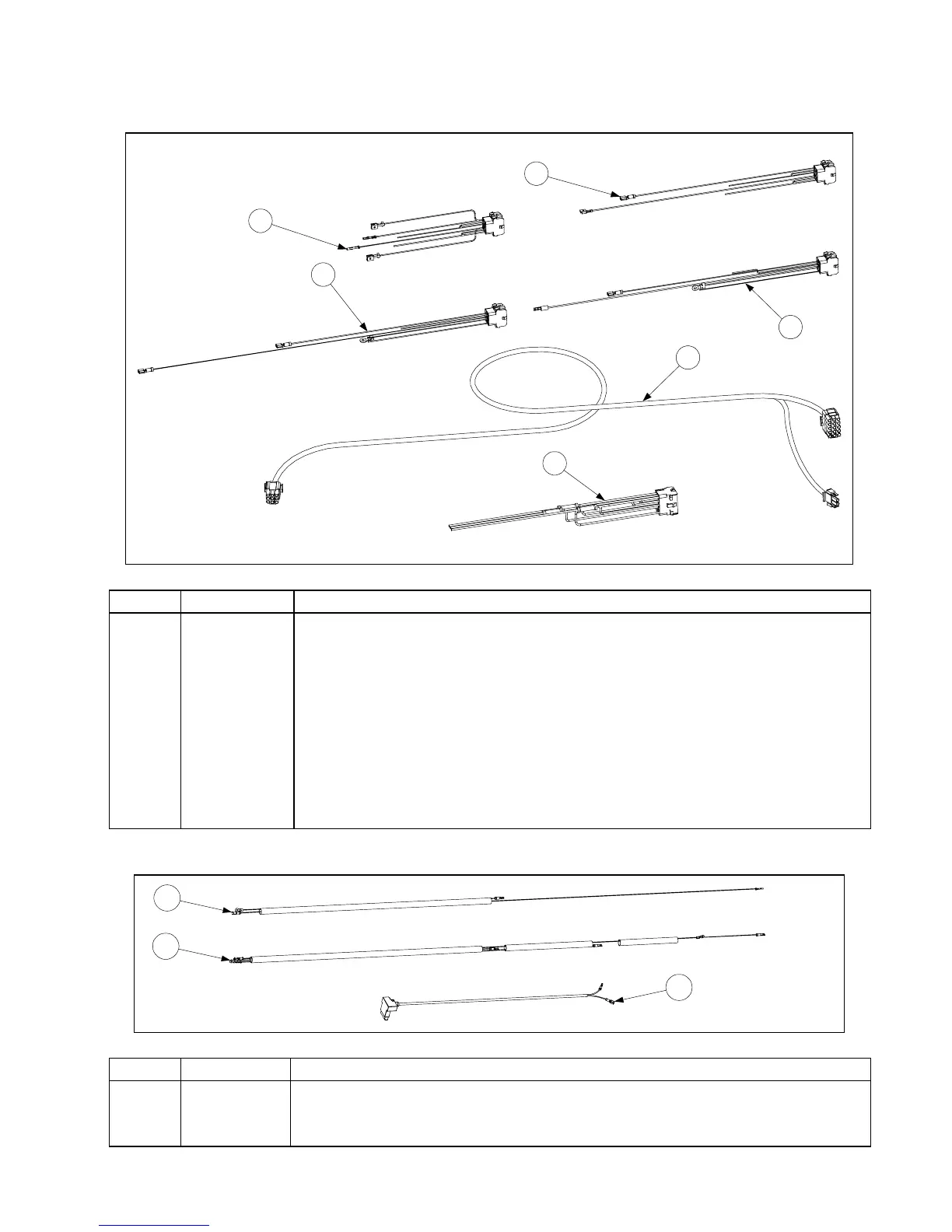

Filter Box Wiring
1
2
3
4
5
6
ITEM PART # COMPONENT
1 806-8021SP 120V U.S. and 100/120V Non-CE Export Upper 9-Pin Plug Assembly
2 806-7494SP 120V U.S. Lower 9-Pin Plug Assembly
3 806-6725SP 230V CE Upper 9-Pin Plug Assembly
4 806-6719SP 100/120V Non-CE Export and 230V CE Lower 9-Pin Plug Assembly
5 810-1062 Cable, Filter Box Lower 9-Pin Plug to 807-2001 15-Pin (C2) Connector
6 807-2001 Cable, 810-1062 C2 Connector to Filter Terminal Block
* 806-6728SP Pump Motor to Filter Box Wiring Assembly
* 810-0366 Strain Relief 9-pin
* WIR0287SP 120V U.S. Filter Box Internal Wiring
* WIR0233SP 100-250V CE and Non-CE Export Filter Box Internal Wiring
* Not illustrated.
Gas Valve Wiring
1
2
3
ITEM PART # COMPONENT
1 806-3941SP Harness, Full Vat Gas Valve
2 806-3940SP Harness, Dual Vat Gas Valve
3 806-9678SP Plug Assembly, CE Gas Valve
