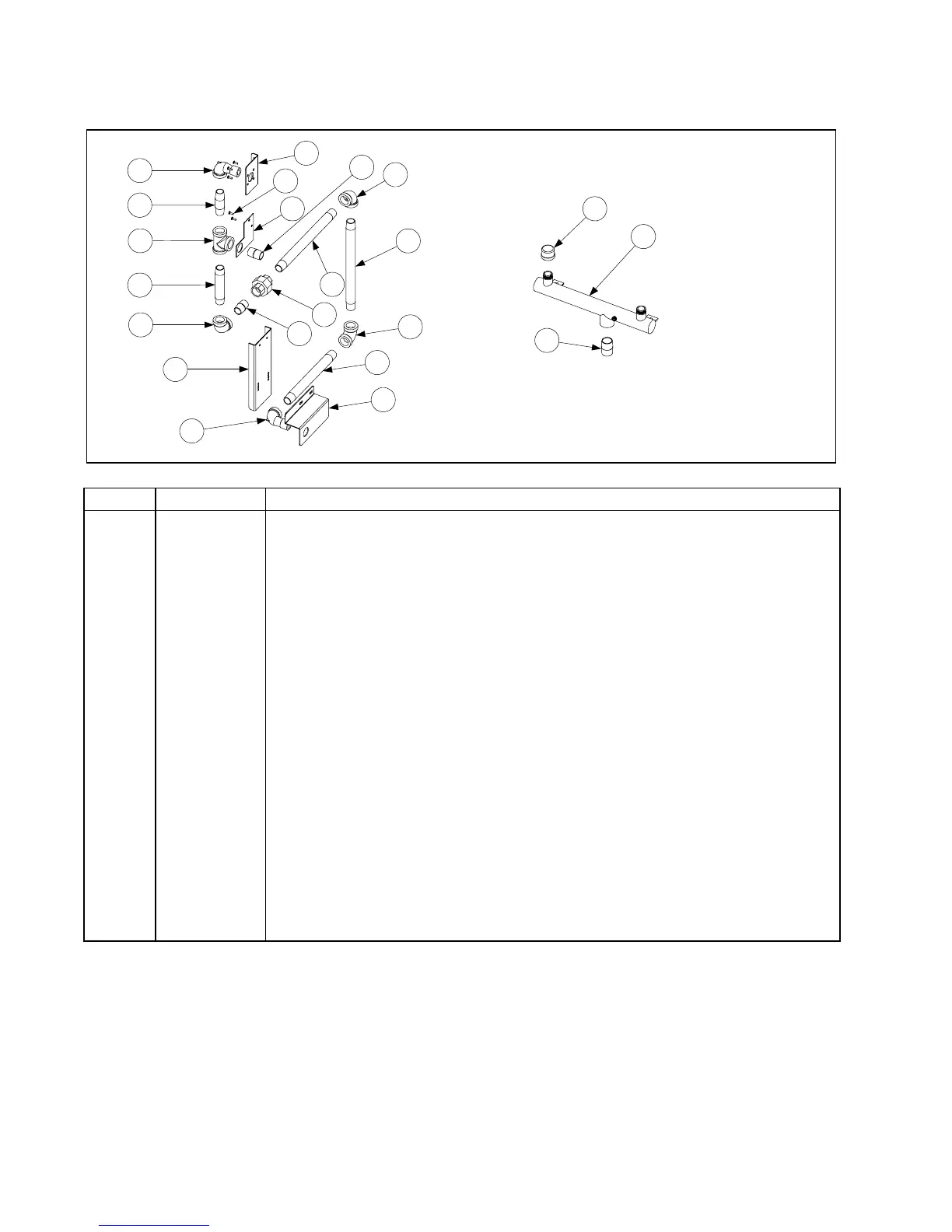

4.3.5 Gas Manifolds – Single BIH52/MH52 Units
BIH152 Manifold
1
2
3
4
5
7
8
9
10
5
12
10
6
11
13
5
1
14
15
1-piece MH152 Manifold
16
17
18
ITEM PART # COMPONENT
1 813-0165 Elbow, ½-inch NPT Street x 90º
2 813-0265 Nipple, ½-inch NPT x 2½-inch
3 813-0003 Tee, ½-inch NPT
4 813-0093 Nipple, ½-inch NPT x 4-inch
5 813-0062 Elbow, ½-inch NPT x 90º
6 900-5616 Mount, BIH152 Gas Line
7 900-5596 Mount, Valve Plate (used with Non-CE Gas Valves 810-0801/0802 only)
8 809-0107 Screw, 8-32 x ⅜-inch Slotted Round Head
9 900-8740 Mount, Valve Plate (used with CE Gas Valve 810-1715 only)
10 813-0022 Nipple, ½-inch NPT Close
11 813-0173 Union, ½-inch NPT
12 813-0496 Nipple, ½-inch NPT x 9.5-inch
13 813-0253 Nipple, ½-inch NPT x 10-inch
14 813-0320 Nipple, ½-inch NPT x 8-inch
15 900-5615 Support, BIH152 Gas Line
16 810-0959 Manifold, MH152 1-piece Gas
17 813-0469 Cap, ½-inch NPT Pipe (closes off unused port in full vat configurations)
18 813-0109 Nipple, ¾-inch NPT Close
* 810-0478 Dormont Hose Assembly
* 810-1425 Fitting, ½-inch Quick Disconnect x ½-inch Female NPT
