4.2.2 BIH52 Cabinet Components (Batteries) cont.
ITEM PART # COMPONENT
900-2391 BIH452
900-9557 BIH552
30 900-7710 Post, Cabinet (all models)
31 900-7358 Divider, Cabinet (all models)
32 Post, Short Door
900-4797 All non-CE models.
900-2437 All CE models.
33 900-4799 Post, Long Door (BIH352, BIH452 and BIH552)
* 809-0413 Spacer, Door Post (1/4-inch ID x 4mm nylon washer)
* Not illustrated.

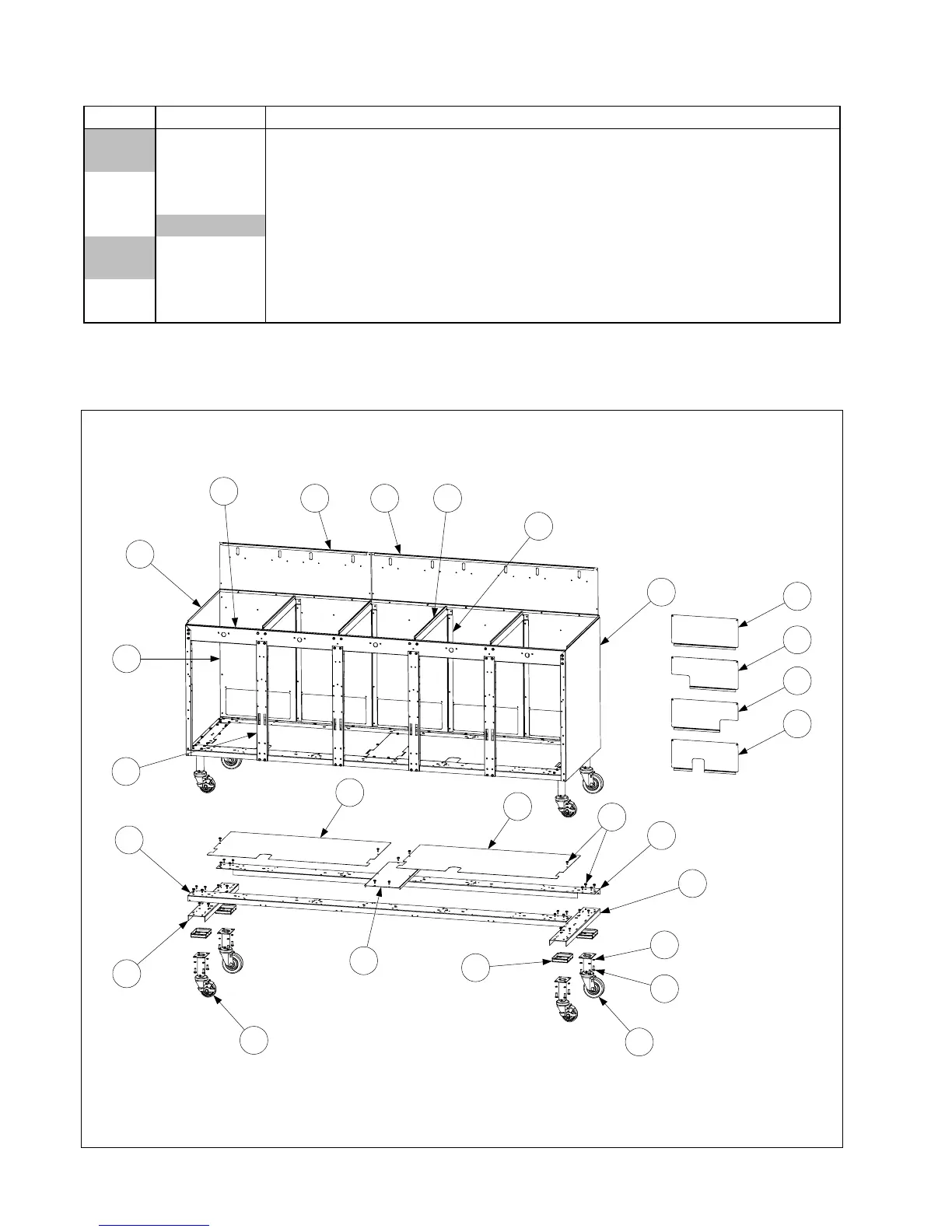

4.2.3 MH52 Cabinet Components (Batteries)
NOTE: MH52 cabinetry was standardized with BIH52 cabinetry beginning with units manufactured 6
November 2000 and later. All MH52 cabinetry components except base assembly parts on units
manufactured after 6 November 2000 are the same as those on BIH52 units of the same size.
Detail of Base
Assembly Construction
1
2
3
6
8
9
7
10
4 5
11
11
10
12
13
13
14
15
16
17
18
23
19
20
21
22
